Microwave with Grill Function 23L

User Manual

SY-MW50G

Table of Contents

Need help?

Do you have a question about the SY-MW50G and is the answer not in the manual?

Questions and answers

Summary of Contents for Sytech SY-MW50G

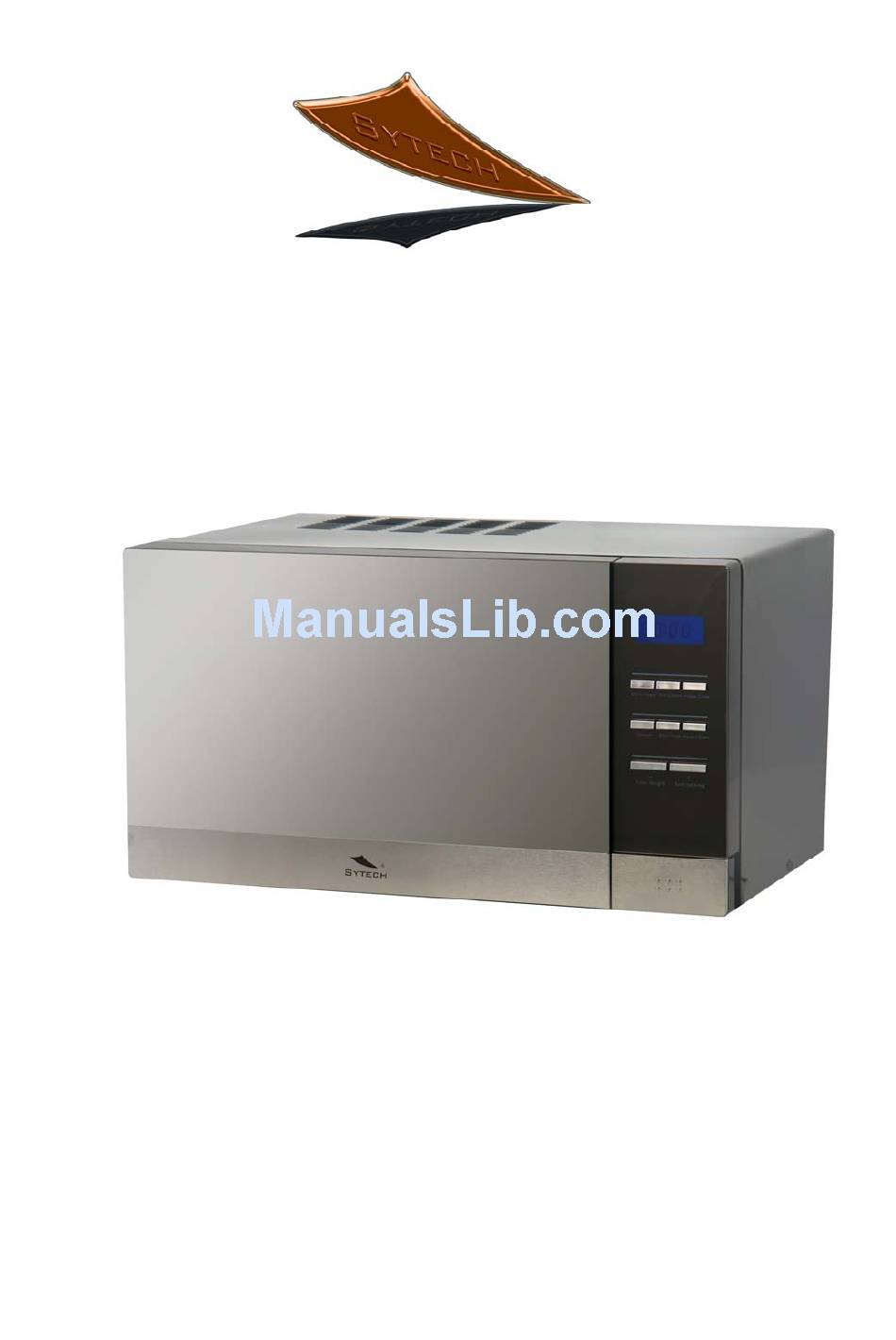

Page 1 Microwave with Grill Function 23L User Manual SY-MW50G...
Page 2: Installation
WELCOME Thank you for having purchased the SY-MW50G Microwave Oven with Grill. Please read the instructions carefully in order to get the most out of your new product. Store the user manual in a safe place for future reference. INSTALLATION 1.
Page 3: Before First Use
FIXING THE DISTANCE LIMITER BEFORE FIRST USE Due to the possible presence of manufacturing residue or oil in the oven cavity or on the heating element, a possible odor might exist including some smoke; this is a normal situation and will not occur after having used the product several times.
Page 4 Do not operate the microwave oven any further until it has been repaired by a qualified person 6. If the supply cord is damaged, contact Sytech Service Centre. 7. If the container becomes very hot after cooking, use gloves to handle it.
Page 5: Product Description
30. Device Group 2 Class B This device is a Group 2 because it intentionally produced the radio frequency energy to treat the material and is intended to be used in a local home or a facility connected directly to the distribution of electricity at low voltage supplying domestic premises (Class B).
Page 6: Control Panel
2. Control panel Select grill and combi menu Set power level Set clock Select Auto defrost menu Start Stop cooking(press once) or clea r settings(press twice) Select cooking time or weight during cooking Select Auto cooking menu 3、LED instruction and display when the power level begin set or used POWER...
Page 7: Function And Operation Method
Function and Operation method When the unit has been plugged in the LED display screen will flash 3 times. The “:” continues to flash prompting you to input the cooking menu and time. Set the time accordingly as once it has been set it does not need to be reset even if the door is opened during cooking.
Page 8 100% microwave power. Suitable for quick and thorough High power cooking Medium 80% microwave power. Suitable for medium express High power cooking Medium 60% microwave power. Suitable for steaming food power Medium 40% microwave power. Suitable for defrosting food Low power 20% microwave power.
Page 9: Grill/Microwave Combination Cooking
You may change the cooking time during the cooking process using the + or – buttons. It is recommended to turn the food at some point during the cooking process for a better and even heating/cooking. Press the Instant/Start button once again to continue after turning the food. 4.
Page 10 For defrosting meat; weight range from 0.1 to 2.0 kg. For defrosting poultry; weight range from 0.2 to 3.0kg. For defrosting seafood; weight range from 0.1 to 0.9kg. a. It is necessary to turn over the food during operation to obtain a uniform effect. b.
Page 11: Auto Cooking
6. Auto cooking The SY-MW50G has an auto cooking menu for easy operation. When the LED display flashes the colon, press the Auto Cook button and the LED display screen will cycle to show A.1, A.2 all the way till A.8.
Page 12: Automatic Starting (Delayed Function)
LED display will indicate the remaining time. 7. Automatic starting (delayed function) The SY-MW50G allows you to preset the cooking style and time at which it should begin. The setting consists of 2 simple steps: 1. Setting the current time;...
Page 13 Example: Now it is 12:30pm, and wish for the microwave to begin cooking automatically with 100P microwave power for 9 minutes and 30 seconds at 14:20. Buttons Display ： When the plug has been plugged in and the microwave turns on the colon flashes. 00:00 Press the Preset Clock button 12:00...
Page 14: Multi-Sequence Cooking
8. Multi-sequence cooking To obtain the best cooking results, some recipes call for different cooking styles and times. You may program your personalized menu as shown below: Example: You want to cook a dish with 100P microwave power during 3 minutes and then at 20P microwave power for 9 minutes more.
Page 15: Child Lock Function
9. Child lock function Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are inoperable in this mode Buttons Display Press and hold the Stop/Clear button for set lock about 3 seconds.
Page 16: Cooking Tips
COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards the outer part of the dish and the thinner part towards the centre and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, check to see if the food has been heated as desired or not.
Page 17 3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 4. The oven should be cleaned regularly and any food deposits should be removed. 5.
Page 18 5. Is the water inside the oven hot? – If the water placed has not heated, check to see whether your power level settings are correct. If none of the above resolves the situation, please contact Sytech Service Centre for service and repair. DO NOT under any circumstances try to repair or adjust the microwave oven by yourself as this is highly dangerous.
Page 19: Specifications
It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. Liquids or other foods must not be heated in sealed containers since they are liable to explode;...
Page 20 Address: Pol. Ind. La Raya. C/ Guadalquivir, 2. Camarma de Esteruelas, 28816 Madrid Tel: 902 430 967 Fax: 91 8864285 NIF: B83254763 Manufacturing country: China Sytech® SY-MW50G complies with the following directives: CE standard:EMC Directive 2004/108/EC EN 55011:2007+A2 :2007 EN 55014-1:2006 EN 61000-3-2:2006 EN 61000-3-3:2008...
