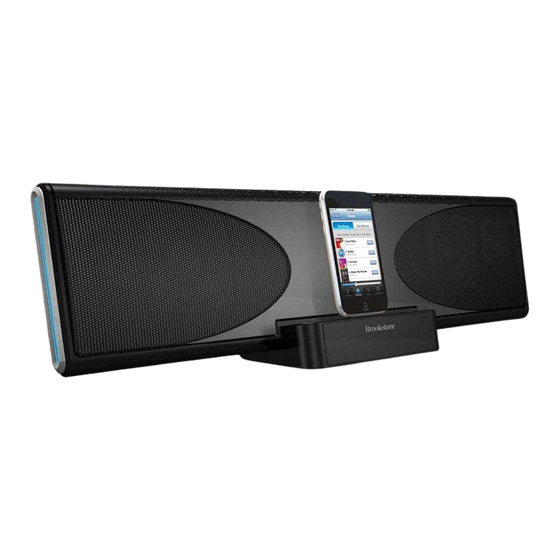

- Page 1 User Manual Product Name: iCraft@RF Model Number: PF240RF...
- Page 2 Development History Date Version Purpose Change 26 Aug 09 Draft Based on PF240 v.1.3 28 Aug 09 Updated Update No Key activity on Remote = 5 Mins Update the Operation Flow Update the Menu Flow Update the Key & Jack Assignment drawing Add the Tune ON Speaker by Remote Flow Update the Key and Switch Configuration Update the Volume bar will overlap the content...
-
Page 3: Product Overview
1. PRODUCT OVERVIEW 1.1. Critical Success Factor: 1) Performance and Feature: i) Great Sound Performance – Similar to the provided acoustic Sample ii) Wireless Remote Control with LCD display – Similar to PF405 2) Material Cost: Must be below US$ 30.00 3) Outlook 4) Schedule (MP: Jan 2009) 1.2. -
Page 4: Configurable Options
2. CONFIGURABLE OPTIONS 2.1. Factory Configurable Options: Configurable Option Original version Parameter a) FM (PLL) Digital Radio Yes / No b) Facelift Cloth Plastic Metal Net 2.2. Consideration of each option a. FM (PLL) Digital Radio i) Advantage / Usage: Adding Built-in FM antenna cable at the back Adding FM Radio Section on the Main Menu on the RF Remote\ Adding the Reset button at the back... - Page 5 3.5 mm stereo Jack for AUX-1 RCA (R & L) Jacks for AUX -2 Component Video RCA output Terminal (Color: Green (Y), Blue (P ), Red (P Composite Video RCA output Terminal (Color: Yellow) DC Jack 3.5mm Centre-positive 3.4. Switches: Standby (On/Off) button (Tact Switch at Main Panel) Volume up (Tact Switch at Main Panel) iii.
-
Page 7: Electrical Specification
4. ELECTRICAL SPECIFICATION 4.1. Audio Requirement: Benchmark: Philips DC910 (only for reference) Driver configuration: 1 x 50mm full range driver + 1 x 75mm Woofer driver + 118 x 92 mm Passive Radiator / Channel RMS Output: 15W + 15W (Total: 30W RMS); same in DC Hum Noise level (in Operation mode –... - Page 8 vii. Pervious Track (for iPod) 。 Long Press Fast Backward viii. Volume up ix. Volume down 4.3. Power Requirement: Adaptor powered Always provide at least 500mA for iPod Charging, when Power Adaptor attached 4.4. Adaptor Requirement: Wall mount Fixed Plug Switching Power Adaptor Output Rating: 18V 1.5A Input Rating: 110~220VAC iPod touch and iPhone compatible (refer to iPod Document)
- Page 9 4.5. Compatibility (iPod) iPod 4 Generation (iPod with video) iPod Classic (80G, 120G and 160G) iPod nano 3 Generation iPod nano 4 Generation iPod Touch iPod Touch 2G iPhone 2G iPhone 3G iPhone 3Gs 4.6. Operation Mode and Sequence: See the below Definition and State Diagram for your reference Short Key Press: Pressed the Key (on unit or remote) snappily, less than 2s Long Key Press:...
- Page 10 EQ setting: Press “EQ” button to select the Preset EQ settings or select the “Speaker Setting” in Main Menu 5x Preset EQ Settings (Pop Jazz Rock Flat Movie) repetitively First Power up default setting = Pop...
- Page 17 5. DESIGN 5.1. ID: See Below Rendering (Reference Only, ID will be updated) 5.2. Color Specification: Black versions 5.3. Material and Finishing: Cloth Grill, High Gloss Finishing (Similar to iPod touch (edge) finishing) 5.4. Illustration of button / connector (back diagram) label...
- Page 19 6. RELIABILITY 6.1. General Operating Temperature: 0 - 45 ºC 6.2. General storage temperature: -20 - 65 ºC 6.3. Heat Storage test: 98.5 hours with Temp Cycling 6.4. General Humidity test: 90% (Operating @ 45 ºC) 6.5. Vibration test: 0.75 mm, 13Hz to 25Hz, 3 axis, 30 mins 6.6.
- Page 20 ^ Operating Test ^ Storage Test 7. STANDARDS AND APPROVALS “Work With iPhone” Certificate Compliance 8. PACKAGING (Not include into the Engineering Quotation)
- Page 21 Packing method Number of inner carton: 2 pcs / inner Number of outer carton: 6 pcs / outer 9. Packing Content Main Unit (PF240RF) Power Adaptor RF Remote Control with Color LCD 2x AAA Battery Optional (Below items are NOT included in Engineering Quotation): 3.5mm Stereo Cable (0.4M)
- Page 22 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
