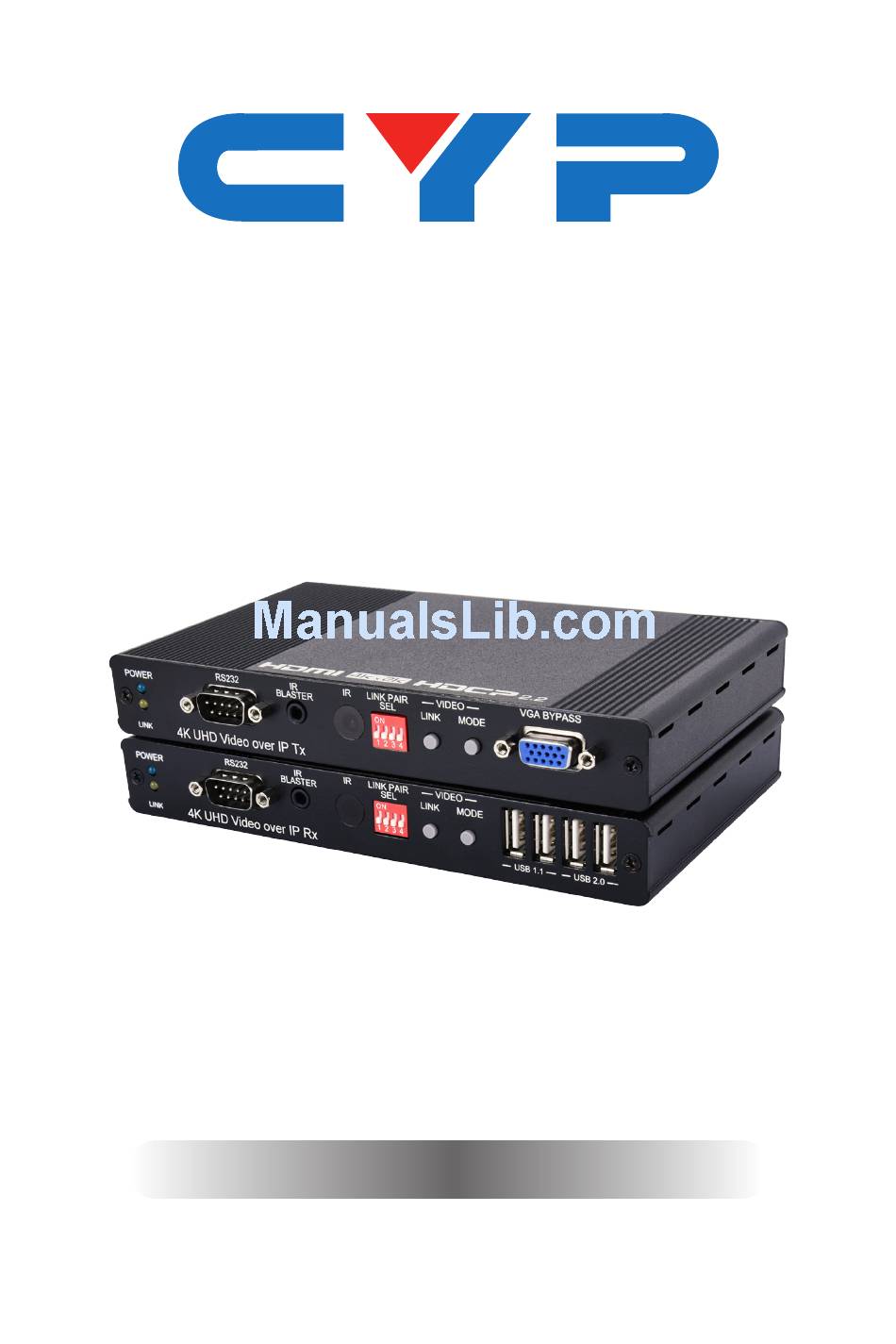

  • Page 1 CH-U330TX & CH-U330RX 4K UHD Multi-Function Extender with Video over IP and KVM Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Transmitter's Front Panel ......3 6.2 Transmitter's Rear Panel ......5 6.3 Receiver's Front Panel....... 6 6.4 Receiver's Rear Panel .......
  • Page 6: Introduction

    1. INTRODUCTION This 4K UHD Multi-Function Extender with KVM over TCP/IP allows you to transmit HDMI or VGA signals over Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz 4:4:4 or 4K@60Hz 4:2:0) along with audio and USB up to 100m on a single cable.
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI or VGA source equipment such as media players, video game consoles PCs or set-top boxes. • HDMI or VGA receiving equipment such as HDTVs, monitors or audio amplifiers. • Analog audio receiving equipment such as headphones, audio amplifiers or powered speakers.
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front Panel RS232 VGA BYPASS LINK PAIR VIDEO POWER BLASTER LINK MODE 1 2 3 4 4K UHD Video over IP Tx LINK POWER LED: This LED will flash BLUE while the unit is powering on and will illuminate solid BLUE once it is ready to be used.
  • Page 9 subnet. Up to 16 Transmitter/Receiver pairs can exist within the same network, depending on available network bandwidth and the resolution of each video stream. The factory default setting for each unit is “0”. Please reboot the unit after changing the LINK PAIR ID.
  • Page 10: Transmitter's Rear Panel

    6.2 Transmitter's Rear Panel AUDIO USB IN VIDEO SELECT LINE LINE DC 5V HDMI IN VGA IN ETHERNET ETHERNET: Connect via a Gigabit Ethernet switch to compatible Receiver(s) to transmit data, and to a PC/laptop to control the unit via WebGUI. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box.
  • Page 11: Receiver's Front Panel

    6.3 Receiver's Front Panel RS232 LINK PAIR VIDEO POWER BLASTER LINK MODE 1 2 3 4 4K UHD Video over IP Rx LINK USB 1.1 USB 2.0 POWER LED: This LED will flash BLUE while the unit is powering on and will illuminate solid BLUE once it is ready to be used.
  • Page 12 PAIR ID. VIDEO LINK: The video link with the Receiver can be enabled or disabled with this button. When the link is disabled and the Receiver is connected to a monitor it will display the system’s current IP and firmware information. Shortcut Key Function: Reset to default (auto IP &...
  • Page 13: Receiver's Rear Panel

    6.4 Receiver's Rear Panel AUDIO EDID SELECT LINE DC 5V HDMI OUT ETHERNET VGA OUT ETHERNET: Connect via a Gigabit Ethernet switch to a compatible Transmitter to receive data, and to a PC/laptop to control the unit via WebGUI. HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output.
  • Page 14: Ir Cable Pin Assignment

    6.5 IR Cable Pin Assignment IR Blaster Power IR Signal 6.6 WebGUI Control Connect both the Transmitter and Receiver to active gigabit networks through Cat.5e/6 and verify that both units are set to the same LINK PAIR ID and that both LINK LEDs are lit solidly. If the LINK LEDs are blinking, please re-check the network connections and try again.
  • Page 15: System

    6.6.1 System Under the “System” tab there are 4 sections: Version Information, Update Firmware, Utilities and Statistics. (1) Version Information: Shows the unit’s firmware version and WebGUI version. (2) Update Firmware: Provides a method for uploading and updating firmware in the field.
  • Page 16 (3) Utilities: Allows the user to reset the unit back to the factory defaults or reboot the device. When connected to a Transmitter there is also an option to set the EDID to either HDMI or VGA. Note: The Console API Command section is for factory use only. (4) Statistics: This window shows all the detailed information about the unit’s current network and functionality settings including Casting Mode (Unicast or Multicast), Link Status and Link Mode.
  • Page 17: Network

    6.6.2 Network The “Network” tab allows the user to change the unit’s Link Pair ID, IP mode, IP address and Casting Mode. After making changes to the IP or Casting mode settings the unit must be rebooted for the changes to take effect.
  • Page 18: Functions

    network to have an IP address automatically assigned to it. “Static” allows the user to manually enter in the IP address, subnet mask and default gateway values. (3) Casting Mode: This section allows for the selection of unicast or multicast data transmission modes for the unit. “Unicast”...
  • Page 19 video transmission is disabled, all linked Receivers will output their OSD info screen. Note: If video is disabled on a Transmitter, all Receivers with the same Link Pair ID must also have video disabled in order to form a stable connection. (2) USB Over IP: This section provides a control to enable or disable the extension of USB between linked units.
  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM PC/Laptop VGA Monitor DVD/Blu-ray Player 1.5m 60° HDMI IR Out RS-232 VGA Bypass Input Output Powered Speakers RS232 LINK PAIR VIDEO VGA BYPASS POWER BLASTER LINK MODE Power 1 2 3 4 4K UHD Video over IP Tx LINK Supply USB IN...
  • Page 21: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Transmitter Video Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI, 1×VGA (15-pin D-sub), 1×Line Audio (3.5mm), 1×USB 2.0 (Type B), 1×RS-232 (9-pin D-sub) Output Ports 1×CAT5e/6, 1×VGA (15-pin D-sub), 1×Line Audio (3.5mm), 1×IR Blaster (3.5mm) Supported Resolutions 408i@60Hz - 4K@60Hz (4:2:0, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit)
  • Page 22 Receiver Video Bandwidth 340MHz/10.2Gbps Input Ports 1×CAT5e/6, 1×Microphone Audio (3.5mm) Output Ports 1×HDMI, 1×VGA (15-pin D-sub), 1×Line Audio (3.5mm), 1×IR Blaster (3.5mm), 4×USB 1.1/2.0 (Type A), 1×RS-232 (9-pin D-sub) Supported Resolutions 480i@60Hz - 4K@24/25/30Hz VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:2:0, 8-bit) Cat.5e/6 Cable Length...
  • Page 23: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 640×480p@60     800×600p@60     1024×768p@60     1280×720p@50/59.94/60     1280×768p@60   1280×960p@60     1280×1024p@60  ...
  • Page 24: Audio Specifications

    8.3 Audio Specifications Unicast Data Transmission Mode: Audio Inputs Audio Outputs HDMI IN LINE IN MIC IN HDMI OUT LINE OUT LINE OUT (TX) (TX) (RX) (RX) (TX) (RX) ● ● ● ■ ■ ▲ ● ■ ■ ■ ● ▲...
  • Page 25: Link Pair Selections

    Supported Audio Formats (kHz) LPCM 2.0@44.1/88.2/176.4 Bitstream LPCM 2.0@32/48/96192 HD Bitstream LPCM 5.1@44.1/88.2/176.4 LPCM 5.1@32/48/96192 LPCM 7.1@44.1/88.2/176.4 LPCM 7.1@32/48/96192 8.4 Link Pair Selections Dip Switches Link Pair ID Note: 0=Off, 1=On.
  • Page 26: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared LPCM Linear Pulse-Code Modulation Personal Computer Pulse-Code Modulation Ultra-High-Definition Universal Serial Bus Video Graphics Array (640×480@60Hz) WUXGA Wide Ultra Extended Graphics Array (1920×1200@60Hz)
  • Page 28 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
