Eazy2Hd HDMI 4x1 Quad Operation Manual

Multi-viewer with seamless switcher
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

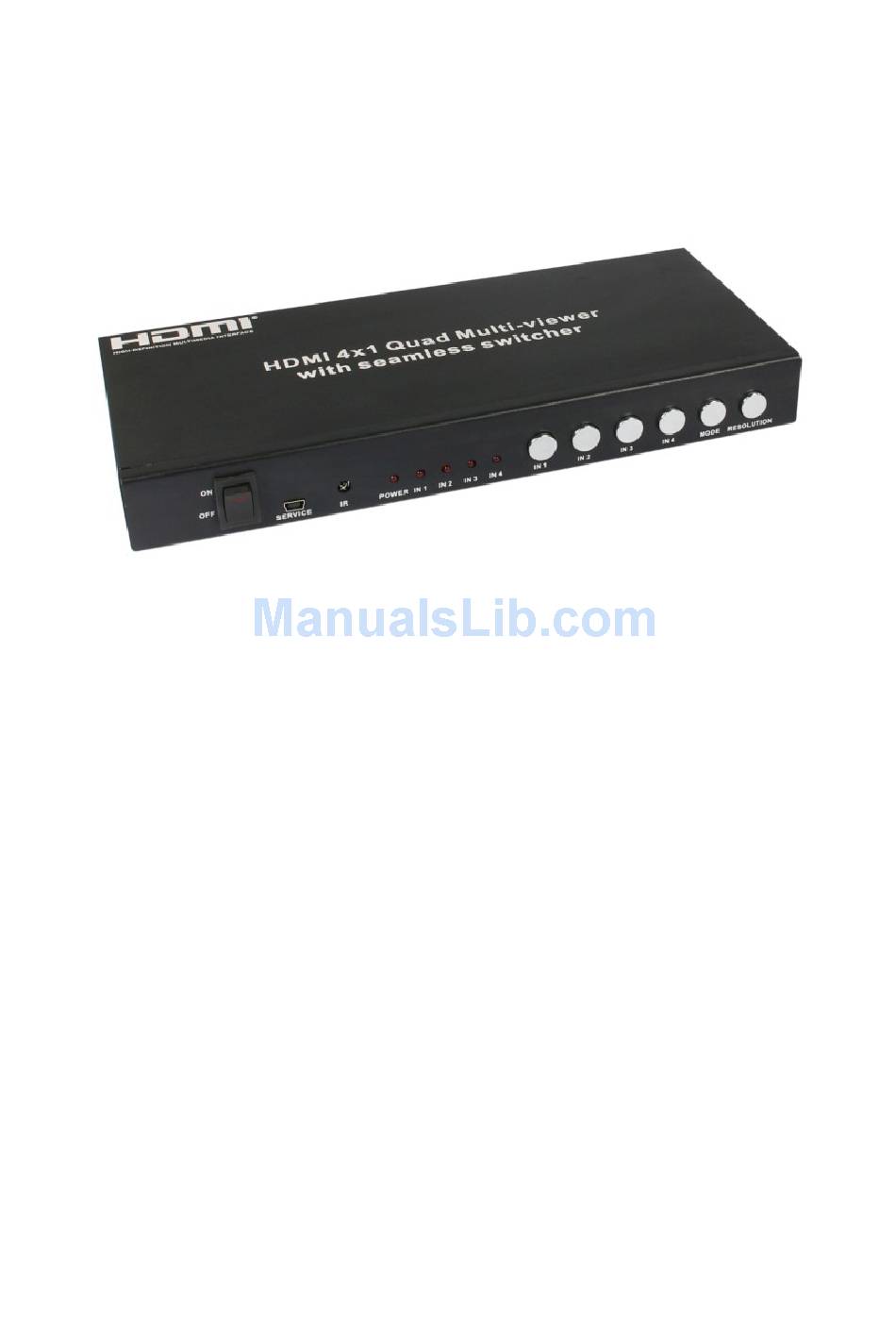

HDMI 4x1 Quad Multi-Viewer
With Seamless Switcher
Operation Manual
1. Introduction
This product is a high performance 4 by 1 Quad Multi-Viewer with seamless
switcher. It supports four High definition input source display on one screen, and
have three multi-view effect mode. As a switcher, it can also seamlessly switch
the four HD input freely. The product can be controlled by various ways, through
the front panel button control, IR control, RS232 control etc.
The product
provides an S/PDIF link to output the HDMI source audio at the same time.
In
addition, this product have basic version and extender version. The Extender
version can extend the video and audio signals over single 50m CAT5e/6 with
Bi-directional IR control.
2. Features
1. Compliant with HDMI 1.3a,HDCP 1.2
2. Supports multiplexed HDMI 4-input and 1-output
3. Supports up to 1080p High Definition resolution
4. Support 4 by1 Quad Multi-viewer and seamless switch
5. Support scaler up, scaler down function
6. Support multi output resolution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMI 4x1 Quad and is the answer not in the manual?

Questions and answers

Summary of Contents for Eazy2Hd HDMI 4x1 Quad

  • Page 1 HDMI 4x1 Quad Multi-Viewer With Seamless Switcher Operation Manual 1. Introduction This product is a high performance 4 by 1 Quad Multi-Viewer with seamless switcher. It supports four High definition input source display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD input freely.

  • Page 2: Specification

    7. Support digital audio format LPCM/AC3/DTS 8. Support button,IR,RS232 etc various controlled ways 9. IR system allowing for control of source at display end 10. Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable(Extender Version). 3.
  • Page 3 Weight 750 g Chassis Material Metal Silkscreen Color Black Operating Temperature 0 ° C~40 ° C/ 32 ° F~104 ° F Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F Relative Humidity 20~90 % RH (non-condensing) Power Consumption 10 W 5.
  • Page 4 4. IR TX: Connect the IR Blaster cable included in the package for IR signal transmission. Pace the IR blaster in direct line-of-sight of the equipment to be controlled. 5. RS232: Connect the RS232 port to the PC or notebook by RS232 Cable. 6.

  • Page 5: Connect And Operate

    ③ IR TX: Connect the IR Blaster cable included in the package for IR signal transmission. Pace the IR blaster in direct line-of-sight of the equipment to be controlled. ④ CAT5E/6:Connect the CAT input of the receiver with the CAT output of the transmitter with CAT5E/6 cable.
  • Page 6 IR BLASTER (TX) To control the source: Plug IR Blaster into IR TX port of transmitter unit; place blaster in front of the IR eye of the source. IR RECEIVER (RX) To control the source: Plug IR Receiver into IR RX port of receiver unit; place receiver at or near display.

  • Page 7: Remote Control

    smaller picture display on one screen. And now switch the input button on front panel or IR remote ,the bigger picture will Corresponding to the selected input source. The HDMI output audio follow the bigger picture source. MODE3: The quad multi-viewer will separate display the four HD input, and now it is a seamless switcher.

  • Page 8: Connection Diagram

    1. Select PC connect COM port，Click to connect or disconnect PC and multi-viewer. 2. Select the HDMI output resolution. 3. Select the input source. 4. Select the output mode, see the detail description(chapter 5.7). 5. Adjust the HDMI output picture quality. 6.
  • Page 9 Basic version: Extender version:...
