Page 1
修理の際は、必ず取扱説明書を参照の上、作業を行っ ● ● operating instructions without fail. てください。 Some illustrations using in this service manual are 本文中に使用しているイラストは、説明の都合上現物 ● ● slightly different from the actual set. と多少異なる場合があります。 TOKYO ,JAPAN Denon Brand Company, D&M Holdings Inc. X0253 V.01 DE/CDM 0508...
Page 2

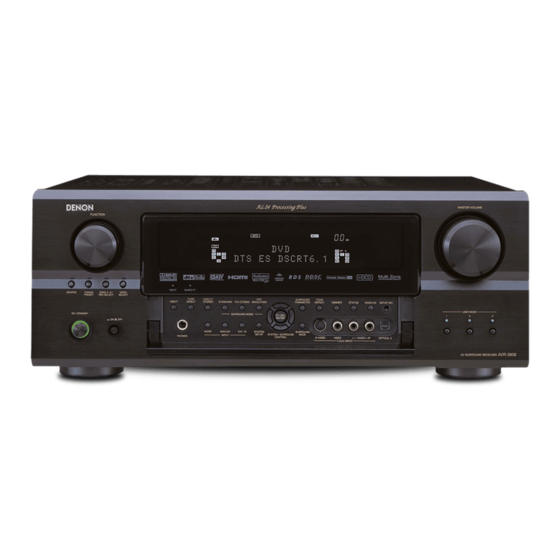

AVR-3806 / AVC-3920 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check.
AVR-3806 / AVC-3920 WIRE ARRANGEMENT ワイヤー整形図 If wire bundles are untied or moved to perform adjustment or 調整や部品の交換等により、ワイヤー類の結束をはずしたり parts replacement etc.,be sure to rearrange them neatly as 移動させた場合には、それらの作業が完了した時点でワイ they were originally bundled or placed afterward. ヤーの整形をおこなってください。正しく整形されていない Otherwise, incorrect arrangement can be a cause of noise とノイズ発生の原因となることがあります。...
AVR-3806 / AVC-3920 CAUTION IN SERVICING サービス時の注意事項 Initializing AV SURROUND RECEIVER AV サラウンドアンプの初期化について AV SURROUND RECEIVER initialization should be performed マイコンやマイコン周辺部品、Digital 基板等を交換した場合は、 when the µcom, peripheral parts of µcom, and Digital P.W.B. are AV サラウンドアンプの初期化を行って下さい。 replaced. 1. Switch off the unit.
AVR-3806 / AVC-3920 ADJUSTMENT 調整 Audio Section Idling Current (1U-3701-1) (1U-3701-1) Required measurement equipment: DC Voltmeter : DC Voltmeter Preparation (1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room tempereture 15 °C ~ 30 °C (59 °F ~ 86 °F).
Page 7
AVR-3806 / AVC-3920 SR ch VR302 SR ch SL ch TP301 FR ch FL ch SL ch VR301 FR ch VR102 DC Voltmeter FL ch VR101 C ch C ch TP101 SBR ch SBL ch SBR ch VR402 SBL ch...
AVR-3806 / AVC-3920 VIDEO Section ビデオセクション 1. SETTING 1. セッティング手順 (1) Connect the oscilloscope to the Y-signal and C-signal of (1) セットの S MONITOR OUT 端子から Y 信号と C 信号を S MONITOR OUT terminal and each terminate at 75 それぞれオシロスコープ(終端抵抗:75Ω)に接続し...
Page 9
AVR-3806 / AVC-3920 2.4. Procedure 2.4. 手順 (1) Adjust the signal of S MONITOR OUT by the wave of os- (1) セットの S MONITOR OUT の信号レベルをオシロスコー cilloscope. プ上の波高値で調整します。 (a) Target, Y-signal (a) Y 信号レベル Point 1U-3705 VR601 調整個所 : 1U-3705 VR601 Adjustment Value 714 ±...
Page 10
AVR-3806 / AVC-3920 (c) Target, P -signal (c) P 信号レベル Point 1U-3705 VR605 調整個所 : 1U-3705 VR605 調整値 : 525 ± 10mV Adjustment Value *525 ± 10mV 波形 Waveform -signal COMPONENT OUT COMPONENT OUT の P 信号レベル * : 486 ± 10mV for U.S.A. & Canada model...
AVR-3806 / AVC-3920 CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK Wave form CH1: D-DATA CH1: DATA CH2: fs CH3: 64fs CH1: DATA CH2: fs CH3: 64fs CH4: 256fs...
Page 20
AVR-3806 / AVC-3920 SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. 主な半導体を記載しています。汎用の半導体は記載を省略しています。 Note : Abbreviation ahead of IC No. indicates the name of P.W.B., etc. 注) :IC No. の前の記号は、基板の名称を表します。 MA : MAIN CPU UNIT PA : POWER AMP UNIT...
Page 21
AVR-3806 / AVC-3920 Pin Name Symbol Type stop FUNCTION (Int.) (Ext.) BYTE BYTE GND (Ext. data bus bit width switching, 16bit: L) CNVCS CNVSS Single-chip/Micro-processor mode switching (Normal single- chip: L,Rewrite boot program start:H input set) RST SUB(RESET2) SUB-μcom reset output (E_RESET)...
Page 22
AVR-3806 / AVC-3920 Pin Name Symbol Type stop FUNCTION (Int.) (Ext.) P10/D8 GRNLED POWER/STANDBY LED control pin P07/D7 H/P DET H/P detect input(Detected:H) P06/D6 FL RST FL DRIVER control pin P05/D5 FL CE2 FL DRIVER control pin P04/D4 FL CE1...
Page 23
M30620FCPGP (DI : IC251) M30620FCPGP Terminal Function Pin Name Symbol Type FUNCTION (Int.) (Ext.) P94/TB4 DLINK ON DENON LINK ON terminal (DENON LINK: H) P93/TB3 DIRCE DIR control pin (LC89057W) P92/SOUT3 DIRDIN DIR control pin (LC89057W) P91/SIN3 DIRDOUT DIR control pin (LC89057W)
Page 24
AVR-3806 / AVC-3920 Pin Name Symbol Type FUNCTION (Int.) (Ext.) P71/RXD2 SCL/EDIT SCL VIDEO I2C/HDMI EDIT(E2PROM) control pin P70/TXD2 SDA/EDIT SDA VIDEO I2C/HDMI EDIT(E2PROM) control pin P67/TXD1 TXD.S Data transfer output to outside P66/RXD1 RXD.S Data receive input from outside...
Page 25
AVR-3806 / AVC-3920 TC4094BF(TP1) (MA : IC501,502,504,508) TC4094BF(TP1) Terminal Function Port Symbol Function IC504 EXP1 TRIGGER 2 TRIGGER OUT 2 control pin EXP2 TRIGGER 1 TRIGGER OUT 1 control pin EXP3 AD MUTE AD mute control pin EXP4 PRE Z3 MUTE...
Page 26
AVR-3806 / AVC-3920 BU4094BCFV-E2 (AV : IC708,709,710) BU4094BCFV-E2 Terminal Function Port Symbol Function IC708 EXP1 IN A Video input select EXP2 IN B Video input select EXP3 IN C Video input select EXP4 Z1IN INH Video input select EXP5 REC A...
Page 46
AVR-3806 / AVC-3920 3. OTHERS GP1UM271XK(Remote Control Sensor) IC101 FRONT P.W.B. 4. OPTICAL TORX142 IC305-308 DIGITAL P.W.B. TORX142 IC312 DIGITAL P.W.B. TORX142 IC501,502 FRONT P.W.B. GP1FM313RZ IC804 FRONT P.W.B. 5. LED SML1216W(LED) LD121,301 FRONT P.W.B.
AVR-3806 / AVC-3920 NOTE FOR PARTS LIST 部品表について • Part indicated with the mark "nsp" are not always in stock and possibly to 1.nsp 印の部品は常時在庫していませんので供給に長時間を要すること take a long period of time for supplying, or in some case supplying of part があります。...
AVR-3806 / AVC-3920 PARTS LIST OF P.W.B. UNIT *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 * The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. * "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 * Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
AVR-3806 / AVC-3920 EXPLODED VIEW (1/2) MAIN UNIT) E2, E2A model WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. 印の部分は安全を維持するために重要 な部品です。従って交換時は必ず指定の 部品を使用してください。 4-12 4-11 DHCT-C3 4-10 DHCT-A3 4-14 4-13...
Page 87
AVR-3806 / AVC-3920 EXPLODED VIEW (2/2) FRONT PANEL UNIT) WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. 印の部分は安全を維持するために重要 な部品です。従って交換時は必ず指定の 部品を使用してください。 D/S PLATE : Cut INNER PANEL H/P PLATE : Cut INNER PANEL...
AVR-3806 / AVC-3920 PARTS LIST OF EXPLODED VIEW *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 * The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. * "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 * Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
AVR-3806 / AVC-3920 PACKING VIEW EU model EC model 215 216 EC model PARTS LIST OF PACKING & ACCESSORIES *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 * The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
AVR-3806 / AVC-3920 NOTE FOR SCHEMATIC DIAGRAM 配線図について WARNING: ! 印の部品は安全を維持するために重要な部品です。 Parts marked with this symbol ! have critical characteristics. 従って交換時は必ず指定の部品を使用してください。 Use ONLY replacement parts recommended by the manufactur- 注) CAUTION: (1) 指定なき抵抗値は Ω、k は kΩ、M は MΩ を示す。 Before returning the unit to the customer, make sure you make µ...
Page 93
AVR-1906 / AVR-786 / AVC-1620 AVR-3806 / AVC-3920 SCHEMATIC DIAGRAMS (1/31) SCHEMATIC DIAGRAMS (1/31) 1U-3700-1 MAIN CPU UNIT (1/2)
Page 94
AVR-3806 / AVC-3920 SCHEMATIC DIAGRAMS (2/31) AVR-1906 / AVR-786 / AVC-1620 SCHEMATIC DIAGRAMS (2/31) 1U-3700-2 MAIN CPU UNIT (2/2)
Page 95
AVR-1906 / AVR-786 / AVC-1620 AVR-3806 / AVC-3920 SCHEMATIC DIAGRAMS (3/31) SCHEMATIC DIAGRAMS (3/31) 1U-3700-2 DIGITAL IN UNIT...
Page 96
AVR-1906 / AVR-786 / AVC-1620 AVR-3806 / AVC-3920 SCHEMATIC DIAGRAMS (4/31) SCHEMATIC DIAGRAMS (4/31) 1U-3700-3 EXT IN / PREOUT UNIT 1U-3700-4 PRE CONNECT2 UNIT...
Page 112
AVR-3806 / AVC-3920 AVR-1906 / AVR-786 / AVC-1620 SCHEMATIC DIAGRAMS (20/31) SCHEMATIC DIAGRAMS (20/31) 1U-3704-2 D.LINK UNIT 1U-3704-3 FRONT IN UNIT 1U-3704-4 MIC UNIT 1U-3704-8 DSP REG. UNIT...
