- Page 1 GLSD72A 7.2V Lithium-ion Screwdriver Tournevis de 7,2 V au Lithium-ion Destornillador de Litio-ion de 7,2 V Operator’s Manual Manuel d’utilisation Manual del Operario 888-552-8665 TOLL FREE HELP LINE: www.genesispowertools.com WEBSITE:...
-
Page 2: Specifications
7.2V Lithium-ion SCREWdRiVER operator’s manual SPECiFiCAtionS: • Model: GLSD72A • Input: 7.2V DC • No Load Speed: 200/400 RPM Reversible • Chuck: 1/4” Hex, quick-change • Torque Settings: • Battery Type: Lithium-Ion • Battery Capacity: 1300 mAh • Charger Input: 120v~/ 60 Hz • Recharging Time: 3-5 Hours • Net Weight: 1 lb Includes: Charging Adaptor, (4) Quick-Change Hex-Shank Drill Bits, and (4) Screwdriver bits WARning: to reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. -
Page 3: Work Area Safety
WARning: REAd and understand all warnings, cautions and operating instructions before using this equipment. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA SAFETY: Keep your work area clean and well lit •... - Page 4 Don’t force the tool or attachment to do a job for which it is not designed. • Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired or replaced by an authorized service center • Turn power tool off, and disconnect the plug from the power source and/or battery pack from the power tool before making any adjustments, changing the accessories, or storing the tools Such preventive safety measures reduce the risk of an accidental start up which may cause personal injury • Store idle tool out of reach of children and other inexperienced persons. It is dangerous in the hand of untrained users. • Maintain power tools with care. Check for proper alignment and binding of moving parts, component breaks, and any other conditions that may affect the tool’s operation. A guard or any other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury. • Use recommended accessories. using accessories and attachments not recommended by the manufacturer or intended for use on this type tool may cause damage to the tool or result in personal injury to the user. Consult the operator’s manual for recommended accessories. • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control 7.2V Lithium-ion Screwdriver Operator’s Manual GLSD72A...
- Page 5 • Feed the work piece in the correct direction and speed. feed the work piece into a blade, cutter, or abrasive surface against the direction of the cutting tool’s direction of rotation only. Incorrectly feeding the work piece in the same direction may cause the work piece to be thrown out at high speed. • Never leave the tool running unattended, turn the power off. Do not leave the tool until it comes to a complete stop. • Never start the power tool when any rotating component is in contact with the work piece. BATTERY TOOL USE AND CARE Ensure the switch trigger is in the off position before inserting • battery pack. Inserting the battery pack into power tools that have the switch on invites accidents. Recharge only with the charger specified by the manufacturer •...
-
Page 6: Guidelines For Using Extension Cords
Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator! 7.2V Lithium-ion Screwdriver Operator’s Manual GLSD72A... -
Page 7: Important Safety Instructions For Charger
• do not leave the tool running. Operate the tool only when hand-held. • Be Aware that this tool is always in an operating condition, because it does not have to be plugged into an electric outlet. • When operating the tool from an elevated position , be aware of people or things beneath you. • Always hold the tool firmly in your hands before switching the tool “on”. - Page 8 You are not allowed to install or remove the battery from the product. IMPORTANT BATTERY INFORMATION: DISPOSING OF THE BATTERY • your batteries are LITHIuM-ION rechargeable batteries. Certain Local, State and federal laws prohibit disposal of these batteries in ordinary trash. • Consult your local waste authorities for your disposal/recycling options. • More information regarding battery disposal in u.S. and Canada is available at; http://www.rbrc.org/index.html, or by calling 1-800-822-8837 (1-800-8BATTeRy). SAVE THESE INSTRUCTIONS 7.2V Lithium-ion Screwdriver Operator’s Manual GLSD72A...
-
Page 9: Contents In Package

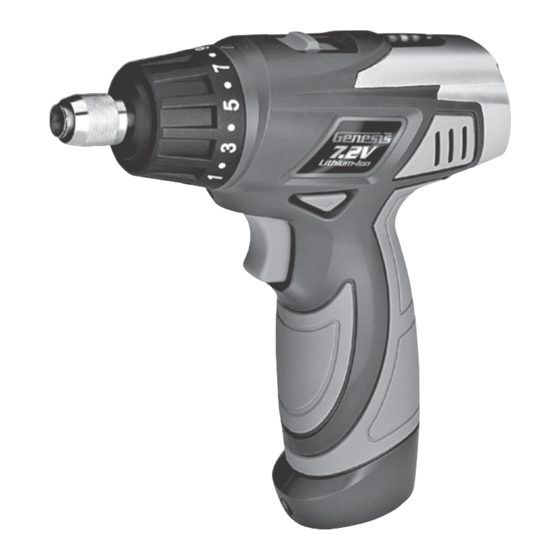

YouR SCREWdRiVER Fig 1 1. Hex Chuck 6. Reversing Switch 2. Torque Ring 7. LeD Work Light 3. 2-Speed Gear Switch 8. Trigger Switch 4. Battery Power Indicator 9. Charging Port 5. Battery Power Indicator Button unPACKing And ContEnt imPoRtAnt due to modern mass production techniques, it is unlikely the tool is faulty or that a part is missing. if you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. -
Page 10: Operation
• Slide the speed gear switch to choose between position 1 for low speed 200 RPM and position 2 for high speed range 400 RPM. • The low speed has more power and torque. use the low speed for high power and torque applications. TWO SPEED Fig 2 GEAR SWITCH • The high speed is for fast drilling or driving applications OVERLOAD PROTECTION your tool is equipped with an overload protection circuit to protect the motor and battery in the event of a stall. When the tool is stalled, it will automatically turn itself off. If this happens, remove the tool from the work piece, turn off the tool, wait for a few seconds, then turn it on and continue using it. Sometimes, when the battery is low, the tool may shut down automatically more often. This indicates it is time to recharge the battery. LED WORK LIGHT your tool has a built-in LeD work light to illuminate the work area. When you turn on the tool, the work light will automatically turn on. BATTERY POWER INDICATOR (FIG 2) your tool has a battery power indictor. It consists of a green light, yellow light, red light and push button. To show the battery power, simply just push down the button. If all three lights are on, the battery is fully charged. If both red and yellow lights are on, battery is OK for operation of the tool. If only the red light is on, it is the time to recharge the battery. 7.2V Lithium-ion Screwdriver Operator’s Manual GLSD72A... - Page 11 HEX CHUCK (FIG 3) UNLOCK your driver is equipped with a tool-less 1/4" Hex Chuck, that accepts only standard 1/4" Hexagonal shank accessory LOCK with a locking groove. you can quickly change bits with no extra tools required. • Place the forward/reverse switch in the center (Off) posision. LOCKING • To insert or change bits, push the locking sleeve Fig 3 SLEEVE towards the driver to unlock the chuck. Hold it with one hand while inserting the bit with the other hand.
-
Page 12: Maintenance
ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY. toLL-FREE hELP LinE 888-552-8665 for questions about this or any other GeNeSIS Product, please call Toll-free: www.genesispowertools.com Or visit our web site: © Richpower industries, inc. All Rights reserved Richpower Industries, Inc. 736 Hampton Road Williamston, SC 29697 Printed in China, on recycled paper 7.2V Lithium-ion Screwdriver Tournevis de 7,2 V au Lithium-ion Operator’s Manual GLSD72A Manuel d’utilisation GLSD72A... - Page 13 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.richpowerinc.com 2011.08.22...
