Summary of Contents for AAREFF 200wntap

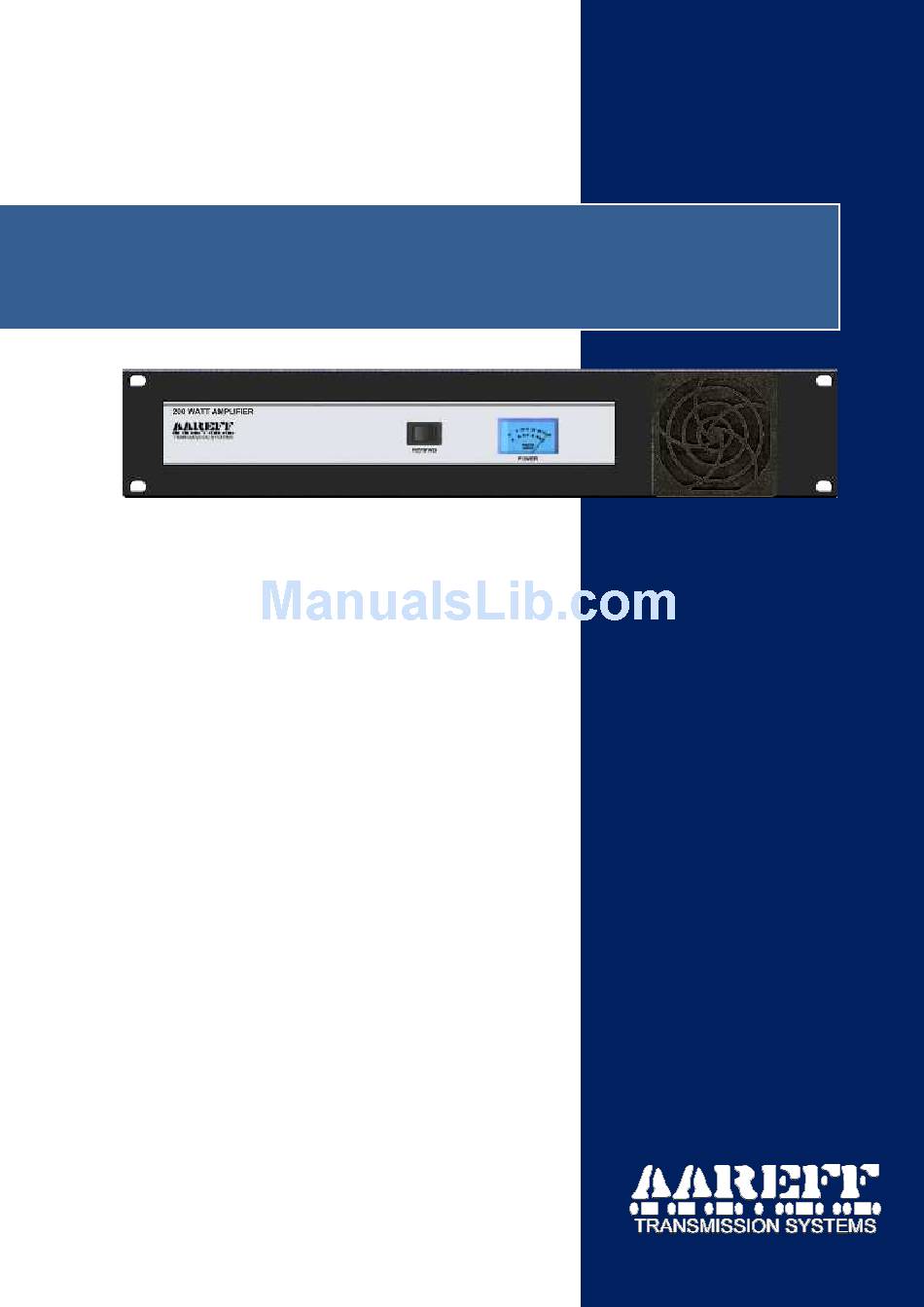

- Page 1 200 WATT BAND II VHF FM POWER AMPLIFER AAREFF TRANSMISSION SYSTEM Av. Andalucía No. 1 CP 04661...
-
Page 2: Table Of Contents
200 WATT BAND II VHF FM POWER AMPLIFIER INDEX 1. INTRODUCTION Unpacking and Control General Information User Safety Responsibility Electromagnetic Compatibility Intended Use 2. PACKAGE CONTENTS 3. PRE-INSTALLATION Amplifier Driver / Exciter Antenna 4. INSTALLATION Pre-Installation Antenna Connection Driver / Exciter Connection Power Supply Connections 5. -
Page 3: Unpacking And Control
Please make sure the product is complete and it has not been damaged during transport. In the case of any damage please contact us at info@aareff.com 1.2 General Information This manual does not contain any kind of warranty. The terms of warranty are in our general conditions of sale. -
Page 4: Electromagnetic Compatibility
ETR132, a copy of this is available at http://www.aareff.com/ETR132.pdf 2. PACKAGE CONTENTS Quantity Description 19 Inch Rack Mount 200 Watt Amplifier Mains AC Cord With IEC Type Connector Short 50 Ohm RG58 Cable Terminated With BNC Connectors... -
Page 5: Pre-Installation 3.1 Amplifier Driver / Exciter
200 WATT BAND II VHF FM POWER AMPLIFIER 3. PRE–INSTALLATION 3.1 Amplifier Driver / Exciter The Driver / Exciter needs to be compliant and set to the correct frequency BEFORE the amplifier is powered by AC Mains Under NO CIRCUMSTANCES should the amplifier be connected to a Driver / Exciter where the RF output performance and specification is unknown. -
Page 6: Installation 4.1 Pre-Installation
200 WATT BAND II VHF FM POWER AMPLIFIER Ensure that all antenna connections are sound, this is important as poor connections and soldered joints can cause RF burns to personnel, severe noise to the transmission and excessive RF bandwidth. Ideally the antenna for this power amplifier should be at least 2 dipoles stacked and phased, a 5/8 type or other antenna with similar gain or more to the horizon. -
Page 7: Operation 5.1 Normal Conditions
200 WATT BAND II VHF FM POWER AMPLIFIER 5. OPERATION 5.1 Normal Conditions You should hear the cooling fan. The fan draws air into the front and exits the warm air through the rear vents. It is important to keep these vents clear. If you cannot hear the fan turning, then shut the amplifier down by removing the AC mains immediately. -
Page 8: Maintenance
You, the customer or user agree to defend, indemnify and hold harmless Aareff Systems Limited, it’s employees and agents, from and against any claims, actions or demands, including without limitation legal and accounting fees,... -
Page 9: Technical Data 8.1 Rf Parameters
200 WATT BAND II VHF FM POWER AMPLIFIER 8. TECHNICAL DATA 8.1 RF Parameters Power Input 1 Watt MAX. into 50 ohms Power Output Adj. 20-200 Watts into 50 ohms Freq Range 87.5 to 108 MHz Spurious Emissions Less than -75 dB ref to carrier Harmonic Emissions Less than -70 dB ref to carrier Residual AM... -
Page 10: Equipment Compliance
3 meters in length to remain in compliance with EMC directive. Equipment compliance is possible using equipment from and in conjunction from other manufacturers, but since this is beyond the control of Aareff Systems, Aareff Systems cannot or be expected to guarantee compliance. -
Page 11: Declaration Of Conformity
AAREFF SYSTEMS LIMITED (UK) Company No 7140572 We hereby declare that the following product; AAREFF 19 INCH RACK 200 WATT FM BAND II VHF POWER AMPLIFER (200WNTAP) Is in compliance with the following standards where applicable: ETS 300 384/A1 ed.1 (1997-02) - Page 12 Aareff Transmission Systems or by other parties that have licensed their material to Aareff Transmission Systems. This document in part or whole may not be copied, reproduced, republished, uploaded, posted or distributed in any way, including by e-mail, ftp or any other electronic means.
