ADVANSEA C.56/T.56/T.50
Addendum to Installation manual
Number
1
2
3
4
5
6
7
8

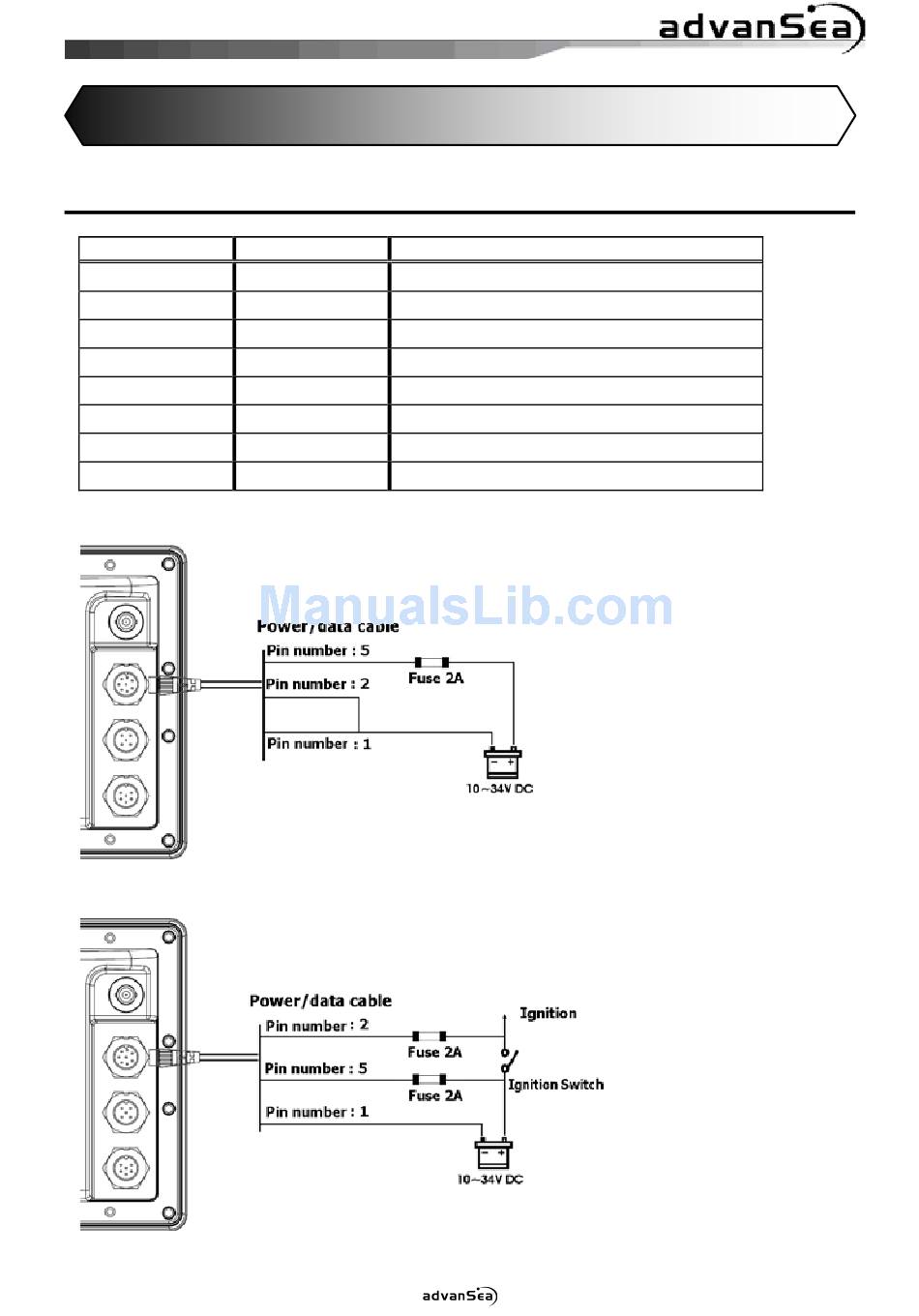

Basic Power
Auto Power
Color
Function
Black
Ground: - power in, NMEA ground.
Brown
Ignition_On
White
NMEA 1 Out
Blue
NMEA 1 In
Red
+ power in, 12 to 34 V DC
Orange
NMEA 2 Out
Yellow
NMEA 2 In
Green
External alarm
1
