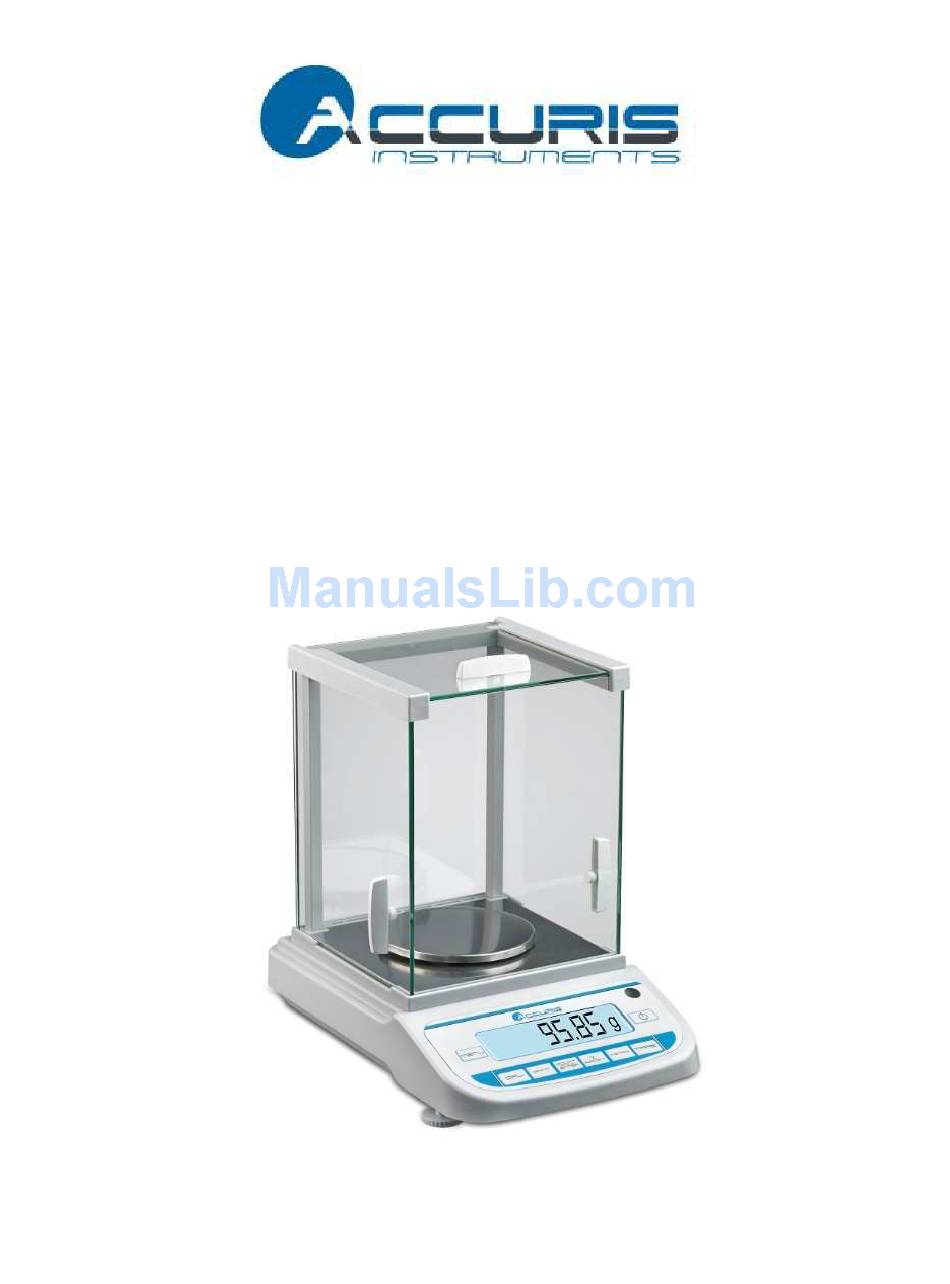

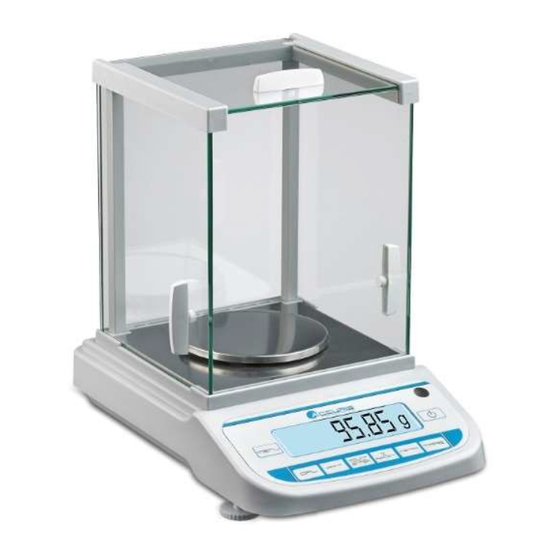

- Page 1 Precision Balance W3200 Series Operating Manual...
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION …………………………………………….…………………… 2. INSTALLATION ………………………………………….……………………….. 2-1. Unpacking ……………………………………………...….………………… 2-2. Specifications ………………………………..……………..………………… 2-3. Environmental Requirements …………….………………….………………. 2-4. Setting up your balance …………………….…………………………………. 3. OPERATING YOUR BALANCE ………………………..………………………. 6 3-1. Display and Control Panel …………………………………………………… 3-2 Basic Weighing …………………………………………….………………… 3-3. Count Weighing ……………………………….………….……………………. 7 3-4. -
Page 4: Introduction
1. INTRODUCTION To ensure proper operation performance from of your Accuris Precision balance, please read this manual in its entirety before use. Accuris balances have been designed and developed with our scientific customers’ requirements in mind. The Precision Balance range incorporates gold-plated ceramic capacitance technology, combined with mechanical engineering and software to provide the following features: •... -
Page 5: Specifications
Packing List Item Quantity Precision Balance Unit Weigh Pan (top) Pan Support (bottom) AC power adapter Operating Manual IMPORTANT: It is recommended to save the cartons and packing materials for storing and transporting the balance or returning it for any required servicing. 2-2 Specifications Model W3200-120... -
Page 6: Setting Up Your Balance
An unsuitable environment will adversely affect the performance of your balance. • The area and environment where your balance is used should be kept clean and dry at all times; • The optimal operating temperature is 20℃ (68℉) and 50% relative humidity; •... -
Page 7: Operating Your Balance
3. OPERATING YOUR BALANCE 3-1 Display and Control Panel DISPLAY SYMBOLS Grams Carats Ounce Inspect Inspection mode Units shown in # of pieces COUNT Pieces Counting Mode Percent deviation Indicates the weight is stable ＋ positive indicator － negative indicator 3-2 Basic weighing •... -
Page 8: Count Weighing
3-3 Count weighing This function is used to determine a total number of pieces of similar weights. A known number of pieces is weighed as a reference, and the average weight of each piece is automatically calculated. An unknown quantity of pieces can then be calculated. 1. -
Page 9: Calibration
9) Set the value of the Low limit: Press COUNT/ENTER to increase the value, press TARE to decrease the value. 10) Press MENU and then COUNT/ENTER to confirm the Low limit set point. 11) No warning setup: no warning when there is no loading on the balance or the weight is lower than the lowest weight limit. -
Page 10: Manual Calibration
4-1 Manual Calibration Plug in and pre-warm your balance at least 30 minutes before performing a the calibration procedure • Press the Power button to turn on the balance • Press the TARE key and the display should show 0.00 g •... - Page 11 COUNT/ENTER to confirm. “0 SEC” indicates continuous print. 5．Print COUNT/ENTER key to return to weighing mode. 6．After entering print setup menu, press TARE key repeatedly to choose line feed setup “LinEFd”. 7．Press TARE key repeatedly to see the predetermined line feeds (1-18). Choose the proper line feeds, press the COUNT/ENTER key to return to weighing mode.
-
Page 12: Additional Functions
6. Additional Functions Bottom Hook Weighing There is a receptical on the bottom of the balance for a weighing hook. 1. Open the bottom cover of the balance i. Important Notice: Lay the balance on its side to open the bottom cover, do not turn the balance upside down. -
Page 13: Trouble Shooting
7-1 The RS232 Interface Hardware: This balance adopts the transmit and receive lines of standard RS232. The data format is 1 start bit 8 data bits include parity 1 stop bit The instruction to connect the balance to external device is as follows, RS232 pins DESCRIPTION 2：TXD---- scale transmits data... -
Page 14: Care And Maintenance
unstable (evaporation or absorption of moisture) ·The balance is not ·Calibrate the balance Weighing value · Press TARE key to zero is not accurate calibrated ·The display is not tared the display ·Level the balance by before weighing ·The balance is not turning the adjusting feet properly leveled 8. - Page 16 © Copyright, 2015, Benchmark Scientific...
