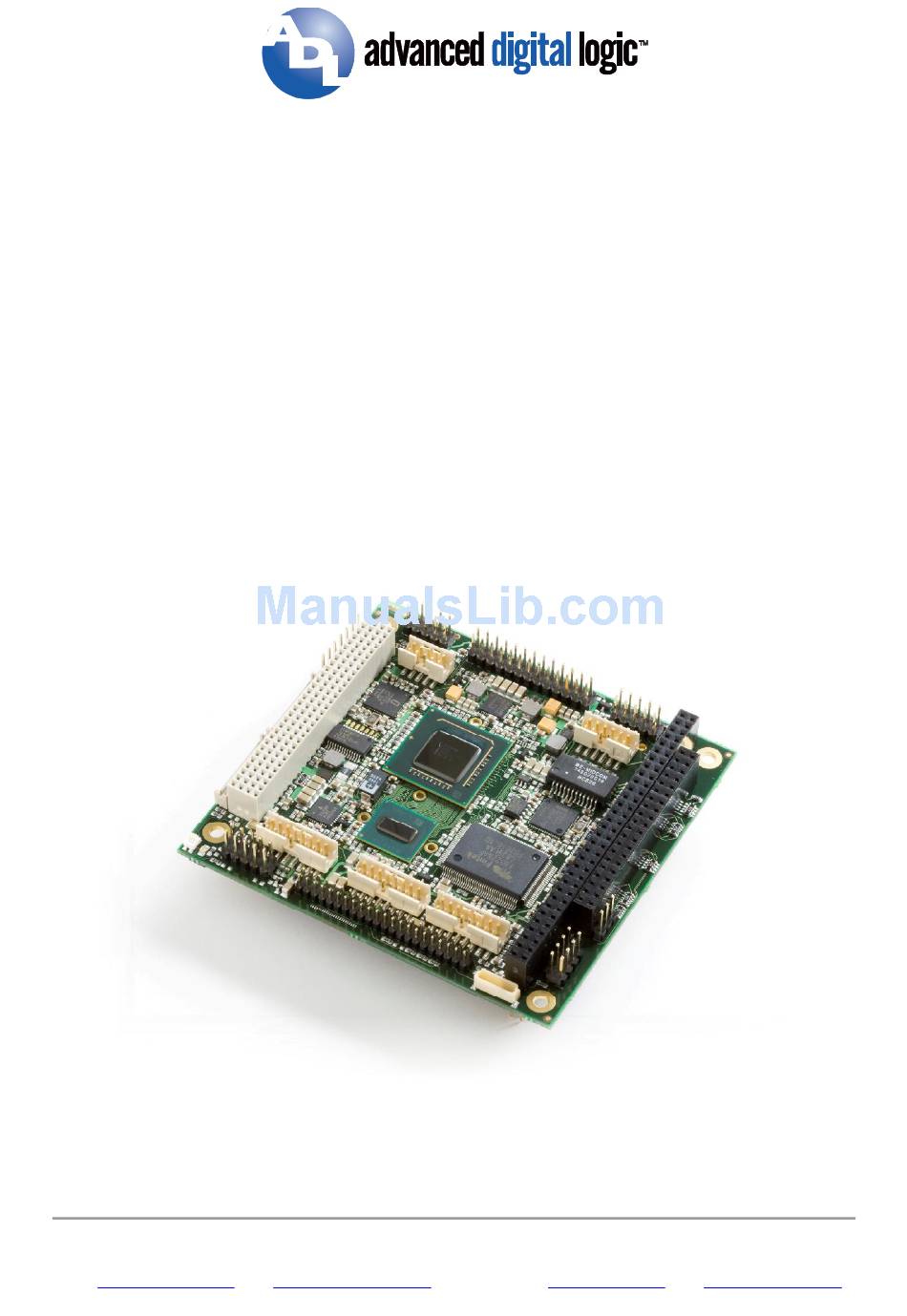

ADLS15PC
Manual
rev. 1.4
Advanced Digital Logic GmbH, Eiserfelder Str. 316,
Advanced Digital Logic, Inc. 4411 Morena Blvd., Suite 101
57080 Siegen, Germany
San Diego, CA 92117-4345
P. +49 (0) 271 250 810 0 F. +49 (0) 271 250 810 20
P. +1 858 490-0597 F. +1 858 490-0599
e-mail: sales@adl-europe.com; web:
http://www.adl-europe.com
e-mail: sales@adl-usa.com; web:
http://www.adl-usa.com
Advertisement
Table of Contents
Related Manuals for ADL S15PC
Summary of Contents for ADL S15PC
- Page 1 Advanced Digital Logic, Inc. 4411 Morena Blvd., Suite 101 57080 Siegen, Germany San Diego, CA 92117-4345 P. +49 (0) 271 250 810 0 F. +49 (0) 271 250 810 20 P. +1 858 490-0597 F. +1 858 490-0599 e-mail: sales@adl-europe.com; web: http://www.adl-europe.com e-mail: sales@adl-usa.com; web: http://www.adl-usa.com...
-
Page 3: Table Of Contents
Contents Contents Document History ........................... 5 Introduction............................. 6 Important Notes........................6 Technical Support ........................6 Warranty ..........................6 Return Authorization....................... 6 Description of Safety Symbols ....................7 Overview ............................8 Features..........................8 Specifications and Documents....................10 Detailed Description........................11 Power Supply ........................11 CPU ............................. - Page 4 Contents 5.6.4 USB Device Setting......................50 Power Management Setup ....................51 5.7.1 HPET Feature ........................52 5.7.2 Intel DTS Feature......................53 PnP/PCI Configuration......................54 5.8.1 IRQ Resources......................... 55 PC Health Status........................56 5.10 Load Fail-Safe Defaults ......................58 5.11 Load Optimized Defaults ...................... 58 5.12 Set Password ........................
-
Page 5: Document History
Important Notes Chapter: Document History 0 Document History Version Changes first pre-release first complete version, todo: update photographs to G2 added SSD description, updated thermal specs, minor corrections new photographs, updated contact details, minor changes added pinout for RS-422/RS-485 COM soldering option, minor changes minor changes updated block diagram (ALC 885 EOL, 8GB SSD), added "3.3V only"... -
Page 6: Introduction
12 months of original shipment of ADL will be covered, provided a written claim for service under warranty is received by ADL no less then 30 days prior to the end of the warranty period of within 30 days of discovery of the defect – whichever comes first. Warranty coverage is contingent upon proper handling and operation of the product. -
Page 7: Description Of Safety Symbols
Description of Safety Symbols Chapter: Introduction 1.5 Description of Safety Symbols The following safety symbols are used in this documentation. They are intended to alert the reader to the associated safety instructions. CUTE RISK OF INJURY If you do not adhere to the safety advise next to this symbol, there is immediate danger to life and health of individuals! ISK OF INJURY If you do not adhere to the safety advise next to this symbol, there is danger to life and health of... -
Page 8: Overview
Chapter: Overview Features 2 Overview 2.1 Features The ADLS15PC is a highly complex PC/104-Plus board which incorporates complete motherboard functionality. Equipped with an Intel® Atom™ processor (Z510 or Z530), it can accommodate up to 2 GByte of RAM (DDR2-533) via SO-DIMM200. It also provides a 16-bit ISA bus (via PC/104, no DMA and memory transfer functions available) a PCI bus (via PC/104-Plus) and additional peripheral devices such as two serial interfaces, Gigabit Ethernet interface (LAN), an IDE interface, an audio interface (HDA 7.1), eight USB channels and CRT and LVDS/TFT support. - Page 9 Features Chapter: Overview LPT interface Eight USB 2.0 interfaces (7x host, 1x host/device) AWARD BIOS 6.10 CRT connection LCD connection via LVDS 18/24Bit AC97/HDA compatible sound controller with SPDIF in and out RTC with external CMOS battery 5V single supply voltage ISA bus via PC/104 (full 16bit support, no DMA and memory transfer functionality) PCI bus via PC/104-Plus (max.
-
Page 10: Specifications And Documents
Chapter: Overview Specifications and Documents 2.2 Specifications and Documents In making this manual and for further reading of technical documentation the following documents, specifications and web-pages were used and are recommended. § ISA Specification IEEE996P www.ieee.org § PC/104™ Specification Version 2.5 www.pc104.org §... -
Page 11: Detailed Description
Power Supply Chapter: Detailed Description 3 Detailed Description 3.1 Power Supply The power supply of the hardware module is effected via the power connector. The board only requires an operating voltage of 5 volt ± 5%. 3.2 CPU The motherboard employs an Intel® Atom™ processor either with 1.1GHz or with 1.6GHz clock speed (Z510/Z530). -
Page 12: Connectors
Chapter: Connectors Connector Map 4 Connectors 4.1 Connector Map Please use the connector map below for quick reference. Only connectors on the component side are shown. For more information on each connector refer to the table below. Ref-No. Function Page P400 "IDE Interface"... -
Page 13: Power Supply
Power Supply Chapter: Connectors 4.2 Power Supply The connector for the power supply is a standard IDC socket connector with a spacing of 2.54 mm. The board only requires an operating voltage of 5 volt ± 5%. 3.3V output to the PC/104-Plus bus is the only off-board supply available. -
Page 14: System
Chapter: Connectors System 4.3 System The system connector, which has the main functions that are necessary to start the board, is provided via a standard IDC socket connector with a spacing of 2.54 mm. This connector supports the following interfaces: PS/2 keyboard, PS/2 mouse, speaker, external RTC- battery and reset of the board. -
Page 15: Memory
Memory Chapter: Connectors 4.4 Memory There is one conventional SO-DIMM200 socket available to equip the board with memory (DDR2-533). It is located on the bottom side of the board. For mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your sales representative for recommended memory modules. With currently available SO-DIMM modules a memory extension up to 2 GByte is possible. - Page 16 Chapter: Connectors Memory Description Name Name Description 2.5 volt supply 2.5V 2.5V 2.5 volt supply data strobe 2 DQS2 DQM2 data mask 2 data 18 DQ18 DQ22 data 22 ground ground data 19 DQ19 DQ23 data 23 data 24 DQ24 DQ28 data 28 2.5 volt supply...
- Page 17 Memory Chapter: Connectors Description Name Name Description 2.5 volt supply 2.5V 2.5V 2.5 volt supply 2.5 volt supply 2.5V CK1# clock ground clock ground ground data 48 DQ48 DQ52 data 52 data 49 DQ49 DQ53 data 53 2.5 volt supply 2.5V 2.5V 2.5 volt supply...
-
Page 18: Pc/104-Bus
Chapter: Connectors PC/104-Bus 4.5 PC/104-Bus An onboard LPC-to-ISA bridge (Fintek® F85226F) makes it possible to expand the functionality of the board with additional PC/104 cards. This interface offers full 16bit ISA compliance. For further information on this interface please refer to the PC/104 specifications (see "Specifications and Documents", p. 10). The chipset used on this board does not support ISA-DMA functionality. - Page 19 PC/104-Bus Chapter: Connectors Description Name Name Description ISA – address 6 IRQ3 ISA – interrupt 3 ISA – address 5 (DACK2#) reserved (pulled high) ISA – address 4 ISA – terminal count ISA – address 3 BALE ISA – address latch en. ISA –...
-
Page 20: Pc/104-Plus Bus
Chapter: Connectors PC/104-Plus Bus 4.6 PC/104-Plus Bus Expansion cards can be connected to the board using the PCI connector first introduced with the PC/104- Plus standard. A maximum of four PC/104-Plus cards are supported. The interrupt routing and the IDSEL signals for the expansion cards are specified in the PC/104-Plus specification (see "Specifications and Documents", p. - Page 21 PC/104-Plus Bus Chapter: Connectors Description Name Name Description ground INTD# PCI – interrupt D 12V supply INTA# PCI – interrupt A -12V supply -12V REQ3# PCI – bus request slot 4 5 volt supply PCI – address/data 0 PCI – address/data 1 5 volt supply PCI –...
-
Page 22: Vga
Chapter: Connectors 4.7 VGA The CRT-VGA signals are provided by a 2x5pin connector (FCI 98424-G52-10LF, mating connector e.g. FCI 90311-010LF). This interface allows the connection of a standard VGA-monitor. I2C communication is supported. Description Name Name Description analog red ground analog green GREEN DDDA... -
Page 23: Lcd
Chapter: Connectors 4.8 LCD The LCD is connected via two 15 pin connectors (Hirose DF13-15P-DAS, mating connector: DF13-15S- xxx). The power supply for the display is also provided through these connectors. The ADLS15PC board only supports displays with LVDS interface. For displays with digital interface an extra receiver board is available. - Page 24 Chapter: Connectors The following table shows the pin description for the second connector used for evaluating the display's EDID data. Name Description ground ground reserved reserved reserved reserved reserved reserved reserved reserved reserved reserved DDC_CLK EDID clock for LCD DDC_DAT EDID data for LCD 5 volt supply page 24...
-
Page 25: Usb
Chapter: Connectors 4.9 USB USB channels 1 to 8 are provided via two 2x8pin connectors (FCI 98424-G52-16LF, mating connector e.g. FCI 90311-016LF). All USB-channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup can be changed with a USB keyboard without enabling USB keyboard support. - Page 26 Chapter: Connectors Pinout USB 5-8: Description Name Name Description 5 volt for USB5 USB5 VCC USB6VCC 5 volt for USB6 minus channel USB5 USB5# USB6# minus channel USB6 plus channel USB5 USB5 USB6 plus channel USB6 ground ground ground ground plus channel USB7 USB7 USB8...
-
Page 27: Lan
Chapter: Connectors 4.10 LAN The LAN interface is provided via a 2x6pin connector (FCI 98424-G52-12LF). The interface supports 10BaseT, 100BaseT, and 1000BaseT compatible network components with automatic bandwidth selection. Additional outputs are provided for status LEDs. Auto-negotiate and auto-cross functionality is available, PXE and RPL are available on request. -
Page 28: Audio
Chapter: Connectors Audio 4.11 Audio The ADLS15PC's audio functions are provided via a 2x8pin connector (FCI 98424-G52-16LF, mating connector e.g. FCI 90311-016LF). This interface provides eight output channels for full 7.1 sound output. Two microphone inputs and two AUX inputs are also available. The signals "SPDIFI"... -
Page 29: Ide Interface
IDE Interface Chapter: Connectors 4.12 IDE Interface The primary IDE interface is a standard IDC socket connector with a spacing of 2 mm. All commercial IDE devices are supported but an adapter to connect may be necessary. The required settings are made in the BIOS setup. AUTION Pins are not keyed! Please be sure to connect the cable properly, otherwise you risk damaging the IDE interface, the CPU and the drive, voiding respective warranties. - Page 30 Chapter: Connectors IDE Interface AUTION If the board has a solid state disk (SSD) installed then you must not connect legacy IDE devices which still use a signal level of 5V instead of 3.3V. page 30 Advanced Digital Logic ADLS15PC...
-
Page 31: Parallel Interface Lpt
Parallel Interface LPT Chapter: Connectors 4.13 Parallel Interface LPT The parallel interface is a standard IDC socket connector with a spacing of 2.54 mm. The port address and the interrupt are set via the BIOS setup. Description Name Name Description strobe STB# AFD#... -
Page 32: Serial Interface Com1
Chapter: Connectors Serial Interface COM1 4.14 Serial Interface COM1 The serial interface is a standard IDC socket connector with a spacing of 2.54 mm. Signals default to RS- 232 but can also be ordered as RS-422 or RS-485. The port address and the interrupt are set via the BIOS setup. AUTION COM 1 &... -
Page 33: Serial Interface Com2
Serial Interface COM2 Chapter: Connectors 4.15 Serial Interface COM2 The serial interface is a standard IDC socket connector with a spacing of 2.54 mm. Signals default to RS- 232 but can also be ordered as RS-422 or RS-485. The port address and the interrupt are set via the BIOS setup. AUTION COM 1 &... -
Page 34: Smbus
Chapter: Connectors SMBus 4.16 SMBus The ADLS15PC can communicate with external devices via the SMBus protocol. The signals for this protocol are available through a standard IDC socket connector with a spacing of 2.54 mm. A 3.3 volt power supply is also available for these SMBus devices. Additionally, you can use this connector to access the PWRBTN# and PS_ON# signals used for power control. -
Page 35: Monitoring Functions
Monitoring Functions Chapter: Connectors 4.17 Monitoring Functions Some more monitoring functions, e. g. concerning the status of the fan or of other devices connected over SMBus (e. g. temperature sensor), are accessible via an 8 pin connector (JST BM08B-SRSS-TB, mating connector: SHR-08V-S(-B)). -
Page 36: Fan
Chapter: Connectors 4.18 Fan A 3 pin connector is available for controlling and monitoring an external fan (5 volt). For the monitoring the fan must provide a corresponding speed signal. Name Description ground FANON2 5 volt supply (switched) FANCTRL2 fan monitoring signal page 36 Advanced Digital Logic ADLS15PC... -
Page 37: Bios Settings
Remarks for Setup Use Chapter: BIOS Settings 5 BIOS Settings 5.1 Remarks for Setup Use In a setup page, standard values for its setup entries can be loaded. Fail-safe defaults are loaded with F6 and optimized defaults are loaded with F7. These standard values are independent of the fact that a board has successfully booted with a setup setting before. -
Page 38: Standard Cmos Features
Chapter: BIOS Settings Standard CMOS Features 5.3 Standard CMOS Features Phoenix – AwardBIOS CMOS Setup Utility Standard CMOS Features Date (mm:dd:yy) Thu, Feb 5 2009 Item Help Time (hh:mm:ss) 11 : 13 : 35 ► IDE Channel 0 Master [4GB NANDrive] ►... -
Page 39: Ide Channel 0 Master/Slave
Standard CMOS Features Chapter: BIOS Settings 5.3.1 IDE Channel 0 Master/Slave Phoenix – AwardBIOS CMOS Setup Utility IDE Channel 0 Master IDE HDD Auto-Detection [Press Enter] Item Help IDE Channel 0 Master [Auto] Access Mode [Auto] Capacity 4096 MB Cylinder 7937 Head Precomp... -
Page 40: Advanced Bios Features
Chapter: BIOS Settings Advanced BIOS Features 5.4 Advanced BIOS Features Phoenix – AwardBIOS CMOS Setup Utility Advanced BIOS Features ► CPU Feature [Press Enter] Item Help ► Hard Disk Boot Priority [Press Enter] CPU L1 & L2 Cache [Enabled] Quick Power On Self Test [Enabled] First Boot Device [USB-FDD]... - Page 41 Advanced BIOS Features Chapter: BIOS Settings ü Gate A20 Option Options: Normal / Fast ü Typematic Rate Setting Options: Enabled / Disabled ü Typematic Rate (Chars/Sec) Options: 6 / 8 / 10 / 12 / 15 / 20 / 24 / 30 ü...
-
Page 42: Cpu Feature
Chapter: BIOS Settings Advanced BIOS Features 5.4.1 CPU Feature Phoenix – AwardBIOS CMOS Setup Utility CPU Feature Item Help Thermal Management [Thermal Monitor 2] Limit CPUID MaxVal [Disabled] C1E Function [Disabled] CPU C State Capability [Disabled] Execute Disable Bit [Enabled] ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü... -
Page 43: Hard Disk Boot Priority
Advanced BIOS Features Chapter: BIOS Settings 5.4.2 Hard Disk Boot Priority Phoenix – AwardBIOS CMOS Setup Utility Hard Disk Boot Priority 1. Ch0 M. : 4GB NANDrive Item Help 2. Bootable Add-in Cards Boot priority [Dynamic] ↑↓→←:Move PU/PD/+/-:Change Priority F10:Save ESC:Exit F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü... -
Page 44: Advanced Chipset Features
Chapter: BIOS Settings Advanced Chipset Features 5.5 Advanced Chipset Features Phoenix – AwardBIOS CMOS Setup Utility Advanced Chipset Features DRAM Timing Selectable By SPD Item Help System BIOS Cacheable [Enabled] Video BIOS Cacheable [Enabled] ** VGA Setting ** On-Chip Frame Buffer Size [ 8MB] Boot Type [VBIOS Default]... -
Page 45: Integrated Peripherals
Integrated Peripherals Chapter: BIOS Settings 5.6 Integrated Peripherals Phoenix – AwardBIOS CMOS Setup Utility Integrated Peripherals ► OnChip IDE Device [Press Enter] Item Help ► Onboard Device [Press Enter] ► PCI Express Root Port Func [Press Enter] Onboard FDC/LPT [LPT] Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2... - Page 46 Chapter: BIOS Settings Integrated Peripherals ü Parallel Port Mode Options: SPP / EPP / ECP / ECP+EPP / Normal ü EPP Mode Select Options: EPP1.9 / EPP1.7 ü USB Device Setting Sub menu: see "USB Device Setting" (p. 50) page 46 Advanced Digital Logic ADLS15PC...
-
Page 47: Onchip Ide Devices
Integrated Peripherals Chapter: BIOS Settings 5.6.1 OnChip IDE Devices Phoenix – AwardBIOS CMOS Setup Utility OnChip IDE Device IDE HDD Block Mode [Enabled] Item Help IDE Primary Master PIO [Auto] IDE Primary Slave [Auto] IDE Primary Master UDMA [Auto] IDE Primary Slave UDMA [Auto] ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help... -
Page 48: Onboard Devices
Chapter: BIOS Settings Integrated Peripherals 5.6.2 Onboard Devices Phoenix – AwardBIOS CMOS Setup Utility Onboard Device Intel HD Audio Controller [Auto] Item Help USB Client Routing [Disabled] Onboard LAN Controller [Enabled] Console Redirect [Disabled] x Serial Port Mode 115200,8,n,1 x After Boot Enabled x Flow Control Signals Ignore... -
Page 49: Pci Express Root Port Function
Integrated Peripherals Chapter: BIOS Settings 5.6.3 PCI Express Root Port Function Phoenix – AwardBIOS CMOS Setup Utility PCI Express Root Port Func PCI Express Port 1 [Auto] Item Help PCI Express Port 2 [Auto] ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü... -
Page 50: Usb Device Setting
Chapter: BIOS Settings Integrated Peripherals 5.6.4 USB Device Setting Phoenix – AwardBIOS CMOS Setup Utility USB Device Setting USB 1.0 Controller [Enabled] Item Help USB 2.0 Controller [Enabled] USB Operation Mode [High Speed] USB Keyboard Function [Enabled] USB Storage Function [Enabled] *** USB Mass Storage Device Boot Setting ***... -
Page 51: Power Management Setup
Power Management Setup Chapter: BIOS Settings 5.7 Power Management Setup Phoenix – AwardBIOS CMOS Setup Utility Power Management Setup Power Supply Type [AT] Item Help ACPI Function Enabled ACPI Suspend Type S3(STR) Soft-Off by PWR-BTTN [Instant-Off] ► HPET Feature [Press Enter] ►... -
Page 52: Hpet Feature
Chapter: BIOS Settings Power Management Setup 5.7.1 HPET Feature Phoenix – AwardBIOS CMOS Setup Utility HPET Feature HPET Support [Enabled] Item Help ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü HPET Support Options: Enabled / Disabled page 52... -
Page 53: Intel Dts Feature
Power Management Setup Chapter: BIOS Settings 5.7.2 Intel DTS Feature Phoenix – AwardBIOS CMOS Setup Utility Intel DTS Feature Intel DTS Feature [Enabled] Item Help DTS Active temperature [ 55°C] Passive Cooling Trip Point [ 95°C] Passive TC1 Value [ 2] Passive TC2 Value [ 0] Passive TSP Value... -
Page 54: Pnp/Pci Configuration
Chapter: BIOS Settings PnP/PCI Configuration 5.8 PnP/PCI Configuration Phoenix – AwardBIOS CMOS Setup Utility PNP/PCI Configurations Init Display First [PCI Slot] Item Help Reset Configuration Data [Disabled] Resources Controlled By [Manual] ► IRQ Resources [Press Enter] PCI/VGA Palette Snoop [Disabled] ** PCI Express relative items ** Maximum Payload Size... -
Page 55: Irq Resources
PnP/PCI Configuration Chapter: BIOS Settings 5.8.1 IRQ Resources Phoenix – AwardBIOS CMOS Setup Utility IRQ Resources IRQ-3 assigned to [PCI Device] Item Help IRQ-4 assigned to [PCI Device] IRQ-5 assigned to [PCI Device] IRQ-7 assigned to [PCI Device] IRQ-9 assigned to [PCI Device] IRQ-10 assigned to [PCI Device]... -
Page 56: Pc Health Status
Chapter: BIOS Settings PC Health Status 5.9 PC Health Status Phoenix – AwardBIOS CMOS Setup Utility PC Health Status Shutdown Temperature [Disabled] Item Help Temp. Board 40°C Temp. CPU 34°C CPU Core 0.84V Poulsbo 1.04V CPU VTT 1.04V +1.8 V 1.80V +3.3 V 3.44V... - Page 57 PC Health Status Chapter: BIOS Settings ü Fan3 Speed Options: none ü On Die Digital Temp. Options: none Advanced Digital Logic ADLS15PC page 57...
-
Page 58: Load Fail-Safe Defaults
Chapter: BIOS Settings Load Fail-Safe Defaults 5.10 Load Fail-Safe Defaults If this option is chosen, the last working setup is loaded from flash. Working means that the setup setting has already led to a successful boot process. At the first setting of the BIOS setup, safe values are loaded which lets the board boot. This status is reached again, if the board is reprogrammed with the corresponding flash-program and the required parameters. -
Page 59: Bios Update
Exit Without Saving Chapter: BIOS update 6 BIOS update If a BIOS update becomes necessary, the program “AWDFLASH.EXE” of the company Phoenix is used for this. It is important, that the program is started from a DOS environment without a virtual memory manager such as for example “EMM386.EXE”. -
Page 60: Mechanical Drawing
Chapter: Mechanical Drawing PCB: Mounting Holes 7 Mechanical Drawing 7.1 PCB: Mounting Holes A true dimensioned drawing can be found in the PC/104 specification. All dimensions are in mil (1 mil = 0,0254 mm) page 60 Advanced Digital Logic ADLS15PC... -
Page 61: Pcb: Pin 1 Dimensions
PCB: Pin 1 Dimensions Chapter: Mechanical Drawing 7.2 PCB: Pin 1 Dimensions All dimensions are in mil (1 mil = 0,0254 mm) Advanced Digital Logic ADLS15PC page 61... -
Page 62: Pcb: Heat Sink
Chapter: Mechanical Drawing PCB: Heat Sink 7.3 PCB: Heat Sink All dimensions are in mil (1 mil = 0,0254 mm) page 62 Advanced Digital Logic ADLS15PC... -
Page 63: Heat Spreader: Chassis Mount
Heat Spreader: Chassis Mount Chapter: Mechanical Drawing 7.4 Heat Spreader: Chassis Mount The figure below includes all hole spacing for each heat spreader available and can be used to aid in mating the heat spreader to a bulkhead or chassis. Dimensions are in inch (1 in = 2.54cm;... -
Page 64: Technical Data
Chapter: Technical Data Electrical Data 8 Technical Data 8.1 Electrical Data Power Supply: Board: 5 Volt +/- 5% RTC: >= 3 Volt Electric Power Consumption: Board: RTC: <= 10µA 8.2 Environmental Conditions Temperature Range: Operating: -25°C to +70°C (using approved thermal solution) -40°C up to +85°C (when pre-screened for use with an approved thermal solution) Storage:... -
Page 65: Thermal Specifications
Thermal Specifications Chapter: Technical Data 8.3 Thermal Specifications The board is specified to operate in an environmental temperature range from -25°C to +70°C (using approved thermal solution). Maximum die temperature is 90°C. To keep the processor under this threshold an appropriate cooling solution needs to be applied. This solution has to take typical and maximum power consumption into account. -
Page 66: I Annex: Post-Codes
Annex: Post-Codes I Annex: Post-Codes Code Description The Xgroup-program code is written in the random access memory from address 1000:0 onwards. Initialise Variable/Routine "Superio_Early_Init". 1. Cancel display 2. Cancel CMOS error flag 1. Cancel 8042 (keyboard controller) Interface Register 2. Initialising and self testing of 8042 (keyboard controller) 1. - Page 67 Annex: Post-Codes Code Description 1. Determination of the entire memory size by revising the last 32-Bit double word of each 64k memory segment. 2. Program “write allocation” at AMD K5-CPUs. 1. Program MTRR at M1 CPUs 2. Initialise level 2-cache at CPUs of the class P6 and set the “cacheable range” of the random access memory.
- Page 68 Annex: Post-Codes Code Description Reading in of the hard disk boot sector for the inspection through the internal anti virus program (trend anti virus code) 1. Enabling of level 2 cache 2. Setting of the clock speed during the boot process 3.
-
Page 69: Annex: Resources
Annex: Resources II Annex: Resources A IO Range The used resources depend on setup settings. The given values are ranges, witch are fixed by AT compatibility. Other IO ranges are used, which are dynamically adjusted by Plug & Play BIOS while booting. Address Function 0-FF... -
Page 70: Dpci Devices
Annex: Resources Address Function IRQ12 PS/2 Mouse IRQ13 IRQ14 IDE Primary IRQ15 D PCI Devices All listed PCI devices exist on the board. Some PCI devices or functions of devices may be disabled in the BIOS setup. Once a device is disabled other devices may get PCI bus numbers different from the ones listed in the table.
