Models:

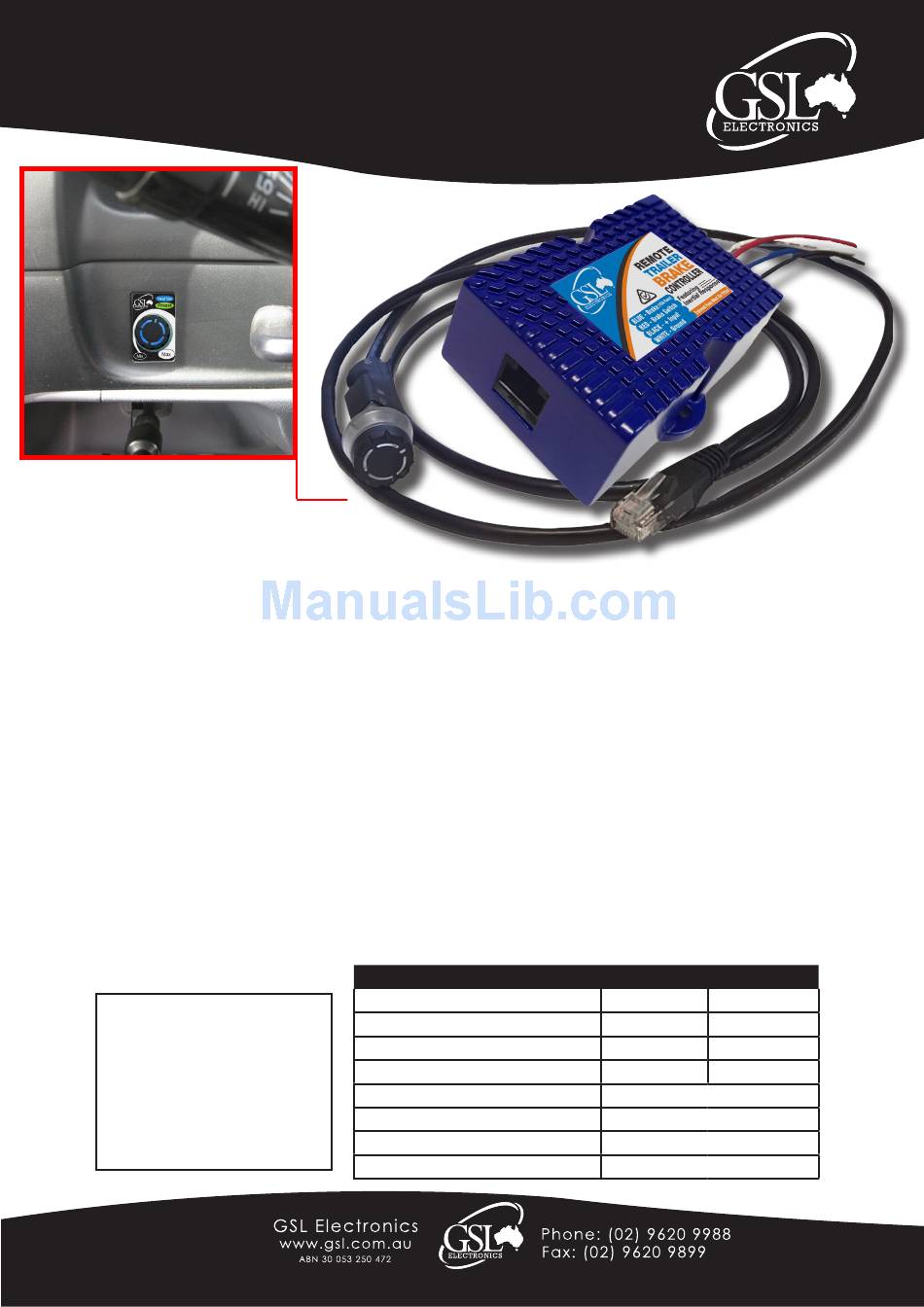

IRBC-12 & IRBC-24
Page 1 of 4
(Standard installation)
The IRBC range is a new generation of brake controllers that can operate in both Inertial controlled and
Preset brake force utilising microprocessor and Tri-axis Accelerometer technologies. It is a compact,
rugged, electronic brake controller and is easily installed with the connection of four wires and the easy
plug in remote control. Easily adjustable via the remote control which can be located up to 1m from the
controller. Both models also incorporate an over-ride function for manual control.
Designed for both single and dual axle trailers using negative earth (ground) systems only.
Available in 12V & the new 24V version eliminating the need for a separate reducer on 24V systems.
Features :
• LED remote indication for brake connected and brake on.
• Small, easy fit single hole dash board mounting Knob with LED built in on 1M of cable fitted with a plug to
mate main unit.
• Easy adjustment via knob rotation in remote
• Inertial or PWM selection Via Knob
• Convenient Over-Ride via knob push in remote
• Can Be mounted at Any Angle.
• Compatible with single filament /Brake bulb systems
Product comes with:
1x Retaining Nut ( On Unit )
1x Washer ( On Unit )
1x Control Knob
1x Remote Decal
2x Mounting Screws
Page 1 of 4
Remote Brake Controllers
Installation & Operating Instructions
Please read these instructions before use
Specifications
Minimum Input Voltage
Nominal Input Voltage
Maximum Input Voltage
Suitable For 12V Trailer Brakes
No Current Load
Maximum Load
Dimensions
Weight
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
12V and 24V
IRBC-12
9 VDC
12 VDC
15 VDC
Yes
30 mA
2 Axle / 12A Avg
30mm x 57mm x 90mm
200g
IRBC -12
IRBC-24
18 VDC
24 VDC
30 VDC
Yes
IRBC-r3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for GSL IRBC-12
- Page 1 Models: 12V and 24V IRBC-12 & IRBC-24 Remote Brake Controllers Page 1 of 4 Installation & Operating Instructions Please read these instructions before use (Standard installation) IRBC -12 The IRBC range is a new generation of brake controllers that can operate in both Inertial controlled and Preset brake force utilising microprocessor and Tri-axis Accelerometer technologies.
- Page 2 Please read these instructions before use Note : The IRBC-12 and IRBC-24 are load activated and can not be tested without load. At no load, output reading of high voltage will register. Also the output voltage is PULSED, so it cannot be measured with a volt meter or test light.
- Page 3 Models: 12V and 24V IRBC-12 & IRBC-24 Remote Brake Controllers Page 3 of 4 Installation & Operating Instructions Please read these instructions before use Wire Guide White Wire Negative Battery Brake Blue Wire 15A Fuse* Black Wire Positive Battery Red Wire Brake Switch * Please Note: An External Fuse Must Be Fitted (Not Supplied).
- Page 4 GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a period of two (2) years from the date of the original purchase by the customer as marked on the customer’s original invoice.
