SnapNrack Array Skirt Installation Manual

Advertisement

Quick Links

Solar Mounting Solutions
Materials Included
SnapNrack Array Skirt
SnapNrack Array Skirt Frame Mount
SnapNrack Array Skirt Splice
SnapNrack Array Skirt End Cap Pair
Hardware Description
Array Skirt Frame Mount
Dimensions
Material
Compatibility
1

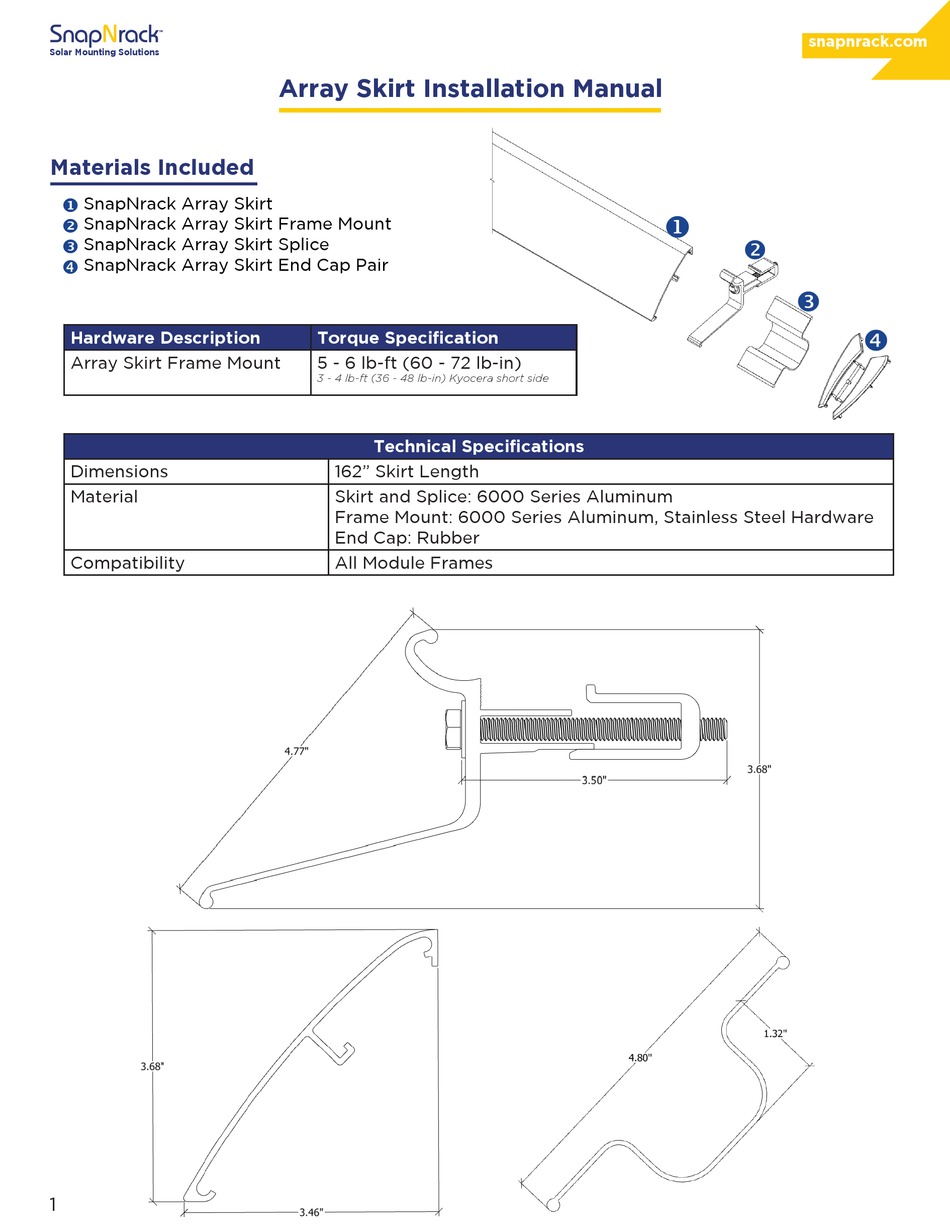

Array Skirt Installation Manual
Torque Specifi cation
5 - 6 lb-ft (60 - 72 lb-in)
3 - 4 lb-ft (36 - 48 lb-in) Kyocera short side
Technical Specifi cations
162" Skirt Length
Skirt and Splice: 6000 Series Aluminum
Frame Mount: 6000 Series Aluminum, Stainless Steel Hardware
End Cap: Rubber
All Module Frames
snapnrack.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Array Skirt and is the answer not in the manual?

Questions and answers

Summary of Contents for SnapNrack Array Skirt

  • Page 1 SnapNrack Array Skirt  SnapNrack Array Skirt Frame Mount  SnapNrack Array Skirt Splice  SnapNrack Array Skirt End Cap Pair  Hardware Description Torque Specifi cation Array Skirt Frame Mount 5 - 6 lb-ft (60 - 72 lb-in) 3 - 4 lb-ft (36 - 48 lb-in) Kyocera short side Technical Specifi...
  • Page 2: Installation Instructions

    Torque Wrench 1/2” Socket Circular Saw or Portable Band Saw Tape Measure Installation Instructions 1. Locate array skirt mounts using the following span and cantilever rules: Rail Span (ft) Skirt Mount Span (ft) Max Overhang (in)  2. With bolt backed out, rest fl at top side of skirt mount onto bottom edge of module frame.
  • Page 3   6. If array skirt needs to be cut, it can be done prior to installation at ground level or on the roof after installation. 6A. If cutting skirts prior to installation, a circular saw with an appropriate metal-cutting blade is recommended.
  • Page 4 Solar Mounting Solutions Installation Instructions 7. Rest array skirt on top hook of skirt mounts, then push lower hook up and lock into bottom of array skirt.  8. If a splice is required, install by pushing it equally into lengths of array skirt and butting ends together.
