HS-Technik PRO-M Operating Instructions Manual

Nutbee series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

OPERATING INSTRUCTIONS

NutBee®-PRO-M
Programmable battery blind rivet nut and
blind rivet screw setting tool
PRO-M
HST-NR-PRO-M
Release date:
PC-Software:
Firmware:
July 2016
2.0.2.13
2.3.6.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-M and is the answer not in the manual?

Questions and answers

Summary of Contents for HS-Technik PRO-M

  • Page 1: Operating Instructions

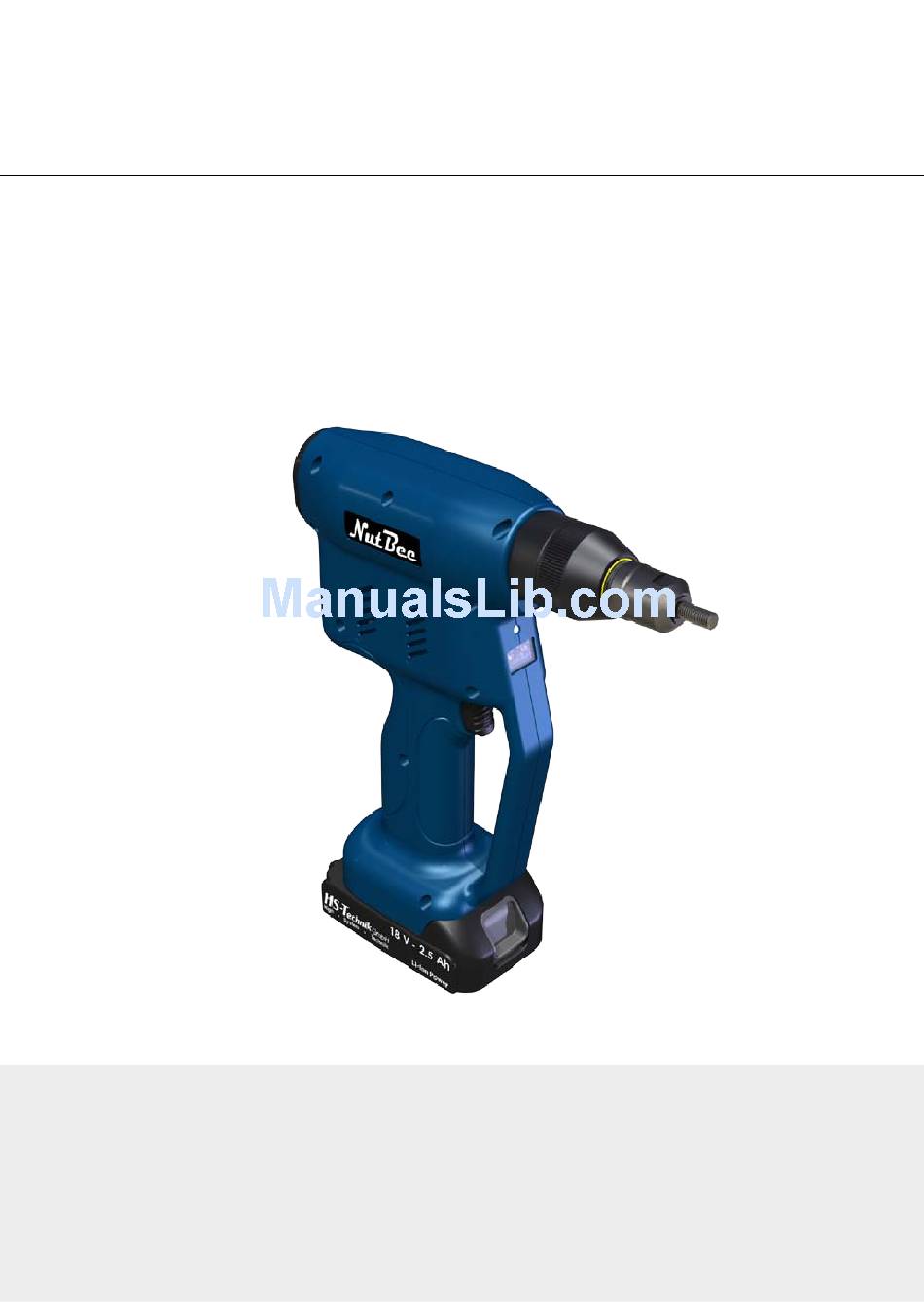

    OPERATING INSTRUCTIONS NutBee®-PRO-M Programmable battery blind rivet nut and blind rivet screw setting tool PRO-M HST-NR-PRO-M Release date: July 2016 PC-Software: 2.0.2.13 Firmware: 2.3.6.0...

  • Page 2: Table Of Contents

    4.3.4. Setting the nose piece 4.4.0. Place blind rivet - 2 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 3 9.3.0. Intermediate shaft module - NRIV-B300 9.4.0. Coupling module - NRIV-B400-G ec cOnfORMity declaRatiOn - 3 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 4: Symbols And General Hints

    The tool locks up when it is overladed or jams in the workpiece. - 4 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 5 Please comply with other national and international requirements. - 5 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 6 9. Li-Ion battery 5. Fast exchange nose assembly 10. Adjustment buttons - 6 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 7: General Information

    • complying with the inspection and maintenance work. Any other use beyond this is not considered proper intended use. HS-Technik GmbH is not liable for any damages resulting from non-compliance. 2.3.0. iMPROPeR uSe We are not liable for damages and operational errors that result from non- compliance with these operating instructions or improper use.

  • Page 8: Warranty And Liability

    God - 8 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 9: Copyright

    It contains the relevant rules and information, which may not be: • duplicated • distributed or • otherwise shared, either in whole or in part. The copyright for this document remains with HS-Technik GmbH. Address of the manufacturer: High System Technik Im Martelacker 12 D-79588 Efringen-Kirchen...

  • Page 10: Basic Safety Information

    All possible safety risk factors must be addressed immediately. - 10 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 11: Electrical Hazards

    (with power cord) and battery-powered tools (without a power cord). - 11 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 12: Workplace Safety

    Keep the tool away from heat, oil, sharp edges or moving parts. - 12 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 13: Personal Safety

    Power tools that cannot be switched on and off are dangerous and must be repaired. - 13 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 14 Do not use a tool if the start switch does not function properly. - 14 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 15: Service

    In both cases, the residual current flow may completely discharge and ruin the battery. - 15 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 16 Clean the battery contacts regularly using cotton swabs dipped in alcohol. - 16 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 17: Battery Chargers

    3.7.0. StRuctuRal MOdificatiOnS No changes, additions or modifications may be made to the tool without the permission of the manufacturer. All modifications require written confirmation by HS-Technik GmbH. NOTICE Should repairs or maintenance be required, use only original replacement parts.

  • Page 18: Cleaning The Tool And Disposal

    Use the tool with care. Proper working conditions should exist. Maintain concentration while working. - 18 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 19: Commissioning

    1 – Clip 2 – Remove battery - 19 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 20: Trigger

    Do not clean the LED with aggressive cleaning agents! - 20 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 21: Operating The Riveting Tool

    Ensure that the riveting device is not damaged and no parts are missing. • The battery used must be approved by HS-Technik GmbH for use with the riveting device. • The battery should be fully charged. DANGER Check the tool for proper functionality without a blind rivet nut or blind rivet screw.

  • Page 22: Pulling Heads

    - 22 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 23: Nosepiece Components

    NRIV-MM8 NRIV-GM5/16-18 HST-NR-3/8-16 NRIV-MM10 NRIV-GM3/8-16 For blind rivet nuts - 23 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 24: Setting The Nose Piece

    Locking with locking nut Additional fixture with a screw - 24 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 25: Place Blind Rivet

    - 25 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 26: Operation

    4.5.0. OPERATION To ensure the SAFETY and RELIABILITY of the product, repairs, all other poten- tial maintenance or adjustments should be performed by HS-Technik GmbH or an authorized specialist. - 26 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90...

  • Page 27: Force / Power Setup Values

    Max. processes 1.680 1.440 1.152 per day - 27 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 28: Force Switch

    HST-Tool-Manager and the force for each programm will be set in the HST-Tool-Manager. The force table is only activated from the beginning in the HST-NR version. At the HST-NR-PRO-M it can be activated to work with the tool if there are problems with the controller or Wi-fi connection. WARNING If the tool has to be used without a force switch, the force switch (the table value) must be set to “00”...
  • Page 29 More information you´ll find in the manual of the HST-Tool-Manaager. - 29 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 30: Display

    5 different connection statuses. red: no connection - 30 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 31 Shows the text for the current status or expected action. - 31 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 32: Displays

    Battery status: 5% - 10% Battery status: less than 5% - 32 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 33 Symbol can be a car or plane. - 33 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 34 Display settings HST-Tool-Manager: Signals - OLED-display - final value - 34 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 35 - 35 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 36 Tool is in standby mode. Can be reactivated by pushing the trigger. - 36 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 37 Previously lost connections to the network were restored. Tool can´t find the Wi-fi network. - 37 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 38 Maximum allowable current exceeded, contact the manufacturer. Temperature of the controls exceeded, contact manufacturer. - 38 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 39 In this step force actual needs to be deactivated. - 39 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 40: Adjust Setting Force Via Display

    To ensure the SAFETY and RELIABILITY of the product, repairs, all other poten- tial maintenance or adjustments should be performed by HS-Technik GmbH or an authorized specialist. To change the setting force of the tool, proceed as follows: 1.
  • Page 41 More settings must be made in the HST-Tool-Manager. Chapter: force switch - 41 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 42: Choose A Program If There Are Problems With The Controller

    The emergency strategy automatically stops if the battery is removed and reconnected to the tool. - 42 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 43: Setting Force For Blind Rivet Nuts And Screws

    These values should only be used as reference points for setting the tool. - 43 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 44: Setting Force Table (Only If Force Switch Is Activated)

    3,30 5,40 9,00 9,20 3,40 5,50 3,50 5,60 9,40 - 44 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 45 HS-Technik GmbH. 13,90 14,20 14,60 15,00 15,40 15,80 - 45 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 46: Unwinding

    You may injure yourself. - 46 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 47: Tool Jammed Or Blocked

    - 47 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 48: Tool Reactivation After Standby

    The tool can be reactivated from this mode, if the battery is installed, by pressing the start trigger. - 48 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 49: Maintenance

    Clean the contacts on the battery and battery mount on the tool as needed using a cloth, cotton swabs and some alcohol. - 49 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 50: Cleaning The Pulling Head

    Then check the mandrel and replace if necessary. Then reassemble the device in reverse order. - 50 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 51 General information: Maintenance may only be performed by trained specialists. Only original HS-Technik replacement parts may be installed. Document maintenance work with - the serial number of the tool - the date...

  • Page 52: Replacing The Threaded Mandrel

    This can be performed in conjunction with the general maintenance and control of the tool. The calibration can be performed by HS-Technik GmbH. - 52 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90...

  • Page 53: Storage

    Dimensions (L x B x H) 230 x 66,5 x 259 mm - 53 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 54: Accessories

    We will gladly assist you if you have questions. you can request an exploded drawing and spare parts list with the article no. at info@hs-technik.com or via telephone +49 (0) 7628 / 9111-0. 8.2.0. acceSSORieS PRIv-B8 NutBee series mounting assembly ®...
  • Page 55 TAC series offer more organization. Tools, consumables and accessories can be stored easily. - 55 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 56: Drawings

    9. dRawingS 66,5 Maße in mm - 56 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 57: Carrier Module - Nriv-B100-G

    9.1.0. caRRieR MOdule - nRiv-b100-g 9.2.0. dRive unit MOdule - nRiv-b200-g-M - 57 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 58: Intermediate Shaft Module - Nriv-B300

    9.3.0. inteRMediate Shaft MOdule - nRiv-b300 9.4.0. cOuPling MOdule - nRiv-b400-g - 58 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...

  • Page 59: Ec Conformity Declaration

    Im Martelacker 12, D-79588 Efringen-Kirchen H.-Martin Hanke Manager Date: 22.06.2016 - 59 - Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90 E-Mail: info@hs-technik.com – Web: www.hs-technik.com...
  • Page 60 High System Technik Im Martelacker 12 D-79588 Efringen-Kirchen Phone: +49 (0) 76 28 - 91 11- 0 Fax: +49 (0) 76 28 - 91 11- 90 E-Mail: info@hs-technik.com Internet: www.hs-technik.com...
