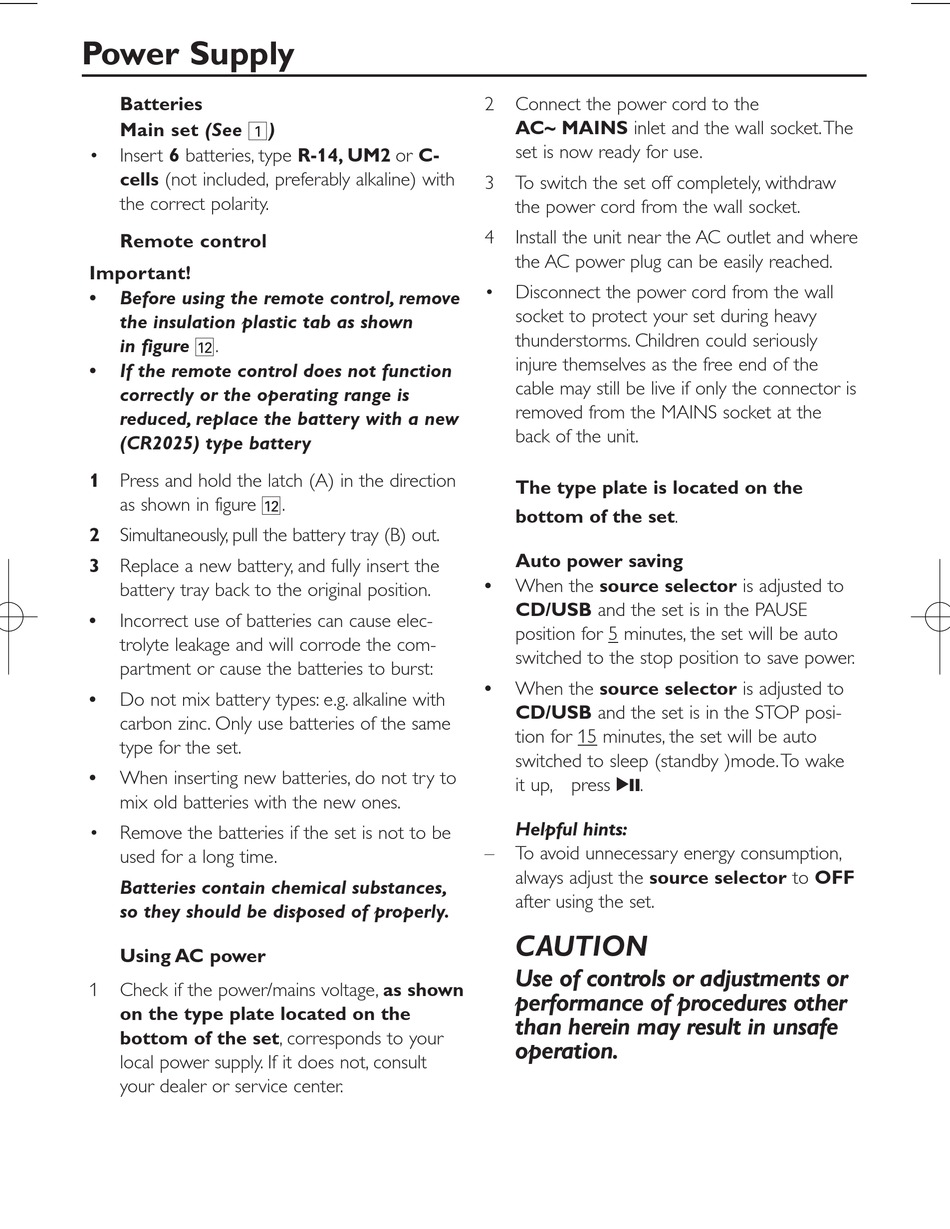

Power Supply - Philips SOUNDMACHINE AZ1836 User Manual

Power Supply

Batteries
Main set (See 1)
• Insert 6 batteries, type R-14, UM2 or C-
cells (not included, preferably alkaline) with
the correct polarity.
Remote control
Important!
• Before using the remote control, remove
the insulation plastic tab as shown
in figure @.
• If the remote control does not function
correctly or the operating range is
reduced, replace the battery with a new
(CR2025) type battery
1 Press and hold the latch (A) in the direction
as shown in figure @.
2 Simultaneously, pull the battery tray (B) out.
3 Replace a new battery, and fully insert the
battery tray back to the original position.
• Incorrect use of batteries can cause elec-
trolyte leakage and will corrode the com-
partment or cause the batteries to burst:
Do not mix battery types: e.g. alkaline with
•
carbon zinc. Only use batteries of the same
type for the set.
When inserting new batteries, do not try to
•
mix old batteries with the new ones.
• Remove the batteries if the set is not to be
used for a long time.
Batteries contain chemical substances,
so they should be disposed of properly.
Using AC power
1 Check if the power/mains voltage, as shown
on the type plate located on the
bottom of the set, corresponds to your
local power supply. If it does not, consult
your dealer or service center.
2 Connect the power cord to the
AC~ MAINS inlet and the wall socket.The
set is now ready for use.
3 To switch the set off completely, withdraw
the power cord from the wall socket.
4 Install the unit near the AC outlet and where
the AC power plug can be easily reached.
• Disconnect the power cord from the wall
socket to protect your set during heavy
thunderstorms. Children could seriously
injure themselves as the free end of the
cable may still be live if only the connector is
removed from the MAINS socket at the
back of the unit.
The type plate is located on the
bottom of the set.
Auto power saving
When the source selector is adjusted to
•
CD/USB and the set is in the PAUSE
position for 5 minutes, the set will be auto
switched to the stop position to save power.
When the source selector is adjusted to
•
CD/USB and the set is in the STOP posi-
tion for 15 minutes, the set will be auto
switched to sleep (standby )mode.To wake
it up, press 2;.
Helpful hints:
– To avoid unnecessary energy consumption,
always adjust the source selector to OFF
after using the set.
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in unsafe
operation.
