Montage-, Installations- und Bedienungsanleitung
Assembly and operating instructions
Manuel d'installation et de maintenance
Montage- en bedieningshandleiding
Montage- och hanteringsanvisning
Istruzioni di montaggio e funzionamento
Instrucciones de montaje
Schaltschrank-Heizgerät SK
Panel heater SK
Resistance chauffante SK
Schakelkastverwarmingen SK
Värmeelement
för apparatskåp SK
Riscaldatore anticondensa SK
Resistencia calefactora SK
SK 3105.xxx
Advertisement
Related Manuals for Rittal 3105.310
Summary of Contents for Rittal 3105.310

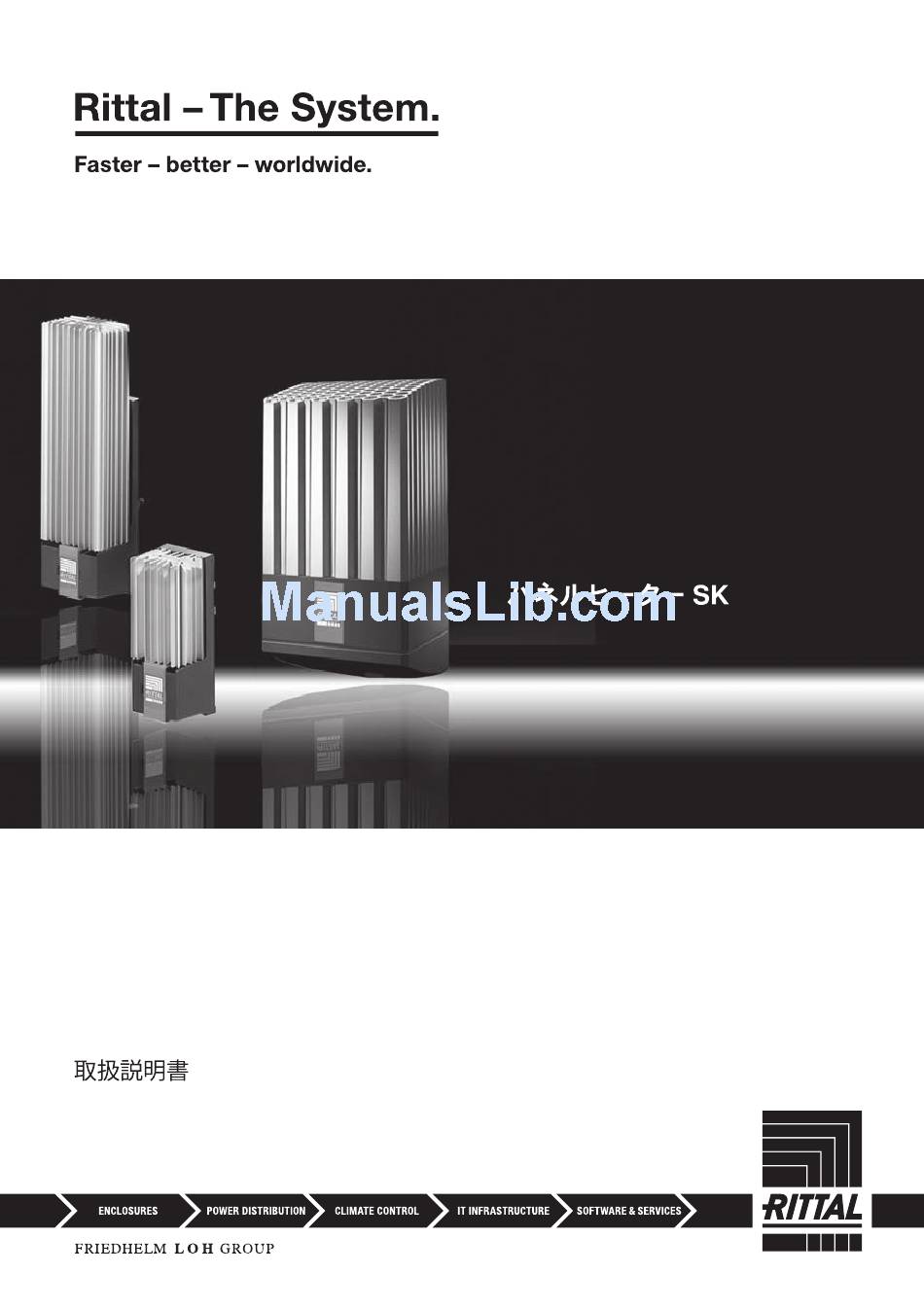

- Page 1 Schaltschrank-Heizgerät SK Panel heater SK Resistance chauffante SK Schakelkastverwarmingen SK Värmeelement för apparatskåp SK Riscaldatore anticondensa SK Resistencia calefactora SK SK 3105.xxx Montage-, Installations- und Bedienungsanleitung Assembly and operating instructions Manuel d’installation et de maintenance Montage- en bedieningshandleiding Montage- och hanteringsanvisning Istruzioni di montaggio e funzionamento Instrucciones de montaje...
- Page 3 If these clearances are observed, the ambi- ent temperature does not rise above 65 ˚C. 2.1 Snap-type fastening onto a 35 mm support rail DIN EN 50 022 (Fig. 1.1). 2.2 Screw fastening onto the mounting plate (Fig. 1.2). Rittal enclosure heater assembly instructions...
- Page 4 3.1 Proper usage usage. Within this period, the returned unit will be repaired in the factory or replaced free Rittal enclosure heaters were developed and of charge. designed in accordance with the state of the Unauthorised utilisation or incorrect connec- art and the recognised rules governing tech- tion will invalidate the manufacturer’s guaran-...
- Page 5 SK 3105.310 – SK 3105.370 SK 3105.380 – SK 3105.430 1 x SK 3105.310 – 3105.350 2 x SK 3105.360 – 3105.370 Abb. 1.1: Schnappbefestigung auf 35 mm-Tragschiene DIN EN 50 022 Fig. 1.1: Snap-type fastening onto a 35 mm support rail DIN EN 50 022 Fig.
- Page 6 Demontage der Geräte Demontage Removal of the units Smontaggio dell’apparecchio Démontage des appareils Desmontaje de los aparatos ユニットの取外し Demontage van de verwarmingen...
- Page 7 SK 3105.310 – SK 3105.370 SK 3105.380 – SK 3105.430 υ υ SK II SK II 110 – 230 V AC, 50/60 Hz, DC 110 – 230 V AC, 50/60 Hz Schaltplan Heizung Schaltplan Heizung mit Lüfter Wiring plan – Heater Wiring plan –...
- Page 8 SK 3105.310/.320 d = 5 mm SK 3105.330 – SK 3105.350 SK 3105.360/.370 Befestigung auf Montageplatte Befestigungsmöglichkeiten auf Tragschiene Fastening onto a mounting plate Fastening onto a support rail Fixation sur une plaque de montage Fixation sur un rail porteur...
- Page 10 Enclosures Power Distribution Climate Control IT Infrastructure Software & Services RITTAL GmbH & Co. KG Postfach 1662 D-35726 Herborn Phone +49(0)2772 505-0 Fax +49(0)2772 505-2319 E-mail: info@rittal.de www.rittal.com...
