Quick Start Guide

Version: 0.1
Download full user manual at www.afinia.com/support

Advertisement

loading
Need help?

Need help?

Do you have a question about the H800+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Afinia H800+

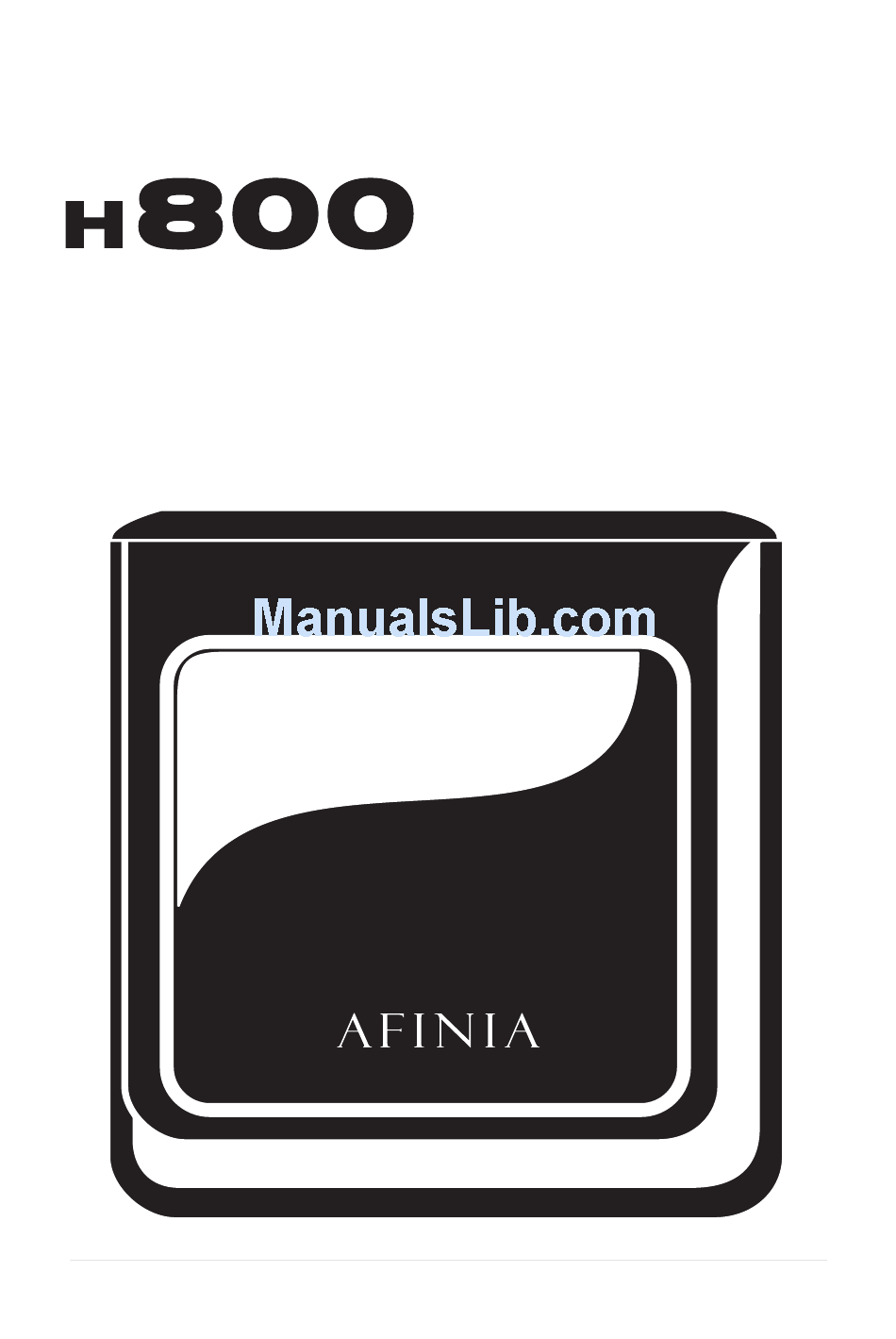

  • Page 1: Quick Start Guide

    Quick Start Guide Version: 0.1 Download full user manual at www.afinia.com/support...
  • Page 3: Table Of Contents

    Index Unpacking Install Print Board Install Software Setup Printer Setup Wi-Fi Connect Printer Through Wi-Fi Load and Print 3D Model...
  • Page 4 Accessory Pack Contents Verify the following items are in the H800+ packaging. Filament USB Cable Power Cord Power Supply Putty Knife FR-4 (Cell Perf) Boards (Four (4) total) Two (2) Flex Boards with BuildTak surface Two (2) Cell Perf Boards without BuildTak Snipping Pliers Nozzle Wrench Spare Nozzle...
  • Page 5: Unpacking

    Unpacking Remove foams from the H800+. Note: Lay down the foam at the bottom, then turn it 90 degrees to remove. There is no need to lift the platform to remove the bottom foams. 90° Cut and remove the nylon ties (yellow labelled).
  • Page 6: Install Print Board

    Install Print Board Position the perf board on the build platform, and make sure that all the flat head screws on the heating plate are inside the holes of the perf board. Press the perf board and the heating plate together at the lower left and the lower right corners, then slide the perf board towards the back of the unit to lock it onto the heating plate.
  • Page 7: Install Software

    Install Software Download and install the latest Studio software from the support section of the Afinia website at www.afinia.com/support/downloads/. For the iPad or iPhone app, please visit the Apple app store in your iOS device and search for “Afinia 3D”.
  • Page 8: Setup Printer

    Setup Printer In the “Build” menu, click “Calibrate” , then “Auto Level” to initiate the auto leveling function. This process will take a minute to complete. Next, go to the Maintenance Section, and click “Extrude”. 500g When reaching printing temperature, the printer will beep two times and start to extrude.
  • Page 9: Setup Wi-Fi

    Setup Wi-Fi Open the “Settings” menu Go to “Printer” tab, select connected printer and click the stacked lines button to see printer details. Choose Network to connect to a Wi-Fi network and enter the password for the Wi-Fi network. Your_Network Your_Network...
  • Page 10: Connect Printer Through Wi-Fi

    Connect Printer Through Wi-Fi Disconnect the USB cable. In the “Printer” section, all the printers in the network will be displayed. Language Printer JSZ_BOX+_01 Click the H800+ you want to connect. If connected successfully, the printer will have a check mark displayed.
  • Page 11: Load And Print 3D Model

    Load and Print 3D Model Click the “+” button, and choose an .STL or .UP3 file to load into the program. Build open cancel Use the wheel to Click “Print”. adjust the model’s size, location, and rotation. (see full manual details) The progress of slicing and data processing is shown on the status bar.
  • Page 12 AFINIA 3D 8150 Mallory Court, PO BOX 846 Chanhassen, MN 55317 youtube.com/afinia3dprint Phone Support: 952-279-2643 Support: support@afinia.com Web: www.afinia.com...
