Summary of Contents for Tatung TX-3000

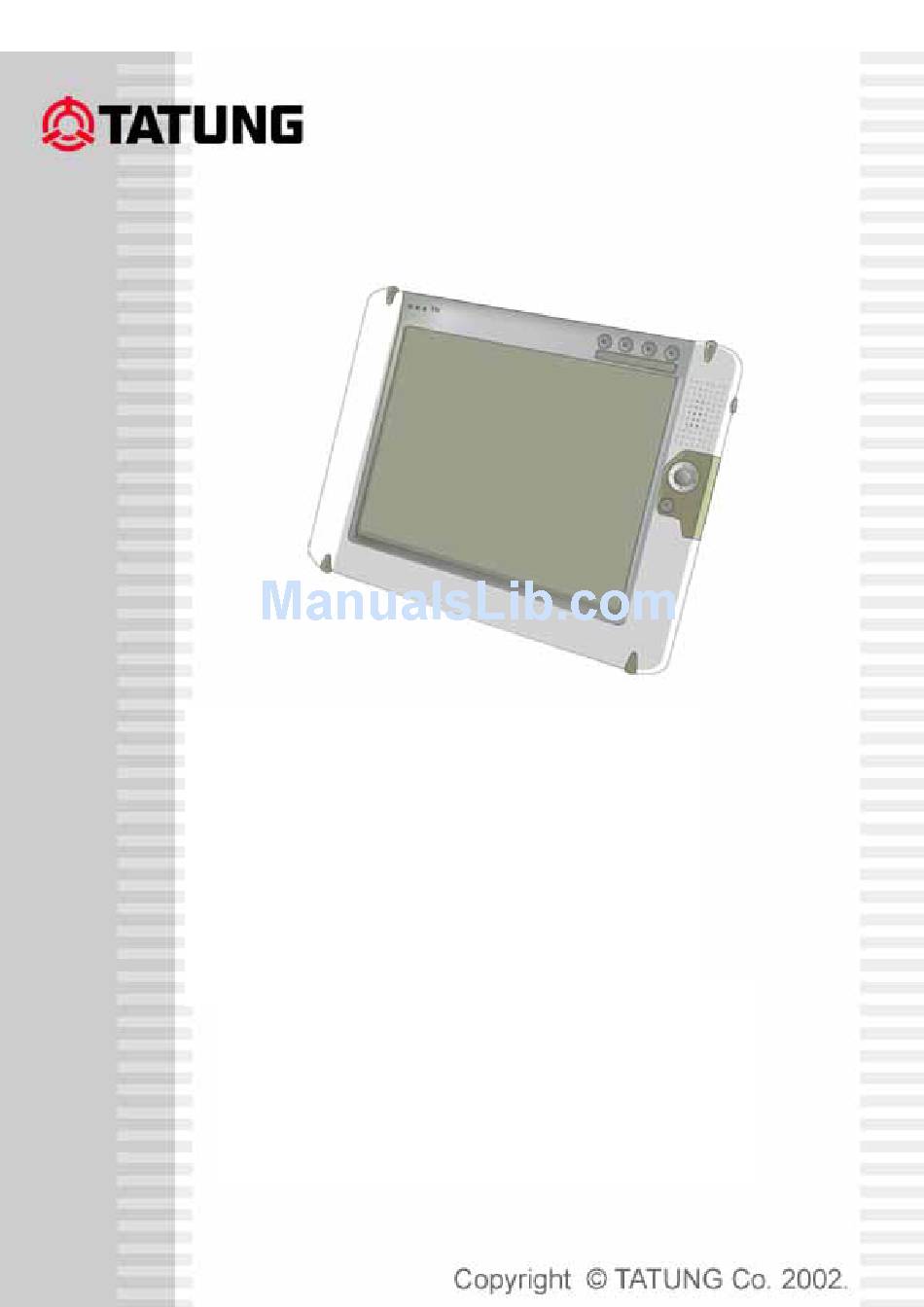

- Page 1 TATUNG Wireless Thin Client TX-3000 2006/8/23 page1...
- Page 2 TATUNG Co. makes no warranty of any kind with regard to this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. TATUNG Co. shall not be liable for any errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this document or the examples herein.
- Page 3 Do not expose the battery pack to other metal objects. • Do not use or place TX-3000 near sources of heat or expose it to direct sunlight for an extended period of time. Store it in a cool and dry place.
-
Page 4: Table Of Contents
2. Equipment Checklist ............................6 3. TX-3000 Specification ............................7 4. TX-3000 Features.............................. 8 4.1 Front View of TX-3000 ..............................8 4.2 Top View of TX-3000..............................10 4.3 Left View of TX-3000..............................10 4.4 Right View of TX-3000 ............................... 11 4.5 Back View of TX-3000.............................. -
Page 5: Overview
. This wireless device is designed to support customers in building a customizable product for different vertical markets. Both first-time and experienced users can quickly learn how to operate the TATUNG Wireless Thin Client from this guide. TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 6: Equipment Checklist
2. Equipment Checklist............Carefully unpack the TATUNG Wireless Thin Client from the box. Check to make sure that the following accessories are included in the box. If you find any accessory missing or damaged, please contact TATUNG representatives immediately. TX-3000... -
Page 7: Tx-3000 Specification
Temp.:5 to 35 deg. cent., Humidity: 15 to 85% Storage Temp.:-20 to 60 deg. cent., Humidity:15 to 85% Certification Terminal FCC, CE,CB, CSA AC adapter Electrical appliance and Material Safety Law Windows XP Embedded (Default) TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 8: Tx-3000 Features
Push function key 3, and you can execute “File Manager”. Push function key 4, and you can execute “Device setting” utility, which is developed by Tatung. It includes four functions: brightness adduction, double-tap setting, button setting, and touch panel calibration. - Page 9 TX-3000 LED indicators display useful information in the battery’s current status and charge level: Indicator Power LED Battery Charge LED Wireless Signal LED LED Color Power Off or Signal Strength =0 Not Charging Suspend Mode (No signal) Signal Strength =4,5...
-
Page 10: Top View Of Tx-3000
4.2 Top View of TX-3000 1. I/O Connector 2. Reset Button 3. USB 2.0 Port 4.3 Left View of TX-3000 1. PC Card Slot (PCMCIA Type II) 2. Headphone Jack 3. Microphone Jack TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 11: Right View Of Tx-3000
(1) Pressing and holding the power button for more than 4 seconds will power off the system. (2) Quickly tapping and releasing the power button will put the system into suspend mode. Re-tap the power button again to resume operation. 2. Stylus 3. USB 2.0 Port 4. DC-In Jack TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 12: Back View Of Tx-3000
1. Battery Connector Cover 2. Battery Pack 3. Battery Latch 4. Battery Release Switch 5. IDE Compact Flash Card Slot Cover 1. Backup Battery and RTC Battery Cover 2. Back Stand / Handle TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 13: Quick-Start Procedure
5. Quick-Start Procedure ............. 5.1 Starting TATUNG TX-3000 TX-3000 has two power sources, battery or AC (using the AC/DC converter). To operate the device with AC power, perform the following steps: In order to prevent accidental data lost, we strongly suggest you to insert the battery pack. - Page 14 In jack and plug the other end into an electrical outlet. The power source can range from 100 to 240 Volts at 50 or 60 Hz. (4) Turn on TX-3000 by pressing the power button. (5) The system is turned on.
-
Page 15: Booting Logo
5.2 Booting Logo When the user turns on TX-3000, the Microsoft Windows XP embedded logo is displayed on the screen while the system is booting up. TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 16: Device Settings
5.3 Device Settings TX-3000 uses the standard Microsoft Windows XP user interface. But we create a new program which will help you to set the TX-3000 easier. TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 17: Lcd Panel Setting
(1) Press the function key 4, and you will see the “Device Setting” window (As in the figure). (2) Please kick the “Brightness” button. (3) You can adjust the brightness level according to your personal preference. TATUNG Wireless Thin Client (TX-3000) User Guide... - Page 18 (1) Press the function key 1, and you will see the “Device Setting” window (As in the figure). (2) Please kick the “Double-Tap Setting” tab. (3) You can adjust the speed and the distance of the double tap according to your personal preference. TATUNG Wireless Thin Client (TX-3000) User Guide...
- Page 19 (3) You can change the button setting for your own needs. NOTE! The default settings of these four function keys were shown as follows: Button 1: On Screen Keyboard Button 2: Internet Explorer Button 3: Windows Explorer Button 4: Device Setting TATUNG Wireless Thin Client (TX-3000) User Guide...
-
Page 20: Recalibrating The Touch-Screen
5.7 Recalibrating the Touch-Screen If the user finds that TX-3000 is responding bluntly to stylus taps, the user will need to recalibrate his screen. Follow the instructions below. (1) Launch the Device Setting Utility program. (2) Please click the “Calibration” button. - Page 21 (3) Screens 1 through 7 of device calibration. TATUNG Wireless Thin Client (TX-3000) User Guide...
-
Page 22: Using The Input Method
5.8 Using the Input Method TX-3000 provides an integrated Soft Keyboard to ease the data input. You can bring up the Soft Keyboard by pressing the function key 1. TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 23: Resetting Tx-3000
5.9 Resetting TX-3000 There are two ways of resetting TX-3000: Hardware Reset and Software Reset Hardware Reset The reset button is located on the top left of TX-3000. Software Reset You can choose to perform a system cold reset by: Start ->... -
Page 24: Software Applications
For details on commercially-available software applications, contact your local retailer or visit the Microsoft’s Web site at http://www.microsoft.com TX-3000 might not support applications written for MS-DOS or 16-bits application programs. NOTE! You should check for compatibility before using the applications. -
Page 25: Restrictions
This section describes the current status of firmware and OS image on this platform by the time when this user manual was published. Please contact an authorized TATUNG representative to obtain the most recent updates. The system was built with Windows XP Embedded SP2 execution environment. -
Page 26: Troubleshooting
Make sure the battery switch is in the lock position. TX-3000 cannot be turned on when not connected to AC The battery power may be too low to run TX-3000. Try to connect to AC power. power again. Display Related Problems... - Page 27 Try to reset the system by pressing reset button. The touch screen is damaged. Contact an authorized TATUNG representative. TX-3000 runs out of storage Reallocate TX-3000 storage and program memory management by doing space a cold boot (memory initialization). To turn off the sound in TX- Disable the volume and notifications functions.
-
Page 28: Support And Service
9. Support and Service ............Web site You may obtain the Tatung Wireless Thin Clients’ product information from http://www.tatung.com. This online service is provided free of charge. TATUNG Wireless Thin Client (TX-3000) User Guide... -
Page 29: Warranty
One-Year Limited Hardware Warranty Tatung warrants its Wireless Thin Client products to be free from defects in material and workmanship during the warranty period. If the Wireless Thin Client product proves to be defective in material or workmanship during the warranty period, Tatung will, at its sole option, repair or replace the product with a like product. - Page 30 Important: Carefully read this License Agreement and the Limited Warranty statement before operating the equipment. The rights to the software are licensed, not sold. Tatung or its licensors continue to own all intellectual property rights to the software, and you will be granted certain rights to use the software upon your acceptance of this license.
- Page 31 Tatung for some software. You agree that no warranty, free installation or free training is provided by Tatung for any copies or adaptations made by you. All copies and adaptations of the software must bear the copyright notice(s) contained in or on the original.
- Page 32 Ninety-Day Limited Software Warranty Tatung warrants for a period of 90 days from the date of purchase that the software product will execute its programming instructions when all files are properly installed. Tatung does not warrant that the software will be uninterrupted or error free.
- Page 33 Tatung shall refund the purchase price upon return of the product and destruction of all other non- removable media copies of the software product. Notice of Warranty Claims You must notify Tatung in writing of any warranty claim not later than 30 days after the expiration of the warranty period. Limitation of Warranty Tatung makes no other express warranty, whether written or oral, with respect to this product.
-
Page 34: Regulatory And Safety Notices
Responsible Party: TATUNG CO. Address: 22 Chung-Shan N. Rd. Sec. 3, Taipei, Taiwan 104, R.O.C. Telephone number: + 886-2-2586-7714 This device complies with the following Certifications, UL 60950 FCC Part 15 TUV- GSCE TATUNG Wireless Thin Client (TX-3000) User Guide... - Page 35 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Max. SAR Measurement (1g) 802.11b: 0.83 W/kg ; 802.11g: 0.624 W/kg TATUNG Wireless Thin Client (TX-3000) User Guide...
