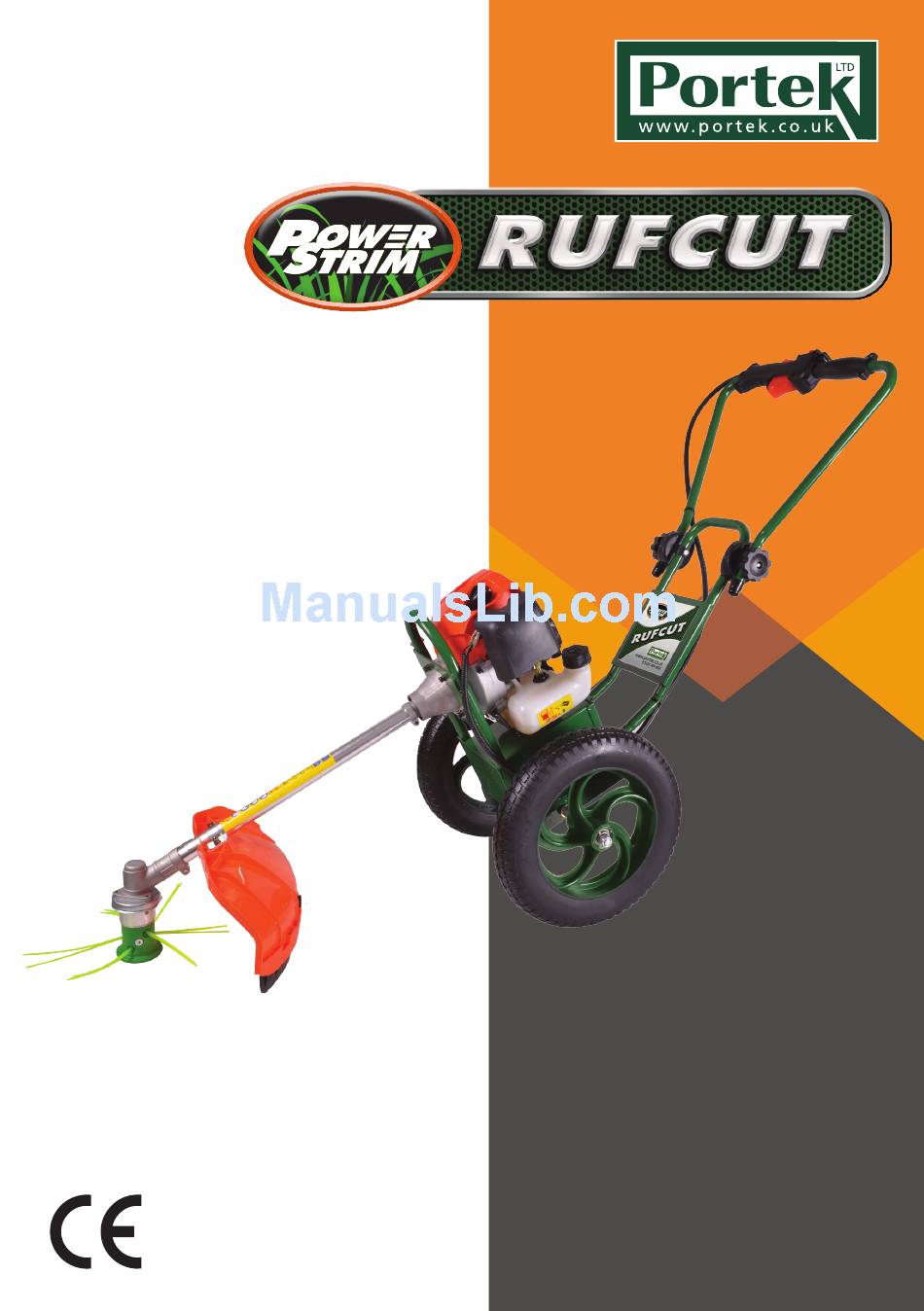

Portek Rufcut Operator's Handbook Manual

Wheeled brushcutter

Advertisement

1
Wheeled
Read and fully understand the
Brushcutter
instructions before operating
the Portek RufCut
Operators Handbook
portek.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rufcut and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Portek Rufcut

  • Page 1 Wheeled Read and fully understand the Brushcutter instructions before operating the Portek RufCut Operators Handbook portek.co.uk...
  • Page 2: Important Safety Instructions

    Proper safety precautions must be observed. Like all equipment this unit must be handled carefully DO NOT EXPOSE YOURSELF TO DANGER. Follow these general rules. Do not permit others to use the Rufcut unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation.
  • Page 3 Repair or replace as necessary before using this machine. DO NOT USE any attachment with this power head other than the ones recommended by Portek. Serious injury to the operator or bystanders could result as well as damage to the machine.
  • Page 4 Store in a locked, well ventilated area only. Use only PORTEK equipment parts when servicing the unit, this will ensure safe and proper performance of your product. These parts are available from your dealer. The use of any other accessories or attachments may cause a potential hazard to the user, damage to the machine and void this warranty.
  • Page 5: Table Of Contents

    WARNING: The cutting area is still dangerous while the machine is coasting to a stop. CONTENTS Important safety instructions 2 - 6 Specifications Assembly of RufCut Powerstrim mulching head and adjusting line Operation Exploded drawings Maintenance Troubleshooting and spare parts...
  • Page 6 Safety Equipment Requirements Essential Equipment for Your Protection The Rufcut Wheeled Brushcutter complies with all current safety standards. For your safety You must wear full protection as specified below. Head, eye and hearing protection Eye protection to EN166 – B...
  • Page 7: Specifications

    Strimmer head supplied PowerStrim 6 Mulching Head Toolkit Funnel, tools and fuel container RufCut box contents 2 stroke petrol engine mounted in frame with control handle Powerstrim6 Mulching Head with adaptor washers 2 x wheels with pneumatic tyres Steel axle complete with washers, spacer, circlips and retaining nuts...
  • Page 8 Setting up Assembly The RufCut is supplied partly assembled - to get started please follow the instructions below: 1. Remove items from the box and check the contents. The engine is already mounted in the frame. Place frame and engine in upright position.
  • Page 9: Powerstrim Mulching Head And Adjusting Line

    Brushcutter Head 4. Fitting the cutting head and stoneguard With the unit tipped up remove the shaft nut Fit the aluminium boss and replace shaft nut and lock the gearbox with allen key - left hand thread! You will not need the plastic adaptor washers.
  • Page 10 Tip the unit to access the frame to insert the axle. Take the axle with the welded washer at the right hand side (looking from the front of the RufCut) and push through as shown, then twist to insert the other end through the framework.
  • Page 11 Setting up 6. Fitting wheels - Left hand wheel looking from front. Install the circlip into the groove on the left hand side then, slide on wheel then use a washer and large locknut to retain wheel. Note: you may need to use a pair of pliers/ mole grips to prevent the axle from turning when tightening the nyloc nut.
  • Page 12: Operation

    Preparing the fuel Use the mixing container supplied to mix the petrol and 2 stroke oil (see specifications) in the ratio of 25:1. Fill the fuel tank of the Rufcut (do not overfill). Starting To prime the engine with fuel press the flexible plastic bulb several times to pump...
  • Page 13 Operation Keeping a firm grip on the RufCut and keeping away from the brushcutter head, pull the starter cord to start the RufCut. When you pull the starter grip, do not wrap the starter cord around your hand. Do not let the grip snap back, but guide the starter cord to rewind it properly. Failure to follow this procedure may result in injury to your hand or fingers and may damage the starter mechanism.
  • Page 14 ALWAYS stop the engine before inspecting any damage. If in doubt seek expert advice before using the RufCut or starting work again. Do not overreach. Keep proper footing and balance at all times. Special care must be taken in slippery conditions (wet ground, snow) and in difficult, over-grown terrain.
  • Page 15: Exploded Drawings

    Framework assembly Description Qty. Description Qty. Motor Chassis Assy Hand Grip Latch Logo Panel Actuator Rod Chassis Extension Controls Adjusting Plate Wheel Handlebar Knob Tool Box Lid Washer Spring Spring Lock Saddle Washer Spindle Bolt Knob Bolt R Clip Control Packer Screw Washer Bolt...
  • Page 16 Engine breakdown drawing Description Description Description Bracket Seal Cylinder Starter assy Crankcase Cylinder gasket Washer Flywheel Piston ring Starter plate Coil Piston Crankcase Clutch Gudgeon pin clip Gasket Clutch screw Gudgeon pin Seal Clutch cover Needle bearing Bearing Fuel tank cap Gasket Gasket Fuel tank...
  • Page 17: Maintenance

    The RufCut will provide reliable performance and service if maintained regularly. The following intervals apply to normal operating conditions. If you are using the RufCut in very dusty conditions, adjust accordingly. Please contact your Portek Dealer if in any doubt.
  • Page 18: Troubleshooting And Spare Parts

    Choose different head unit suitable for head Excessive vibration Bolts/nuts are loose Check and tighten Excessive smoke Wrong fuel mixture Drain fuel and replace Spare parts A full range of spares are available. Please contact your Portek Dealer to request replacement parts.
  • Page 19: Certificate Of Conformity

    2006/42/EC (Machinery Directive) 2004/108/EC (EMC Directive) 2000/14/EC (Noise Emissions Directive) 97/68/EC (NRMM Emissions Directive) the “Rufcut” has been designed to comply with the relevant sections of the below BS EN ISO standards:- 12100-2: 2003 14121-1: 2007 13857: 2008...
  • Page 20 Portek Ltd. Bryn Hall, Knolton Bryn Overton-on-Dee Wrexham, LL13 0LF Tel: 01234 889 454 Fax: 01234 889 464 General enquiries 0117 ©2017 Portek Ltd Email: info@portek.co.uk...
