17” – 19” professional active matrix lcd colour monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
17" – 19" PROFESSIONAL ACTIVE MATRIX LCD
COLOUR MONITOR
ART. 41627 - 41629
Please read this manual thoroughly before use
and keep it for future reference.
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
http://www.comelit.it – E mail:
export.department@comelit.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 41627 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comelit 41627

Summary of Contents for Comelit 41627

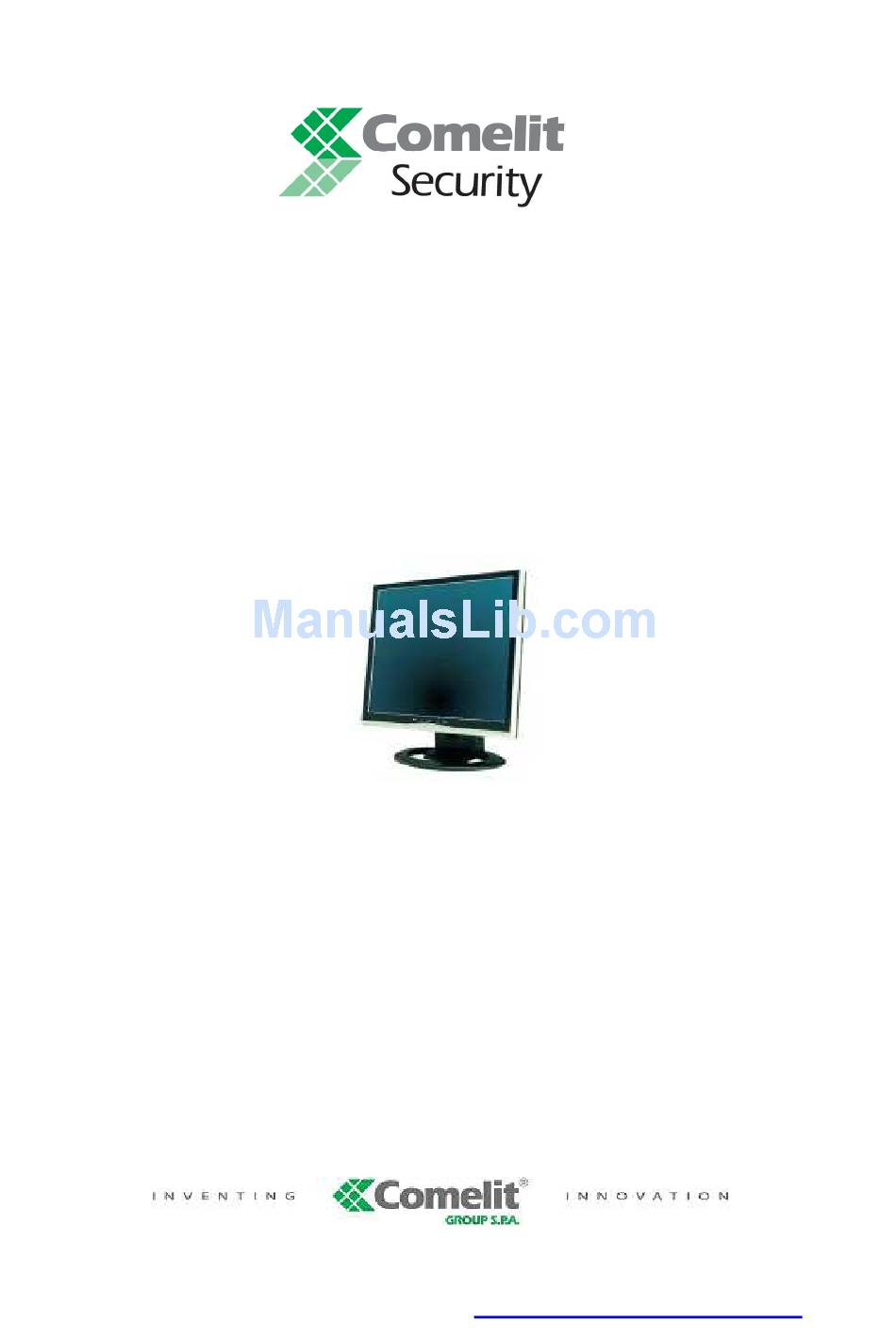

  • Page 1 17” – 19” PROFESSIONAL ACTIVE MATRIX LCD COLOUR MONITOR ART. 41627 - 41629 Please read this manual thoroughly before use and keep it for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it...
  • Page 2 WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION Explanation of graphical symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is Intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 FCC COMPLIANCE STATEMENT. FCC INFORMATIONS: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE RESIDENTIAL INSTALLATION.

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS READ AND KEEP THESE INSTRUCTIONS Please read this manual thoroughly before use and keep it for future reference. CLEANING Unplug this equipment from the wall outlet before cleaning it. Use a mild household detergent, never use strong solvent. Clean the unit with a slightly damp soft cloth. ATTACHMENTS Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.
  • Page 5 OVERLOADING Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. SERVICING Do not attempt to repair this equipment yourself. The opening and the movement of the covers could you expose at high voltage or other dangers.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Features Operating Instructions - Controls Connections User Controls Specifications 14~15 Dimensional drawings --------------------------------------------------------------------------------...

  • Page 7: Features

    Features High Quality Advanced CCTV LCD Monitor Incredible Resolution with 540TVL De-Interlace technology Efficiently Eliminates Shaky and blurry image Progressive Scan 3D Comb Filter Function Clear image Superior Color Reproduction VESA Wall & Ceiling mount Compatible Noise Reductions Single control operated On-Screen Display user interface...

  • Page 8: Operating Instructions - Controls 8~9

    Operating instructions FRONT controls 1. Menu / Exit This button is used to bring up or disappear the controls menu. Exits from the OSD system and the selected function 2. ▼(Down) / (Brightness) Moves down the menu lists in the OSD Selected brightness and decreases the value of brightness 3.

  • Page 9: Rear Connections

    REAR connections 1. DC JACK Place the plug from the supplied table-top power supply into the DC 12V connector. Input at the monitor is 12 volts DC from the TT universal AC supply (100-240 Vac, see specifications table for AC/DC details). 2.

  • Page 10: Connections

    Connections To make a normal connection to the monitor, bring a cord from a camera, or other video source to one of the BNC jacks or from a PC to the PC jack on the back of the monitor. Either the left or right BNC jack can be used for input. The other jack may be optionally connected to another user of the same signal.

  • Page 11: User Controls

    User Controls RGB (PC) Mode Press the MENU button and then the button to display the Image Settings menu. Image Settings Contrast Brightness Advanced ► Source Select one of the options using ▲ or ▼ and then press the button. Adjust the chosen item using ▲...

  • Page 12: Osd Menu

    Press button to ENTER in the Display Settings menu. OSD Menu Display Settings H Position V Position Blending Time 40 SEC H Position is used to adjust the horizontal position of the Menu window on the screen. V Position is used to adjust the vertical position of the Menu window on the screen. OSD Blending is used adjust the opaqueness of the background of the OSD.

  • Page 13: Under Scan

    Advanced Image Settings Adaptive Temporal NR MPEG NR Temporal NR is the motion based noise reduction. MPEG NR is for removing unwanted ringing and block noise from images that have undergone MPEG or JPEG compression and decompression. Image Settings Noise Reduction ►...

  • Page 14: Specifications

    SPECIFICATIONS ART. 41627 ITEM SPECIFICATION LCD Panel 17.0" TFT LCD Panel Active Display Area (Diagonal) 17.0 inches Pixel Format 1280(H) x 1024(V), RGB Vertical Stripe Pixel Pitch 0.264mm x 0.264mm Color Depths 8 Bit / 16.7M Colors Contrast Ratio 1000 : 1 (Typical)
  • Page 15 ART. 41629 ITEM SPECIFICATION LCD Panel 19.0" TFT LCD Panel Active Display Area (Diagonal) 19.0 inches Pixel Format 1280(H) x 1024(V), RGB Vertical Stripe Pixel Pitch 0.294mm x 0.294mm Color Depths 8 Bit / 16.7M Colors Contrast Ratio 1000 : 1 (Typical) Brightness 300 cd/m2 Viewing Angles (Left/Right/Up/Down)

  • Page 16: Dimensional Drawings

    Dimensional drawings (art. 41627) (art. 41629) Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it...

This manual is also suitable for:

41629
