Summary of Contents for laerdal SimPad SkillReporter

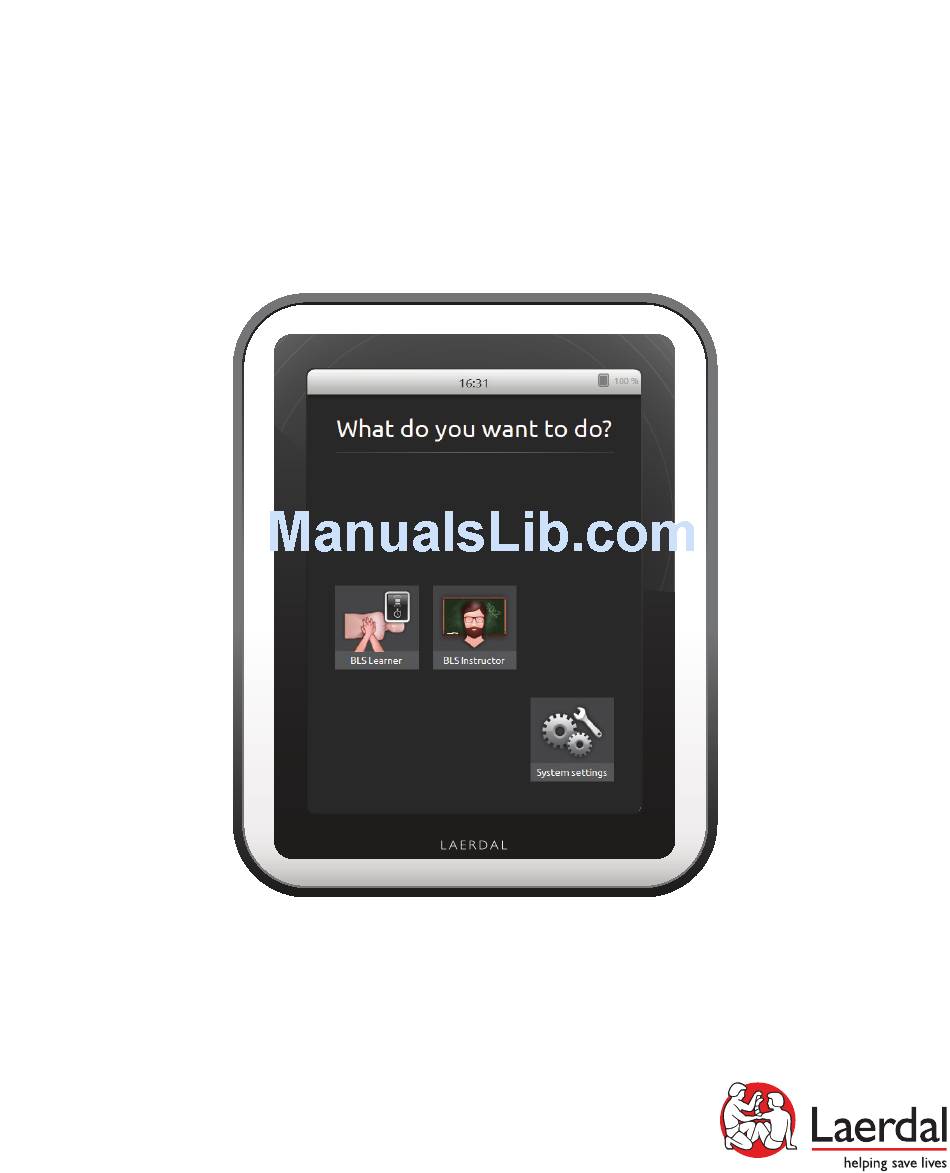

- Page 1 SimPad SkillReporter User Guide www.laerdal.com...
-
Page 2: Introduction
Introduction INTRODUCTION SimPad is a wireless touchscreen device for use with Laerdal manikins. This version is installed with SkillReporter software for Basic Life Support (BLS) training. To get feedback on the CPR performance, use QCPR enabled manikins, either Resusci Anne or Resusci Baby. -
Page 3: Table Of Contents
Connect using WiFi Select manikins Set up and select network Laerdal Router Edit manikin name Can’t find a manikin? SimPad SkillReporter How to use SimPad SkillReporter BLS Learner BLS Instructor Choose algorithm Manage Learners Event registration Defibrillator features Live feedback... -
Page 4: What's In The Box
Introduction WHAT’S IN THE BOX SimPad SimPad Sleeve SimPad to Manikin Cable Power Cable SimPad to PC Cable Power Adaptor SimPad Important Product Information User Guide for SkillReporter Important Product Information... -
Page 5: Get Started
Get Started CHARGE THE BATTERY Connect SimPad to the AC adapter and plug it into a wall outlet. When the battery charges, the yellow LED flashes. When the battery is fully charged, the yellow LED glows steadily. If you start SimPad when the battery level is very low, the red LED flashes. STARTUP Press and hold down the Power button for half a second to switch on the SimPad. -
Page 6: Connect
USB cable or WiFi. No router is needed. When connecting SimPad to more than one manikin (up to 6), use a WiFi connection with a router. We recommend using the Laerdal Router as it simplifies the setup and improves stability. -
Page 7: Connect To One Manikin Using Usb Cable
Connect CONNECT TO ONE MANIKIN USING USB CABLE The USB cable provides the most reliable connection when connecting SimPad to one manikin. When using the USB cable, the manikin is powered by SimPad. To avoid a quick battery discharge when the manikin is powered by SimPad, we recommend you plug in the power adaptor. -
Page 8: Select Manikins
Connect SELECT MANIKINS If you start a session without having manikins connected, you are prompted to select manikin(s). In BLS Learner you can only select one manikin. This happens automatically if the manikin is connected through the USB cable, or if only one manikin is available. In BLS Instructor you can choose up to 6 manikins. -
Page 9: Set Up And Select Network
If you have selected more than one manikin (BLS Instructor), you are prompted to choose a network. The network enables communication between several manikins and SimPad. We recommend that you use the Laerdal Router (purchased separately) to establish the network. -
Page 10: Edit Manikin Name
Connect Tap here to access the manikin selection and available networks. Number of manikins connected EDIT MANIKIN NAME The default manikin name is Resusci Anne or Resusci Baby. To keep track of multiple manikins, give each one a unique name. TIP: Switch on one manikin at the time and tap Edit name when the manikin appears on the screen. -
Page 11: Simpad Skillreporter
SimPad SkillReporter HOW TO USE SIMPAD SKILLREPORTER SkillReporter has two modes optimized for learner and instructor use: BLS Learner BLS Instructor... -
Page 12: Bls Learner
SimPad SkillReporter BLS LEARNER BLS Learner gives feedback on CPR performance for learners using a single manikin. You can choose between Practice and Assessment, and between CPR (single rescuer or two-rescuer), Compressions Only, and Ventilations Only. Practice CPR with corrective feedback. -
Page 13: Bls Instructor
SimPad SkillReporter BLS INSTRUCTOR In BLS Instructor the interface is designed to help the instructor review learners’ performance on one or several manikins, register events, and control defibrillation features*. Sessions can be saved and features for managing learners are available. -
Page 14: Choose Algorithm
SimPad SkillReporter CHOOSE ALGORITHM You can choose to practice CPR (both compressions and ventilations), Compressions only, or Ventilations only. For CPR sessions, select either single rescuer or two-rescuer. The difference between single rescuer and two-rescuer is in the scoring: participants in two-rescuer sessions are allowed less no-flow time than single rescuers are. -
Page 15: Manage Learners
SimPad SkillReporter MANAGE LEARNERS You can assign one or more learner names to each manikin. Tap Learner and assign the names either before, during, or after a session. The names are stored for later reference. View and edit the Learners list in BLS Settings. - Page 16 SimPad SkillReporter To manage a large group of learners, you can import a list of names to SimPad. Connect SimPad to a computer, using the SimPad-to-PC cable that comes with SimPad. SimPad appears as an external disk drive on your computer.
-
Page 17: Event Registration
SimPad SkillReporter EVENT REGISTRATION In BLS Instructor, you can register Events such as Response Check and Call for help during a session. These events are displayed in the timeline and stored in the session. You can create your own events from BLS Settings > View Event Registrations. The... -
Page 18: Defibrillator Features
SimPad SkillReporter DEFIBRILLATOR FEATURES When using Resusci Anne QCPR D you can give training using a live defibrillator.* SimPad recognizes this manikin automatically and allows you to select heart rhythms. Active Rhythm When a new rhythm is selected, it flashes to indicate that it's a pending rhythm. - Page 19 SimPad SkillReporter When using Resusci Anne AED you can give AED training with a Laerdal AED Trainer 2 or 3. Enable this feature in BLS settings by selecting your AED trainer type. When applicable training pads (Link Pads) are placed correctly on the manikin, SimPad can be...
-
Page 20: Live Feedback
SimPad SkillReporter LIVE FEEDBACK COMPRESSIONS Complete release OK rate Low rate High rate Correct depth VENTILATION OK rate Low rate High rate OK volume Too little Too much volume volume... -
Page 21: Timeline
SimPad SkillReporter TIMELINE Performance data for the previous 30 seconds is displayed in the timeline. The upper part of the timeline shows the compression rate curve. The lower part displays both the compression depth curve and the ventilation volume bars. When doing a Ventilations Only session, the ventilation rate curve is displayed instead of the compression rate curve. -
Page 22: Results
The first result screen gives you advice on how to improve your CPR performance. An overall score is displayed, if the overall score feature is enabled in BLS Settings. To get more details, tap or swipe the screen. For more details on the scoring, please visit www.laerdal.com/qcpr. - Page 23 SimPad SkillReporter The second result screen gives you more details. When you tap an area on the screen, an explanation of the data given there is displayed. To view compressions and ventilations, zoom in and scroll in the timeline.
- Page 24 SimPad SkillReporter For scenario training with AED or when events are registered (Response Check, Check Breathing, etc.) the Flow Fraction is not included in the overall score. This is to allow for correct medical procedures, without having the overall score reduced. The Flow Fraction is then shown separately.
-
Page 25: Bls Settings
SimPad SkillReporter BLS SETTINGS In the BLS Settings Menu, you can select predefined CPR Guidelines or specify your own custom thresholds, and more. -
Page 26: Get Manikin Information
SimPad SkillReporter GET MANIKIN INFORMATION To get detailed information about your manikin, tap and hold (2 seconds) on one of the connected manikins. This will toggle between manikin status (CONNECTED), manikin serial number (SNR), manikin software version (SW), and number of compressions performed on that manikin during its lifetime (COMP). -
Page 27: Manikin Error State
RED LIGHT ON RESUSCI ANNE MANIKIN When also using SkillGuide, it’s crucial that the cable is fully inserted. Otherwise the manikin can’t communicate with SimPad SkillReporter. After inserting the cable, check the side panel. If the red light glows steadily, disconnect and reconnect the SkillGuide cable. - Page 28 © 2013 Laerdal Medical AS. All rights reserved. Device Manufacturer: Laerdal Medical AS, P.O. Box 377, Tanke Svilandsgate 30, 4002 Stavanger, Norway T: (+47) 5151 1700 www.laerdal.com...
