Audiovox VSIR100W/B Owner's Manual

Remote-Controllable
Infrared Stereo Volume Control
Control volume of multiple sources remotely.

Features and characteristics-

• Infrared stereo volume control with selectable impedance matching (1x, 2x,
4x, 8x).
• Includes Decora™ insert and decorative faceplates in white or ivory.
• Power handling: 25 ~ 100 watts per channel RMS.
Removable connectors accommodate 14- to 22-gauge wire.
•
• One- or two-side terminal connections.

Instruction

1. Remove about 1/4" of insulation from both ends of all wires to be connected
to the volume control. Twist the exposed strands.
Note: The removable connectors accept up to 14 gauge wire.
2. Loosen the set screws on the volume control.
3. Connect the leads from your amplifier to the volume control set screws
labeled INPUT. Make sure the LEFT L(+) and L(-) and RIGHT R(+) and R (-)
wires are inserted in the appropriately marked opening. Then, tighten the
screws.
4. Connect your speaker wires to the volume control set screws labeled
OUTPUT, observing the + (positive) and - (negative) polarity of left and right
speaker.
5. Set up the completed assembly in the junction box. Insert the assembly
carefully to avoid excessive strain on the set screws. If necessary,
pre-dress the wires.
– VSIR100W/B
6. Set up to receive IR: Loosen the connector screws. Insert the
corresponding wires. Then, tighten the screws.
" V+" - 12VDC power
-
- " G " - Grounding
"IR " - IR signal
-
7. Mount the VSIR100 into wall box and screw on the face plate.

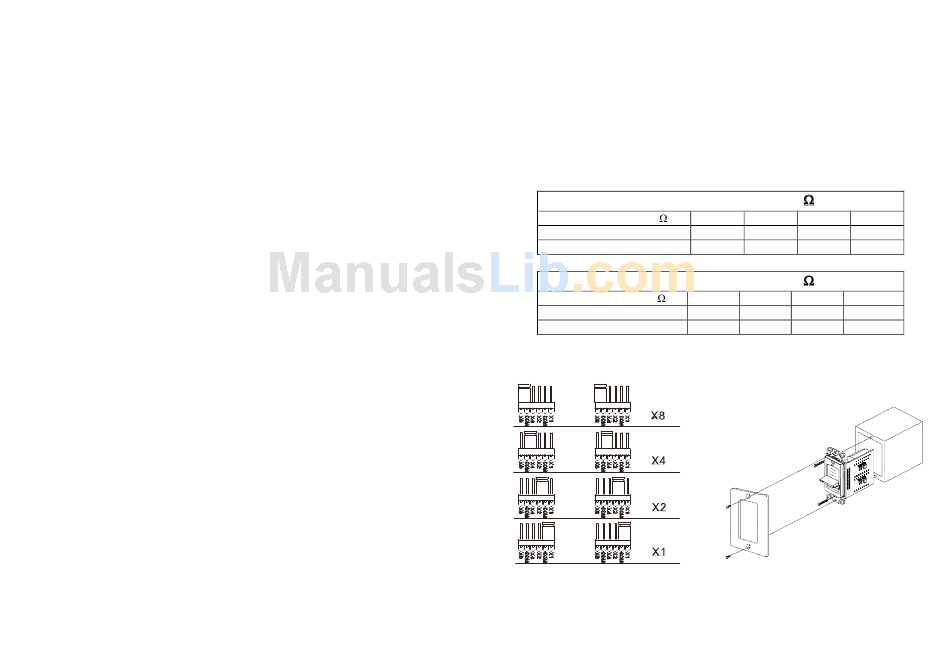

Volume set at maximum
Impedance jumper settings to match 8
SPEAKER OHMS ( )
8
4
Impedance jumper settings to match 4
SPEAKER OHMS ( )
8
4

Jumper settings

at amplifier
1X 2X 4X 8X
1 PAIR 2 PAIR 4 PAIR 8 PAIR
- 1 PAIR 2 PAIR 4 PAIR
at amplifier
1X 2X 4X 8X
2 PAIR 4 PAIR 8 PAIR 16 PAIR
1 PAIR 2 PAIR 4 PAIR 8 PAIR

Assembly diagram

Mounting depth: 2.48" (63mm) from finished wall.
