Ross RANCN65 Instructions Manual

65 mm
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Protect yourself and others by observing all safety information, warnings, and cautions. Failure to
comply with instructions could result in personal injury and/or damage to product or property.
Please retain instructions for future reference!
RANCN65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RANCN65 and is the answer not in the manual?

Questions and answers

Related Manuals for Ross RANCN65

Summary of Contents for Ross RANCN65

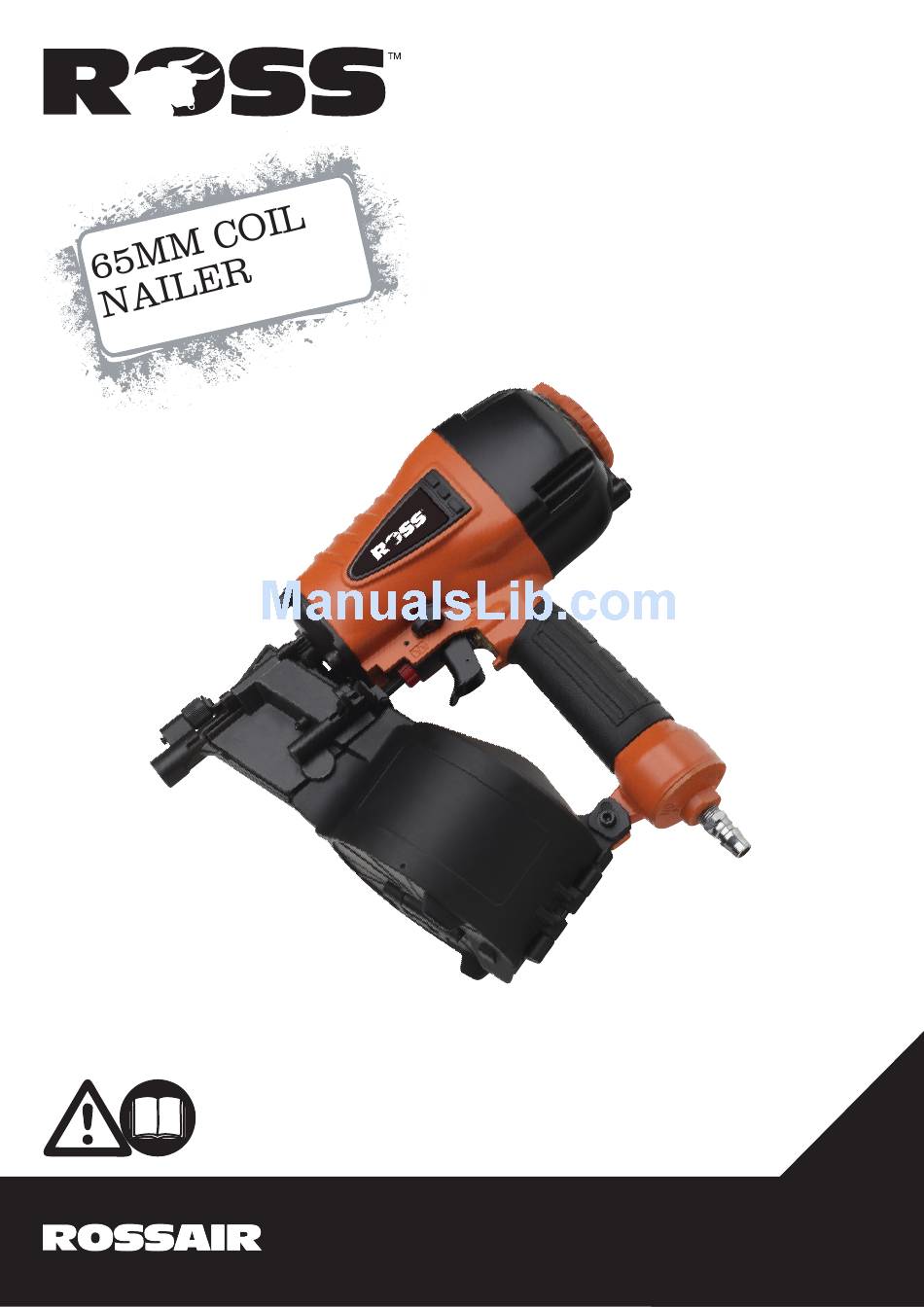

  • Page 1 Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference! RANCN65...
  • Page 2 ADJUSTABLE EXHAUST MODE CONTROL SINGLE / BUMP AIR INLET TRIGGER DEPTH CONTROL MAGAZINE RELEASE NOTE: USE PLASTIC COLLATED NAILS ONLY...

  • Page 3: Specifications

    SPECIFICATIONS Nail capacity (Qty): up to 300pcs Nail size: 25 mm (1”) to 65mm (2-1/2”), 15deg, Plastic collated coil nails only. Recommended operating pressure: 70-110 PSI (5-7.5 bar) Maximum pressure: 8.3 bar (120 PSI) Air inlet: Nitto style connector Dimensions: 320 x 310 x 128 mm Weight: 3.0 kg GENERAL SAFETY IMPORTANT!: Read and understand all safety rules, operating...

  • Page 4: Operating Instruction

    GENERAL SAFETY Cont ..• CLEAN work area Accidents occur where benches and work areas are cluttered or dirty, floors must be kept clear. • Make sure only use correct staplers as specified for your tool.(See Fastener specification) OPERATING INSTRUCTION Description 15 Deg.

  • Page 5: Maintenance

    Loading fastener and operation Cont ..• Then test the driving depth in a sample piece of wood before using. If the fasteners are being driven too far or not far enough, adjust the regulator to provide less air pressure or more air pressure.

  • Page 6: Troubleshooting

    TROUBLESHOOTING WARNING: If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service centre can perform repairs or replacement of tool. SYMPTOM PROBLEM SOLUTIONS Air leak near top of tool or...
  • Page 7 EXPLORED VIEW...
  • Page 8 Should service become necessary during the warranty period, the purchaser should contact an Authorised Service Centre or J W Ross. In order to obtain warranty service, the purchaser must present the store receipt showing the name of the retailer and the date of purchase.
