Summary of Contents for Genave SR418
-

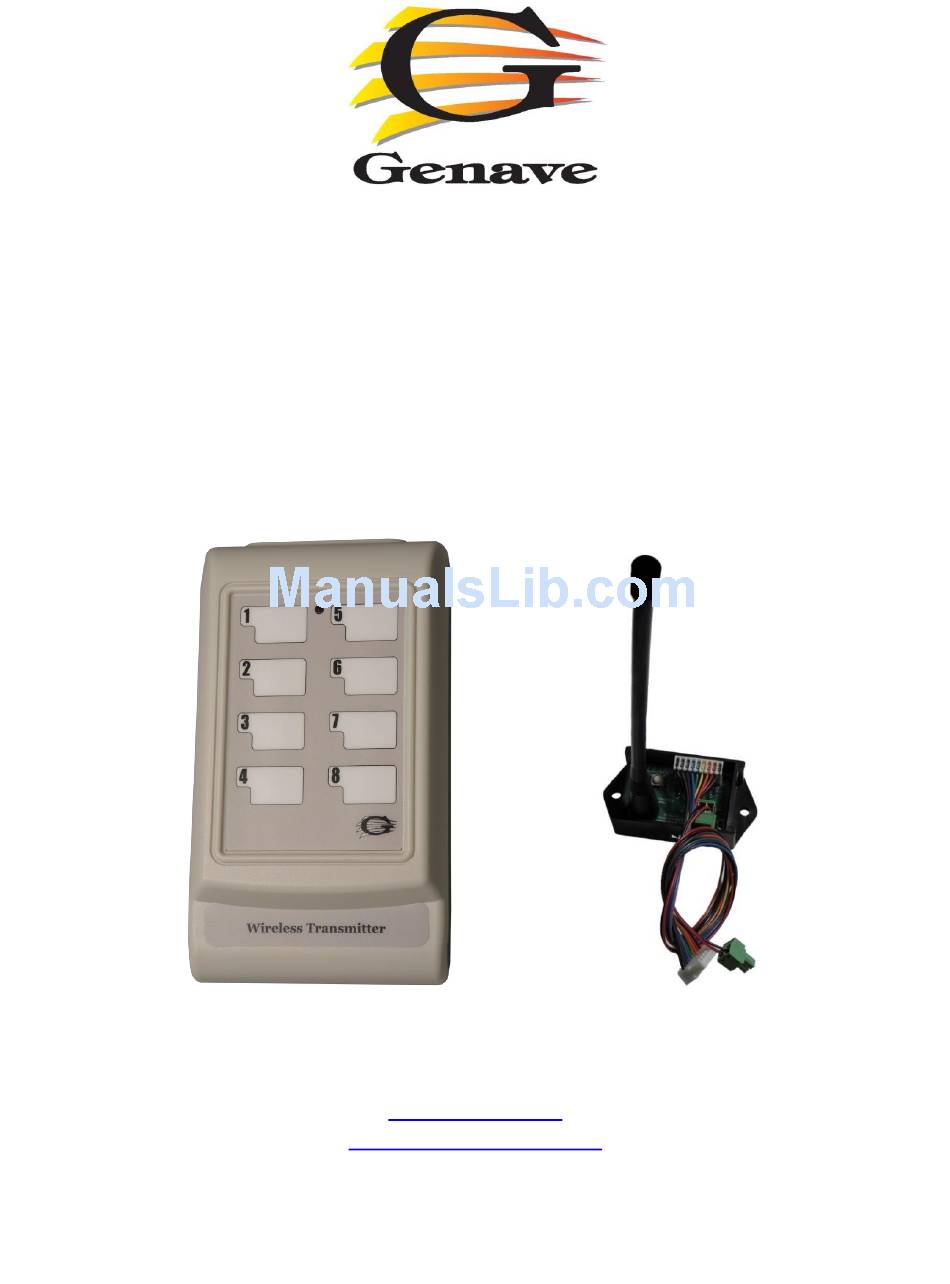

Page 1: User Manual
SR418 Short Range Remote Control User Manual Genave / NRC, Inc. www.genave.com support@genave.com Copyright 2017. Genave / NRC, Inc. Tech. Publication No. 9000-0000-098 Rev 01... -
Page 2: Important Safety Information
SR418 SR418 User Manual Warning If incorrectly used, this equipment can cause severe injury. Those who use and maintain the equipment should be trained in its proper use, warned of its dangers, and should read the manuals before attempting ... - Page 3 (including damages for loss of business profits, business interruption, loss of business information, and the like) arising out of the use or inability to use the software or hardware even if the Genave and/or its licensor has been advised of the possibility of such damages.
-
Page 4: Table Of Contents
SR418 SR418 User Manual Short Distance Remote Control Table of Contents Product Overview ............................ 5 Basics ............................... 5 FCC Requirements .......................... 5 Keypad Transmitter ..........................6 Battery replacement for Keypad Transmitter ................... 6 Setting the Transmitter Address ....................... 7 Handheld Transmitters ..........................8 Battery replacement for 8 button transmitter .................. -
Page 5: Product Overview
Product Overview Basics The SR418 Control consists of a Transmitter unit and a Receiver unit which communicate on a frequency of 418MHz and have a range of up to 800 feet. When a button is pressed on the transmitter, a signal is sent to the receiver which then activates the corresponding output associated with the button. -
Page 6: Keypad Transmitter
SR418 SR418 User Manual Keypad Transmitter The SR418 receiver can be matched with a single or multiple Keypad transmitters. Battery replacement for Keypad Transmitter The transmitter utilizes a standard CR2032 lithium button cell. In normal use, it provides 1 to 2 years of operation. To replace the battery, remove rear of the enclosure. -
Page 7: Setting The Transmitter Address
CREATE ADDRESS button MODE LED The keypad now has a compltetly new address. Each SR418 receiver will need to be paired with this new address. The decoder needs to learn the address of the transmitter before it will accept its transmissions. -
Page 8: Handheld Transmitters
SR418 User Manual Handheld Transmitters The SR418 receiver can be matched with a single or multiple handheld transmitters. The transmitters can have 1, 2, 3, 4, 5 or 8 buttons and be of a short range keyfob style or long range handheld style. -
Page 9: Setting The Transmitter Address
SR418 SR418 User Manual Setting the Transmitter Address The Long-Range Handheld Transmitter allows the selection of one of 16,777,216 unique addresses. All transmitters are shipped with a unique address to avoid contention with other units; however, the address can be changed. -
Page 10: Receiver
SR418 SR418 User Manual Receiver The SR418 receiver has 8 outputs which activate whenever the corresponding button is being pressed on the transmitter. The power requirements for the SR418 receiver is 5 to 30VDC and 100mA maximum. The SR418 is capable of remembering 40 unique transmitter addresses. -
Page 11: Pairing Of Tx To Rx
SR418 SR418 User Manual Pairing of Tx to Rx To pair the receiver to a transmitter: 1) Press the “Learn” button on the receiver. 2) The “MODE” LED will start flashing. 3) While MODE flashes, press any button on the transmitter to send a signal.
