RUKUS R710 Quick Setup Manual

R710 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on
how to set up your Ruckus Wireless R710 Dual Band 802.11ac
Multimedia Wi-Fi Access Point (AP). After completing the steps
described in this Guide, you will be able to place the R710 at your
site and provide wireless network access to users.
The rest of this document refers to the R710 as the AP.
Note: The minimum software revision for the AP is base image
100.0.2 or later, RuckOS 3.2 or later, or ZoneFlex 9.12 or later.

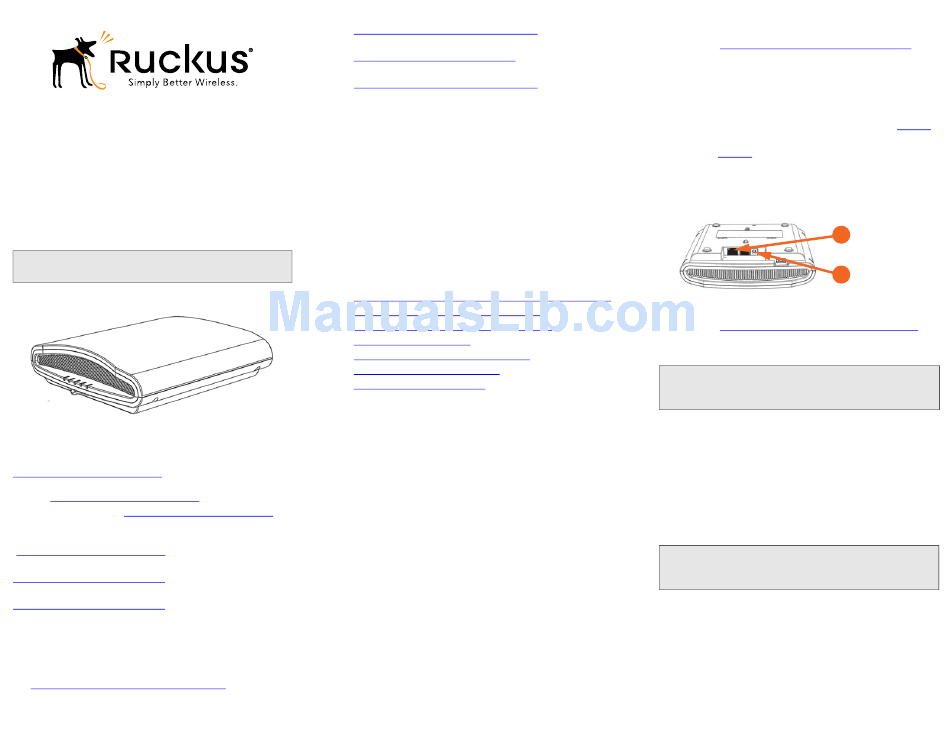

Figure 1. Ruckus Wireless R710 Access Point
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
こ の ガ イ ド の日本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니다 .
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please check for the
latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents.
Copyright © 2015 Ruckus Wireless, Inc.
Published 10 February 2015, Part Number 800-70766-001 Rev B
• Software Upgrades are available at
http://support.ruckuswireless.com/software.
• Open Source information is available at
http://opensource.ruckuswireless.com.
• Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty.
Package Contents
• R710 Access Point
• One T-bar mounting assembly kit, including:
• One T-bar bracket (2 separate plastic parts)
• Two each 1.0" L x No. 8 steel Phillips panhead mounting
screws and plastic wall anchors
• Regulatory flyer
• Product warranty statement
• Declaration of Conformity, if required
This Quick Setup Guide
•
C AP
ONFIGURING THE
Continue with the following steps:
• Step 1: Collecting Setup Requirements, Hardware, and Tools
• Step 2: Connecting Your Computer to the AP
• Step 3: Preparing Your Computer for AP Setup
• Step 4: Logging Into the AP
• Step 5: Customizing the Wireless Settings
• Step 6: Placing the AP in Your Site
• Step 7: Verifying the Installation
Step 1: Collecting Setup Requirements,
Hardware, and Tools
• A computer running Windows 7 (procedures for common
operating systems are similar).
• One Cat 5e (or better) Ethernet cable.
• A Ruckus Wireless 902-0169-xx00 AC power adapter (sold
separately)
--OR--
an 802.3at-compliant Power over Ethernet (PoE) switch or
PoE injector.
Optional hardware and tools:
• Customer-supplied small padlock with a 3.5mm (0.14") or
smaller shackle, used to fasten the AP to the secure mounting
bracket or the T-bar bracket.
• Customer-ordered Ruckus Wireless 902-0120-0000 secure
mounting bracket kit:
• If you are mounting the AP on a flat surface using the
secure mounting bracket kit, then you need an electric drill
with 4.75mm (3/16") drill bits.
• If you are mounting the AP on a pipe or pole using the
secure mounting bracket kit, then you will also need a
38.1mm to 63.5mm (1.5" to 2.5") pipe or pole, two
included stainless steel clamps, and hand tools to tighten
the clamps.
Continue with Step 2: Connecting Your Computer to the
Step 2: Connecting Your Computer to the AP
1
After removing your AP from its package, place it next to your
computer.
2
Using an Ethernet cable, connect your computer's network
port to the 10/100/1000 POE In port on the AP (A in
3
Using an AC adapter (sold separately), connect the AP 12VDC
port (B in Figure 2) to a convenient (and protected) power
source.
Alternatively, connect the 10/100/1000 POE In port to a PoE
injector or switch for both power and network connectivity.
Figure 2. AP ports
A
B
4
Verify that the PWR LED on the AP is a steady green.
Continue with Step 3: Preparing Your Computer for AP
Step 3: Preparing Your Computer for AP Setup
Note: The following procedures assume that Windows 7 is the
operating system. Procedures for other operating systems are
similar.
1
On your Windows 7 computer, configure your network
adapter from the Local Area Connection settings as follows:
• Start > Control Panel > Network and Sharing
Center > Change Adapter Settings
2 Edit the TCP/IPv4 address settings as follows:
• Local Area Connection > Properties > Internet
Protocol Version 4 (TCP/IPv4) > Properties
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog
box appears.
Important! Write down all of the currently active settings so you
can restore your computer to its current configuration later
(when this process is complete).
3
Select Use the following IP address (if it is not already
selected) and then make the following entries:
• IP address: 192.168.0.22 (or any available address in the
192.168.0.x network, except 192.168.0.1)
• Subnet mask: 255.255.255.0
• Default gateway: 192.168.0.1
Leave the DNS server fields empty.
AP.
Figure 2).
Setup.
