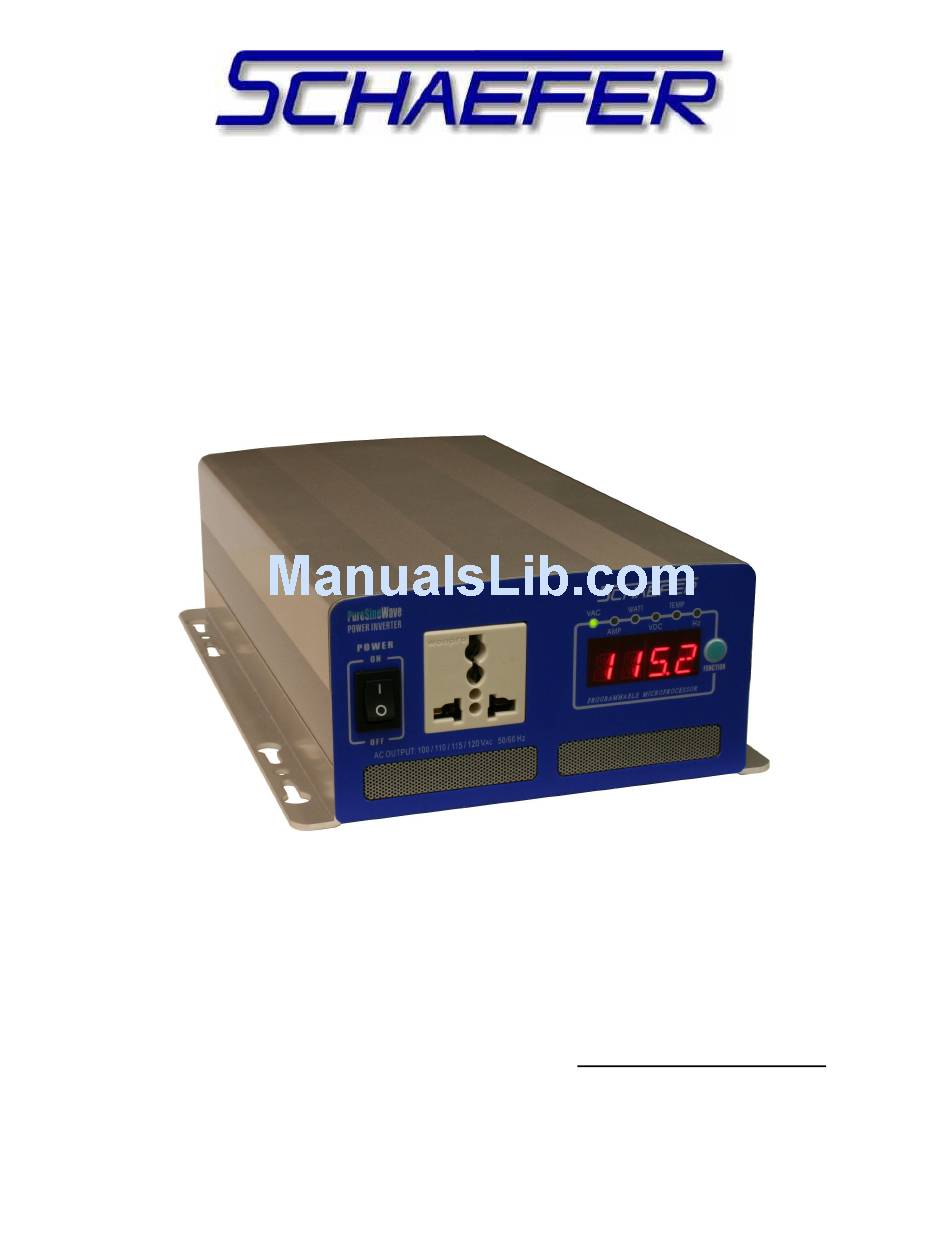

- Page 1 AEP-700 Series Pure Sine Wave Inverter User Manual 200 Butterfield Drive, Ashland, MA 01721, Tel: (508)881-7330, Fax: (508)231-0861 Website: http://www.schaeferpower.com Email: sales@schaeferpower.com September 2006...
-
Page 2: Table Of Contents
Table of Contents 1. Features 1-1 Applications 1-2 Electrical performance 1-3 Mechanical drawings 2. Introduction 2-1 Front panel operations 2-2 Rear panel operations 2-3 Installation 2-4 Quick hook up and testing 2-5 AC safety grounding 2-6 Making DC wiring connections 9-11 2-7 Inverter operation 11-14... -
Page 3: Features
1. Features: Pure sine wave output (THD < 3%) Output frequency: 50 / 60Hz switch selectable RS – 232C interface / remote controls port / wire connection to PC Wired remote control (optional) Thermostatically controlled cooling fan Advanced microprocessor design Protection : Input low voltage Overload... -
Page 4: Electrical Performance
1-2 Electrical Performance Model Specification AEP-700-121 AEP-700-241 AEP-700-481 AEP-700-122 AEP-700-242 AEP-700-482 Continuous Output Power 700W Maximum Output Power 780W (3Min.) Surge Rating (1 ms) 1400W Input Voltage 12VDC 24VDC 48VDC 12VDC 24VDC 48VDC 10.5-16 21.5-32 42-62 10.5-16 21.5-32 42-62 Input Voltage Range 100/110/115/120V RMS ±3%... -
Page 5: Mechanical Drawings
1-3 Mechanical Drawings September 2006... -
Page 6: Introduction
2. Introduction: The AEP-700 Series is part of Schaefer’s line of advanced technology, pure sine wave DC/AC power inverters. For optimum performance, the instruction manual should be read to ensure proper installation and use of the AEP-700. 2-1 Front Panel Operation:... -
Page 7: Rear Panel Operations
2-1-4 AC Outlet (sockets available; the Universal socket is standard with the AEP-700): 2-2 Rear Panel Operation: 2-2-1 Ventilation openings: Do not obstruct; allow at least 3 inches for airflow. 2-2-2 Battery terminals: Connect to a 12VDC/24VDC/48VDC battery or other 12VDC/24VDC/48VDC power source. -
Page 8: Installation
WARNING! Do not connect the 12VDC model to a 24VDC battery. The unit will be destroyed immediately! 2-2-3 RS-232C: Connect to remote control unit (optional accessory) or connect to computer for remote control working status. 2-2-4 Connect chassis ground terminal to earth or to vehicle chassis using # 8 AWG wire. WARNING! Operation of the inverter without a proper ground connection may result in an electrical safety hazard... -
Page 9: Quick Hook Up And Testing
2-3-5 Dust Free: Do not install the AEP-700 Inverter in a dusty environment where dust, wood particles or other filings/shavings are present that may be pulled into the unit when the cooling fan is operating. 2-3-6 Close to Batteries: Avoid excessive cable lengths but do not install the AEP-700 Inverter in the same compartment as batteries. -
Page 10: Ac Safety Grounding
WARNING! Make sure that all DC connections are tight (torque to 9-10 foot pounds). Loose connections will overheat and could result in a potential hazard 2-4-5 Set the power switch to the ON position; you will hear a beeping sound, while the display shows the word “ASIAN”... - Page 11 Increasing your DC cable size will help improve the situation. We recommend the following cables for optimum inverter performance. Use only high quality copper wiring and keep cable length short (from 3-6 feet). Model No Wire AWG Inline Fuse AEP-700-121 100A AEP-700-122 100A AEP-700-241 AEP-700-242...
-
Page 12: Inverter Operation
AEP-700 SERIES 2-7 Inverter Operation: To operate the power inverter, turn it on using the ON/OFF switch on the front panel. The power inverter is now ready to deliver AC power to your loads. If you are operating several loads from the power inverter, turn them on separately after the inverter has been turned on. - Page 13 The AEP-700 Inverter will indicate high and low DC voltage conditions as follows: Model Dc Input over Dc Input over Dc Input Dc Input voltage voltage alarm under voltage under voltage shut-down alarm shut-down AEP-700-121 16.0VDC 15.5VDC 10.5VDC 10.0VDC AEP-700-122 AEP-700-241 32.0VDC 31VDC 21.0VDC 20.0VDC AEP-700-242 AEP-700-481 62.0VDC...
- Page 14 The accuracy of the six display functions is below: Functions WATT TEMP Frequency 100-120 200-240 10-16 20-32 42-62 Ranges 0-10A 0-1KW 0-120 50Hz 60Hz Accuracy ± 1% ± 1% ± 1% ± 3% ± 2% ± 2% ± 2% ± 1% ±0.01 ±0.01 2-7-8 Over Voltage Protection Indicator: (OVP)
-
Page 15: Output Power
2-7-11 Over Load Protection Indicator: (OLP) The overload indicator indicates that the power inverter has shut itself down due to the output being overloaded. The inverter must be manually restarted. Turn off the AEP-700 inverter, correct the fault condition, then, turn the AEP-700 inverter back on. -
Page 16: Cooling Fan Operation
2-9 Cooling Fan Operation The AEP-700’s cooling fan operates by detecting output power and over temperature conditions of the inverter. Upon starting the inverter, with the output power is under 1/2 capacity (300W), the cooling fan remains off, complying with energy savings specifications. After the output power exceeds 1/2 capacity (300W), the cooling fan will turn on to decrease the internal temperature. -
Page 17: Warranty
WARNING Do not open or disassemble the AEP-700 Inverter, Attempting to service the unit yourself may result in a risk of electrical shock or fire. Problem and Symptoms Possible Cause Solution Low output voltage Using average reading Use true RMS reading meter (110V: 95-105VAC voltmeter and cable( see page 9, Point... -
Page 18: Important Safety Instructions
6. Important Safety Instructions WARNING! Before installing and using your AEP-700 inverter, be sure to read and save these safety instructions. 6-1 General Safety Precautions 6-1-1 Do not expose the AEP-700 Inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do not cover or obstruct the ventilation openings. -
Page 19: September
7. Appendix A 110VAC Dip Switch Settings (left side of inverter) S1 ( FREQ. Hz ) – 50Hz/60Hz S2/S3 (BAUD RATE ) – 2400 / 4800 / 9600 / 19200 S4/S5 (VOLTAGE OUTPUT ) – 100VAC/110VAC/115VAC/120VAC OUTPUT FREQ. (Hz) BAUD RATE VOLTAGE (VAC) 2400 4800...
