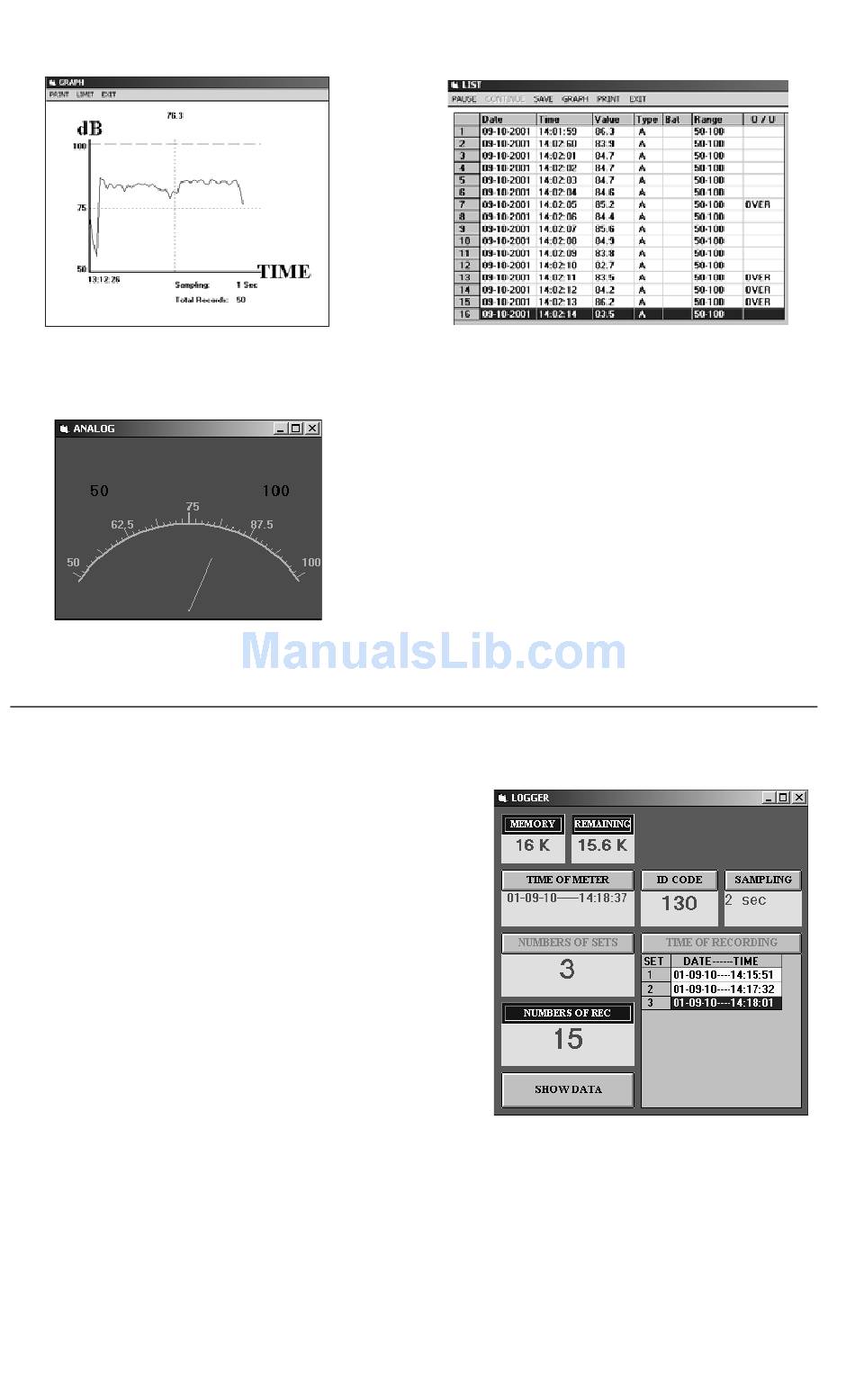

DISPLAY SELECTIONS
(Figure-9)
GRAPH
(Figure 11)
ANALOG
Logger Window (memory setup/ data download)
The Logger window sets the sample rate of the meter's internal memory and provides the
controls to download display and save stored data.
MEMORY
REMAINING
TIME OF METER
ID CODE
SAMPLING
NUMBER OF SETS
TIME OF RECORDING
NUMBERS OF REC
SHOW DATA
Displays memory size
Displays amount of
unused memory
When clicked,
downloads and displays
the meter's date and
time
Numeric Identification
code. Enter the code in
the box and click on the
bar to store the code.
Datalogger sample rate.
Enter the sample rate in
the box (in seconds) and
click on the SAMPLING
bar to store the value.
Click on the bar to download the stored data
Click on the bar to display sets downloaded. Click on a set to
select data for display
Displays the number of records (data points) in the selected set.
Display, Save or Graph data from selected set
8
(Figure-10)
LIST
Model 407764 Version 1.4 December 2004
