FROG-IS FP8 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S GUIDE - ENGLISH
FP8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP8 and is the answer not in the manual?

Questions and answers

Summary of Contents for FROG-IS FP8

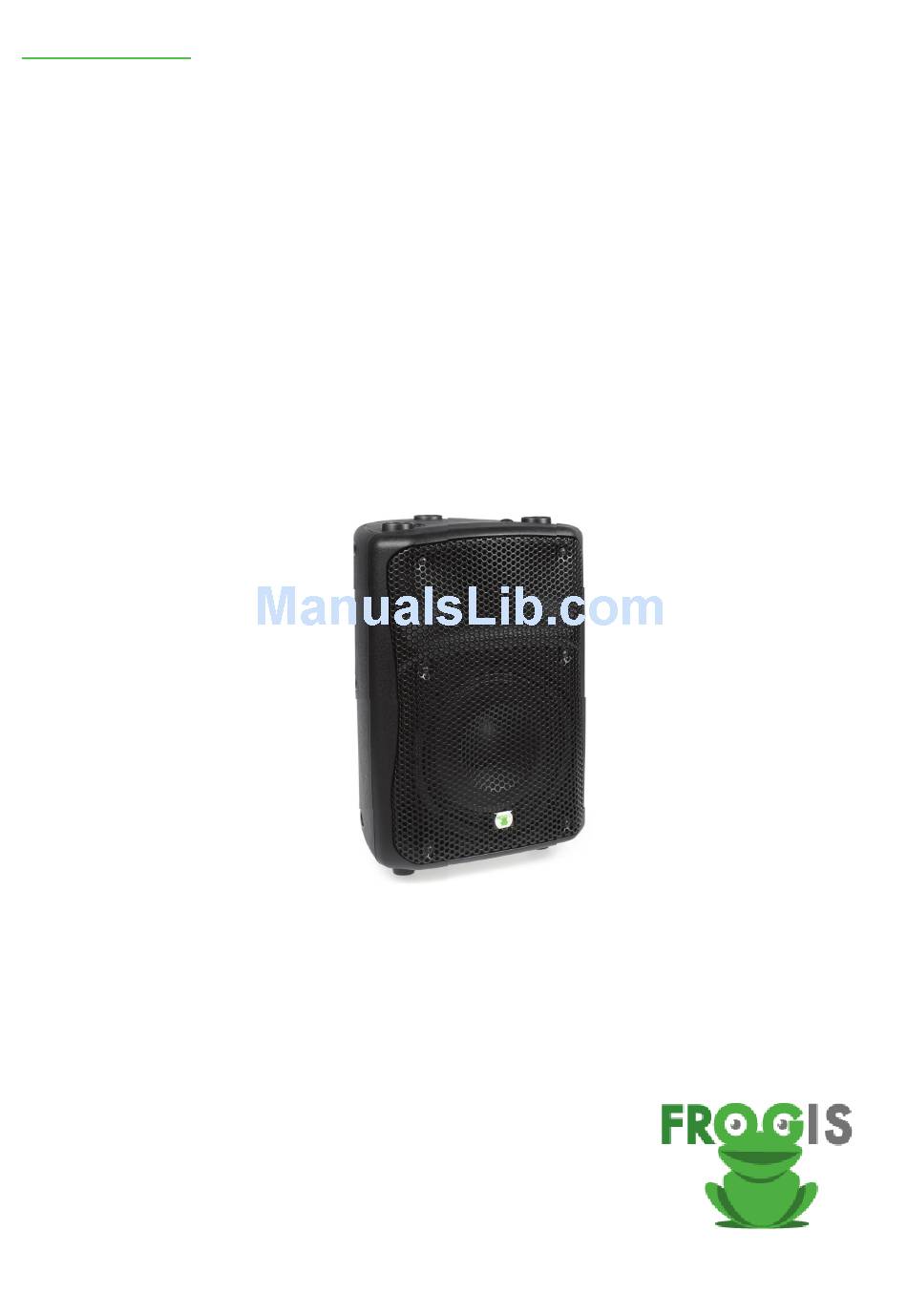

  • Page 1 USER’S GUIDE - ENGLISH...
  • Page 2 REV. A...

  • Page 3: Table Of Contents

    CONTENTS 1. INTRODUCTION 2. UNPACKING 3. SAFETY 4. PHYSICAL 5. AMPLIFIER 5.1 AC POWER CONNECTOR 5.2 VOLTAGE REQUIREMENTS 5.3 CURRENT REQUIREMENTS 5.4 AMPLIFIER PANEL 5.5 AUDIO INPUT CONNECTOR WIRING 6. QUICK START 7. SERVICE 10. SPECIFICATIONS REV. A...
  • Page 4 REV. A...
  • Page 5 SYMBOLS Frog declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! Waste Electrical and Electronic Equipment (WEEE) Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.

  • Page 6: Introduction

    1. INTRODUCTION The FROG-IS FP8 is the first choice for demanding musicians and DJs who work in loud environments. A multi-purpose system (200 W), it is fully equipped to serve as a main PA, a stage monitor, a distributed audio system and also other applications.
  • Page 7 device and its accessories away from small children. Avoiding Water and Wet Locations. Do not install the system in wet or humid locations without using weather protection. Take care not to spill any food or liquid on the device. In case it gets wet, unplug all cables, turn off the device before cleaning, and allow it to dry thoroughly before turning it on again.

  • Page 8: Physical

    4. PHYSICAL 41 cm 16.14” 25 cm 9.84” 27 cm 10.63” Weight: 7.8 Kg ( 17.20 lb REV. A...

  • Page 9: Amplifier

    5. AMPLIFIER 5.1 AC POWER CONNECTOR The amplifier module and any audio equipment connected to it (mixing consoles, processors, etc.) must be properly connected to the AC power distribution, preserving AC line polarity. All grounding points should be connected to a single node or common point, using the same cable gauge as the neutral and line cables. Bad grounding con- nections within an audio system can produce noise, hum and/or serious damage to the input/output stages in the system’s electronic equipment.

  • Page 10: Amplifier Panel

    5.4 AMPLIFIER PANEL REV. A...

  • Page 11: Audio Input Connector Wiring

    Limiter Indicator. This LED lights whenever the limit circuit is active meaning that the signal level at the amplifier output is approaching approach clipping. The Limit Indicator may blink occasionally, but if it blinks frequently or continuously, turn down the signal level at the signal source, or turn down the FP8’s Level Control.

  • Page 12: Quick Start

    6. QUICK START Turn the Power switch off (down). Set the voltage on the Mains Switch according to your country voltage rating. Set the Eq/Flat and Mic/line switches out. If using a microphone as the input to the KP8, push the Mic/Line switch in.

  • Page 13: Service

    7. SERVICE To obtain service: 1) Contact the official Frog distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. Ask for Customer Service, and be prepared to describe the problem clearly and completely.

  • Page 14: Specifications

    10. SPECIFICATIONS Acoustics Frequency range 65 Hz - 20 kHz (± 3 dB) SPL 1W/1mt 97 dB Maximum SPL 120 dB @ 1 m peak Coverage Horizontal 90° Vertical 70° Transducers Low Frequency 8" woofer High Frequency 1" compression driver, horn loaded Preamp and Processors Input Sensitivity Mic In: 8 mV...
  • Page 15 REV. A...
  • Page 16 FROG-IS WWW.FROG-IS.COM FROG-IS is a brand of K-gear surl - Via Paolina Romangnoli 17, 50038 Scarperia e San Piero, Firenze ITALY REV. A...
