Valor V60GTCLm Operating And Installation Instructions

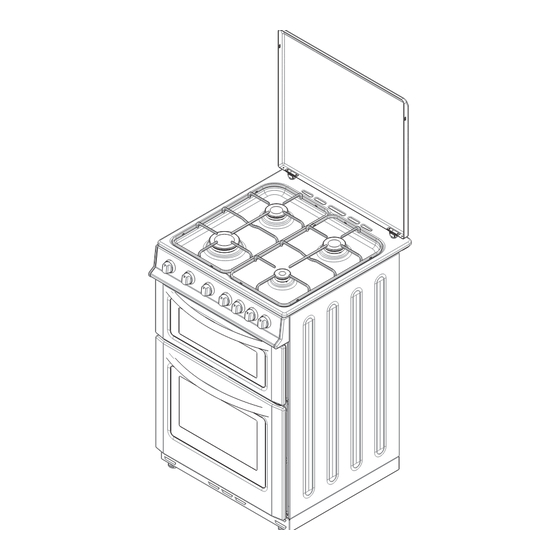

Freestanding gas double oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

V60GTCLm 444444030
OPERATING AND INSTALLATION
INSTRUCTIONS OF
FREESTANDING
GAS DOUBLE OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V60GTCLm and is the answer not in the manual?

Questions and answers

Summary of Contents for Valor V60GTCLm

  • Page 1 V60GTCLm 444444030 OPERATING AND INSTALLATION INSTRUCTIONS OF FREESTANDING GAS DOUBLE OVEN...
  • Page 2 Dear Customer, Our goal is to offer you products with high quality that exceed your expectations. Your appliance is produced in modern facilities carefully and particularly tested for quality. This manual is prepared in order to help you use your appliance that is manufactured by the most recent technology, with confidence and maximum efficiency.

  • Page 3: Table Of Contents

    CONTENTS: 1. Part : PRESENTATION AND SIZE OF PRODUCT 2. Part : WARNINGS 3. Part : INSTALLATION AND PREPARATION FOR USE 3.1 Environment where the appliance will be installed 3.2 Installation of oven 3.3 Adjustment of feet 3.4 Gas connection 3.5 Electrical connection and security 3.6 General warnings and measures 3.7 Gas conversions...

  • Page 4: Part : Presentation And Size Of Product

    1. Part : PRESENTATION AND SIZES OF PRODUCT PRESENTATION: 2. Rack 1. Rack 5. Rack 4. Rack 3. 3. Rack 2. Rack 1. Rack List of Components: 1- Cooktop Cover 8- Wire Grid 2- Cooktop 9- Grill 3- Control Panel 10- Oven Lamp 4- Oven Door Handle 11- Semi-Rapid Burner...

  • Page 5: Part : Warnings

    2. Part : WARNINGS TAKE ALL IMPORTANT SECURITY MEASURES AND READ THE MANUAL COMPLETELY BEFORE USING THE APPLIANCE This appliance has been designed for non-professional, domestic use only. • When you unpack the appliance, make sure that it is not damaged during •...
  • Page 6 2. Part : WARNINGS ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window or more effective ventilation, for example increasing the level of mechanical ventilation where present. Turn off all burners before shutting the lid •...

  • Page 7: Part : Installation And Preparation For Use

    3. Part : INSTALLATION AND PREPARATION FOR USE This modern, functional and practical oven, that was manufactured with the parts and materials of the highest quality, will meet your cooking needs in every aspect. You should read this manual so that you don't have any problems in the future and to make sure you achieve satisfactory cooking results.

  • Page 8: Installation Of Oven

    3. Part : INSTALLATION AND PREPARATION FOR USE This electric fan must have the capacity to change the air of the kitchen environment 4-5 times of its own volume of air per hour. Cooker hood flue Electrical ventilator Air inlet section Air inlet section min.

  • Page 9: Adjustment Of Feet

    3. Part : INSTALLATION AND PREPARATION FOR USE When choosing a place for your cooker, do not to place it near a refrigerator • and make sure there are no flammable or combustible materials in the surrounding area that could catch fire with a cooker nearby, such as curtains, oil, cloth etc.
  • Page 10 3. Part : INSTALLATION AND PREPARATION FOR USE damaged with soapy water or leakage fluids. Do not use a naked flame to check for gas leakages. All metal items used during gas connection must be free from rust. Also check the expiry date of any components used for connections. What to check during Fixed gas connection assembly To assemble a fixed gas connection be aware that there are different methods used in different areas.
  • Page 11 3. Part : INSTALLATION AND PREPARATION FOR USE 3.5 Electrical connection and safety measures During the electric connection, please follow the instructions below: The earthing cable must be connected to the earth terminal. • Make sure the insulated cable is connected to a power source during the •...
  • Page 12 3. Part : INSTALLATION AND PREPARATIONS FOR USE 3.6 CONVERTING THE GAS Caution : The following procedures must be undertaken by authorized service personnel. You appliance can be adjusted to operate with LPG or Natural Gas. The burners can be altered to work with different types of gas by switching their injectors and adjusting the minimum flame length suitable to the gas in use.
  • Page 13 3. Part : INSTALLATION AND PREPARATION FOR USE Adjusting the minimum flame position: First of all, make sure that the appliance is unplugged from the electric current and the gas feed is open. The minimum flame position is adjusted with a flat screw located on the valve. For valves with a flame failure safety device, the screw is located on the side of the valve spindle and for valves without a flame failure safety device, the screw is located inside the valve spindle.

  • Page 14: Part : Use Of Your Oven

    4. Part : USE OF YOUR OVEN Changing the gas inlet: For some countries, the gas inlet type can be different for NG/LPG gases. In such a case, remove the current connection components and nuts (if any) and connect the new gas supply accordingly.
  • Page 15 PART 4: USING THE PRODUCT 4.1 Using the gas burners Ignition of the burners To determine which knob controls which burner, check the position symbol above the knob. Manual ignition of the gas burners If your appliance does not come with an automatic ignition or in the event there is a power cut and the automatic ignition is not working, follow the steps below to ignite the burner: For hob burners: To ignite one of the burners, press and turn one of the knobs counter- clockwise so that the knob is in the maximum position.
  • Page 16 Flame safety device: Hob Burners Hob burners that come with a flame failure safety device will give your kitchen extra security should a gas flame on the hob extinguish during use. If a flame does extinguish, the device will cut off the gas supply immediately to prevent unburned gas from leaking into the room.
  • Page 17 When the burners are not in use for prolonged periods, always turn the main gas control valve off. WARNING: • Use only flat pans with a sufficiently thick base. • Ensure that the base of the pan is dry before placing it on the burners. •...
  • Page 18 • The material and finish of a tray will affect how well the base of a dish browns. Enamel, dark, heavy or non-stick cookware increase base browning whereas shiny aluminium or polished steel trays will reflect the heat away and reduce base browning. •...
  • Page 19 • Food should be thoroughly dried before grilling to minimize splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking. • Ensure that food is placed centrally on the shelf and there is sufficient room around the baking tray/dish to allow for the heat to circulate evenly around the whole dish.
  • Page 20 4.2 Oven accessories You can use glass containers, cake cutters and other oven safe trays found in retailers but they must be heat and flame resistant. If you aren't sure about the use of a certain cookware, follow the information given by the manufacturer concerning this issue.
  • Page 21 Oven Accessories * This instruction manual has been written with our other cookers in mind, as well as your model, therefore some of the accessories of your cooker may be different to the accessories listed below. Wire grid The wire grid is used to grill or to place different containers and cookware in the oven.

  • Page 22: Part : Cleaning And Maintenance

    PART 5: CLEANING AND MAINTENANCE CLEANING Before cleaning your cooker, make sure that all the control knobs are set to “0” and your oven is cool to the touch. Unplug the appliance. Before you clean, check whether the cleaning equipment and detergents you use are appropriate for the cooker, and what is recommended by the manufacturer.

  • Page 23: Maintenance

    - Do not wash them when they're still hot from cooking. - Do not use harsh/abrasive powders or cleaning materials. - Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the enamel for a long time. Cleaning stainless steel parts - Clean any stainless steel parts on a regular basis.

  • Page 24: Part : Service And Transport

    PART 6: SERVICE AND TRANSPORT 6.1 TROUBLESHOOTING BEFORE CONTACTING A REPAIR SERVICE If the oven is not working: 1.Make sure the cooker is plugged in and switched on. 2.Check other appliances to make sure there hasn't been a power cut. 3.If your model has a timer, make sure the timer is set properly because it may not be regulating the time.

  • Page 25: Injector Table

    INJECTOR TABLE G30 28-30mbar 12.3 kW 894 g/h G30/G31 I 2H GB Classe: 1 G20 20 mbar 28-30/37 mbar LARGE BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) 276 l/h CONSUMPTION 218,1 gr/h MEDIUM BURNER DIA. of INJECTOR (1/100mm) 1,75 NOMINAL RATING (KW) 1,75 166.7 lt/h...
  • Page 26 Brand Model V60GTCLm Type of Oven Mass 43,12 (+/-2) Energy Efficiency Index - conventional Energy Efficiency Index - fan forced Energy Class MJ/cycle - Energy consumption (gas) - conventional kWh/cycle MJ/cycle - Energy consumption (gas) - fan forced kWh/cycle Heat Source...
  • Page 27 Brand Model V60GTCLm Type of Hob Number of Cooking Zones Heating Technology-1 Size-1 Auxiliary Energy Efficiency-1 Heating Technology-2 Size-2 Semi-Rapid Energy Efficiency-2 59,0 Heating Technology-3 Size-3 Semi-Rapid Energy Efficiency-3 59,0 Heating Technology-4 Size-4 Rapid Energy Efficiency-4 57,0 Energy Efficiency of Hob...
  • Page 28 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be...
