Anatheim Scientific H200 Instruction Manual

Single channel k, j, t, e, r thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Models: H200
Single Channel K, J, T, E, R Thermometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anatheim Scientific H200

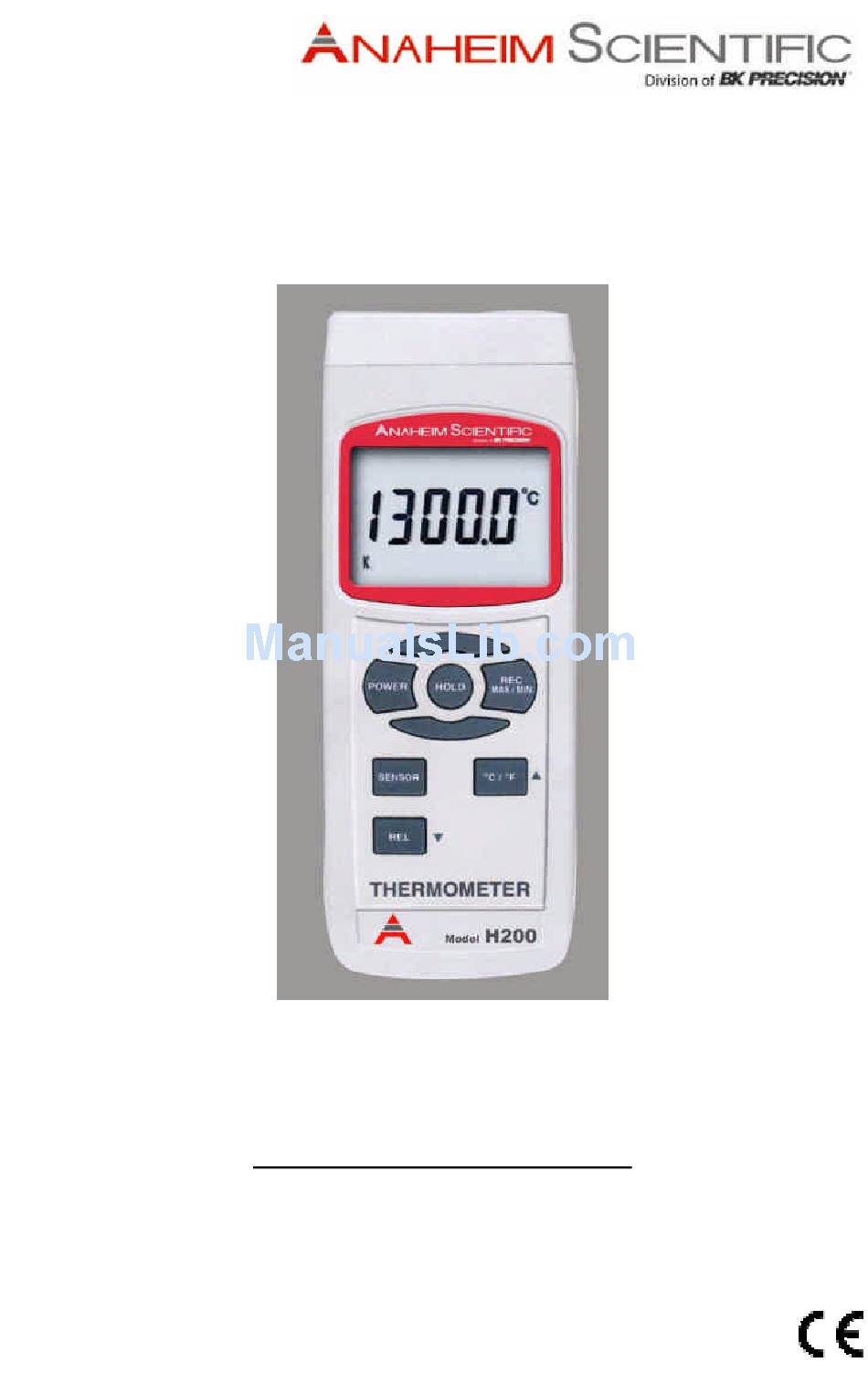

  • Page 1 INSTRUCTION MANUAL Models: H200 Single Channel K, J, T, E, R Thermometer...

  • Page 3: Table Of Contents

    Table of Content 1. Product Introduction ………………………………………… 3 1-1 Features ………………….………………………… 3 1-2 Applications ……………………………………...… 3 2. Safety Information …………………………………………… 4 2-1 Cautions ………………………………..………..… 4 2-2 Safety Symbol s ………………………..…..……… 4 3. Specifications……………………………………...…………. 5 4. Operation Instructions……………………………………… 6 4-1 Unit Diagram ……………………………………… 6 4-2 Measuring Procedure ……………………….…...

  • Page 4: Product Introduction

    1. Product Introduction 1-1 Features  Measures temperature fro m five different types of thermocouples  0.1 Resolution  Fast response ti me  High level of accuracy  Large LCD display  Two year warranty 1-2 Applications  Science Experiments ...

  • Page 5: Safety Information

    2. Safety Information Read the follow ing safety information carefull y before attempting to operate or serv ice the meter. Onl y qualified personnel should perform repairs or serv i c ing not cov ered in this manual. 2-1 Cautions! DO NOT submerge the products mentioned in this manual in w ater or any other ty pes of liquids.

  • Page 6: Specifications

    3. Specifications Unit of Measurement °C or °F Temperature Compensation Automatic for cold junction on K & J type Thermocoupl e Types K, J, T, E & R Thermocouple Type Resolution Range Accuracy* -50.0 to 1300.0°C +( 0.2 % + 0.5°C ) 0.1°C -50.1 to -100.0°C +( 0.2 % + 1°C )

  • Page 7: Operation Instructions

    4. Operating Instructions 4-1 Unit Diagram Fig. 1 4-1 Displ a y 4-8 RS232 Socket 4-2 Power Button 4-9 Battery Compartment 4-3 Hold Button 4-10 Thermocoupl e Input Socket 4-4 REC (MAX/MIN ) Button 4-11 Stand 4-5 Sensor Button 4-13 Tripod Screw Mount 4-6 REL () Button 4-12 Battery Cover Screw 4-7 C°/F°...

  • Page 8: Measuring Procedure

    4-2 Measuring Procedure 4-3 Thermocouple Measuring Procedure 1. Power on the meter by pressi n g the “ Power Button” (4-2, Fig. 1). The meter will go through a short self test. 2. Select the sensor type by pressing the “ Sensor Button” (4-5, Fig.1). As you press this button multiple time the meter will displ a y the sensor type along the bottom of the LCD.

  • Page 9: Rel Mode

    4-8 REL Mode 1. It is recommended that you memorize the value on the LCD displ a y first. Also note that the REL function does not work when the meter is in Data Hold or Data Record conditions. 2. To remove any displayed value from the LCD you can press the “ REL Button” (4-6, Fi g . 1). The display will then go to zero and you will see the REL marker in the top portion.

  • Page 10: Rs232 Pc Serial Interface Information

    6. RS232 PC Serial Interface Information This instrument has RS232 PC serial interface via a 3. 5 mm terminal (4-12, Fig. 1). The data output is a 16 digit stream which can be utilized for user's specific application. A RS232 lead with the foll o wing connection will be required to link the instrument with the PC serial port.
  • Page 11 The 16 digit data stream will be displayed in the following format: D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1D0 Each digit indicates the following status: Start Word D12 & D11 Indicator for Display °C = 01 °F = 02 Polarity: 0 = Positive / 1 = Negative...

  • Page 12: Battery Replacement

    7. Battery Replacement 1. When the LCD di s play shows the “ ” low battery symbol , It is necessary to replace the battery. The specifications listed for this instrument do not appl y when the low battery symbol is displayed. 2.

  • Page 13: Service Information

    8. Service Inform ation Warranty Service: Please return the product in the original packaging with proof of purchase to the address below . Clearly state in writing the performance problem and return any leads, probes, connectors and accessories that you are using w ith the device. Non-Warranty Service: Return the product in the original packaging to the address below .

  • Page 14: Warranty Information

    9. Lim ited Two-Year Warranty Anaheim Scientific w arrants to the original purchaser that its products and the component parts thereof, w ill be free from defects in workmanship and materials for a period of tw o years from date of purchase from an authorized Anaheim Scientific distributor.
  • Page 16 Anaheim Scientific 22820 Savi Ranch Par kw ay Yorba Linda, CA 92887 U.S.A. www.anaheimscientific.com Printed in Tai w an / Ver. 1.0/0606 © 2006 Anahei m Scientific Corporation...
