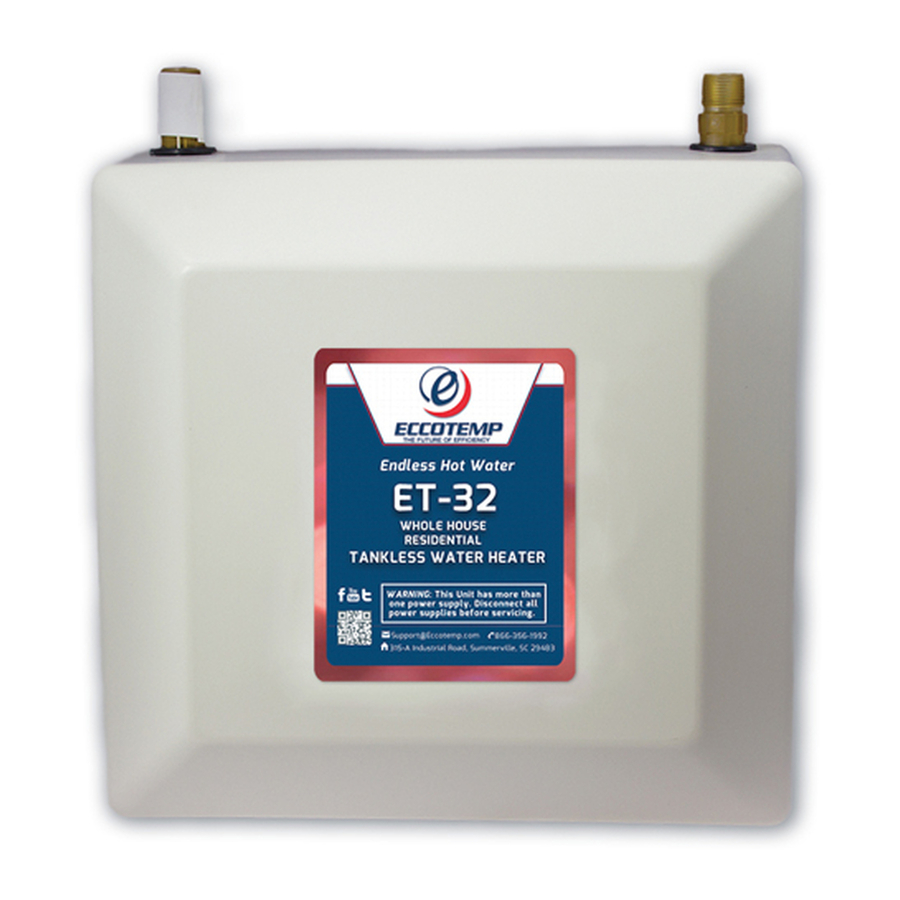

- Page 1 ECCOTEMP ET-14 / ET-22 / ET-32 Residential Water Heaters Installation and Operating Instruction Manual Shop Online Store Locator Product Support Eccotemp.com/products Eccotemp.com/help-desk Eccotemp.com/locator 315-A Industrial Road, Summerville, SC 29483 866-356-1992 support@eccotemp.com...
- Page 2 IF YOU HAVE ANY QUESTIONS OR REQUIRE ANY ASSISTANCE WITH THE INSTALLATION OR THIS UNIT, PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT AT THE NUMBERS LISTED BELOW. PLEASE HAVE THE INFORMATION LISTED BELOW WHEN CALLING : SERIAL #: MODEL #: INSTALLATION DATE: ECCOTEMP SYSTEMS, LLC 315-A Industrial Drive Summerville, SC 29483 866-356-1992...
- Page 3 GE N ER AL SAFET Y Eccotemp residential heaters are designed to take in cold or pre-heated water and heat it to temperatures suitable for normal domestic usage up to a maximum of 130°F. To obtain optimum performance and energy savings, the unit should be located as near as possible to the point of use.
-
Page 4: Table Of Contents
TABLE OF CONTENTS G e ne r a l Sa fe t y ..........Ins i d e Cove r In t ro d u c ti o n to t h e ECCOTE MP WATE R H EATER . - Page 5 The Eccotemp uses a patented* technology that combines and implements the best of both. Only Eccotemp has been able to develop a water heater that is inherently highly energy efficient, modular, rust free, scale resistant, and endlessly responsive to the varying demands of flow.
-
Page 6: Fe At U Re S An D B En E Fi T S
CONTINUOUS NEVER ENDING HOT WATER Take, ten, twenty, one hundred baths or showers one right after another and never run out of hot water. As long as you need hot water, your Eccotemp heats the water AS YOU USE IT – CONTINUOUSLY. -
Page 7: Do S An D Do N ' Ts
Your Eccotemp is so small and attractive, you should NEVER need to install it in attics or areas difficult to monitor or service. -
Page 8: I Nstallat I O N G U I De
PROPERTY DAMAGE PROTECTION WHEN INSTALLING THE Eccotemp IN ANY AREA THAT IS NOT READILY VISIBLE OR ROUTINELY MONITORED INCLUDING CLOSETS, CABINETS, ATTICS OR ANY OTHER AREAS WHERE LEAKS OF ANY... - Page 9 Do not plug the relief valve. DRAIN PAN The Eccotemp heater must be located in an area where water leakage of the unit or connections will not result in damage to the area adjacent to the appliance or to lower floors of the structure. When such locations cannot be avoided, it is required that a suitable drain pan, adequately drained, be installed under the appliance.
-
Page 10: E Le C Tr I C A L I N St Al L A T Io N
EL E CT R I CA L IN STAL LAT IO N G U I DE CONNECTION TO POWER SUPPLY WARNING: YOUR ECCOTEMP MUST BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL. DAMAGE TO YOUR UNIT, SERIOUS PERSONAL INJURY OR DEATH MAY OCCUR IF INSTALLED OR HANDLED IMPROPERLY. - Page 11 ECCOTEM P MO U N T I N G C L E A R A N C E S Top Clearance: For removal of heating elements and to provide room for plumbing connections, a minimum of 12 inches is required. Side Clearance: Allow an overall minimum horizontal space for the heater of 24 inches for removal of protective cover screws and access to electrical wires entering the heater from the side.
- Page 12 USE EXTREME CAUTION WHEN CHECKING VOLTAGE TO THE UNIT. • Check the voltage available to each active power circuit. Eccotemp models rated 5KW to 28KW are designed to operate from a 208V to 240V power supply. Connect a voltmeter at power circuit 1 (CKT 1) between L1 and L2.
- Page 13 The heater’s control provides self diagnostics by emitting a red flashing code. The code definitions and possible solutions can be found in the Troubleshooting section of the Eccotemp Service Manual.
-
Page 14: Temperature Adjustment
SYSTE M M ATCH – FAU C E T S A N D H E ATE R When a Eccotemp water heater is selected for the home or building, the faucets should also be selected to match the flow rating and temperature rise specifications of the heater. The Eccotemp water heater specifications can be found in the Product Description and Specifications section of the Product Guide. -
Page 15: Li M Ited Wa R R An T Y
An RMA number is required for all returns to Eccotemp. Circuit Board or Chamber Body replacements to the original purchaser, made after the initial warranty expires and not later than ten years will be replaced by Eccotemp, subject to replacement charges not to exceed 25% of the current manufacturer’s suggested retail price of the unit model for which it was originally installed, or a... -
Page 16: Wa R R An T Y Claim S Proc E D U R E
If service personnel have repaired the unit to operable condition with their own inventory, Eccotemp Systems, LLC, upon receipt of defective parts, will replace or issue credit for those parts verified to be under warranty. -
Page 17: T Ro U B L Es H Oot I N G G U I De
* Do not attempt to fill a large bathtub at full faucet flow. Tub faucets are designed to dump hot water from a storage tank heater to maximize the useful quantity available. Your Eccotemp will take longer to fill a tub, especially in the cooler months of the year but you will have continuous hot water for as long as you wish to bathe for as many baths as you desire. -
Page 18: Pro Du C T S P Ec I Fic At I O N S
(2) 2-pole, 50A ET-28 (4) 2-pole, 30A (2) 2-pole, 60A ET-32 (4) 2-pole, 40A (2) 2-pole, 70A Optional wiring method shown in italics – VERIFY CORRECT JUMPER INSTALLATION on control board when using a single breaker for two Chamber Models or 2 breakers for Four Chamber models. Be sure to REMOVE JUMPERS when using two breakers for two chamber models or 4 breakers for four chamber models. -
Page 19: P Ar T S D I Ag R A Ms
FO U R C H AM BE R MO DE L S IN TE R N A L WO R K IN G S A N D PA R TS I DEN T IF I CAT I O N LEGEND LEGEND Heating Element #1 16. - Page 20 T WO C H AM B ER MO DE LS I NTE RN A L WO R K I N GS A N D PA R TS I DE NT IF I CATI O N LEGEND LEGEND Heating Element #1 14.
-
Page 21: W Ir Ing Diag R A Ms
W IR ING DIAG R A MS T WO C HA M B E R - S IN GLE CI RCU IT... - Page 22 WI R ING DI AGR A MS T WO C H A MB E R - D UAL CI RCU ITS...
- Page 23 W IR ING DIAG R A MS FO U R CH A M B E R - D UAL CI RCU I TS...
- Page 24 WI R ING DI AGR A MS FOU R C H A M B E R - FO UR CI RCU I TS...
- Page 25 Address: Phone: NOTES AND SERVICE: Your Eccotemp can be serviced by most major brand authorized appliance repair or heating and plumbing centers in your area. If your preferred service center does not already have service information, Eccotemp Systems, LLC, will, upon request and with no charge, promptly fax the information to the service center.
- Page 26 ECCOTEMP ET-14 / ET-22 / ET-32 Residential Water Heaters Installation and Operating Instruction Manual Shop Online Store Locator Product Support Eccotemp.com/products Eccotemp.com/help-desk Eccotemp.com/locator 315-A Industrial Road, Summerville, SC 29483 866-356-1992 support@eccotemp.com...
