Summary of Contents for Shunxun SX-HE01
- Page 1 H.264 HD HDMI Encoder for IP TV Operation Instructions ...
-
Page 2: Table Of Contents
Table of Contents Features........................3 Package Contents...................... 3 Hardware Description ....................4 Typical Application ..................... 4 Environment Configuration ..................5 5.1. Software ......................5 5.1.1. Change the IP Address of PC ................. 5 5.1.2. Login for configuration..................6 5.1.3. Check the stream address ................6 Encoder Setting ...................... -
Page 3: Features
Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. FEATURES Support H.264 encoding. Support UDP, HTTP, RTSP, RTMP, ONVIF protocol. ... -
Page 4: Hardware Description

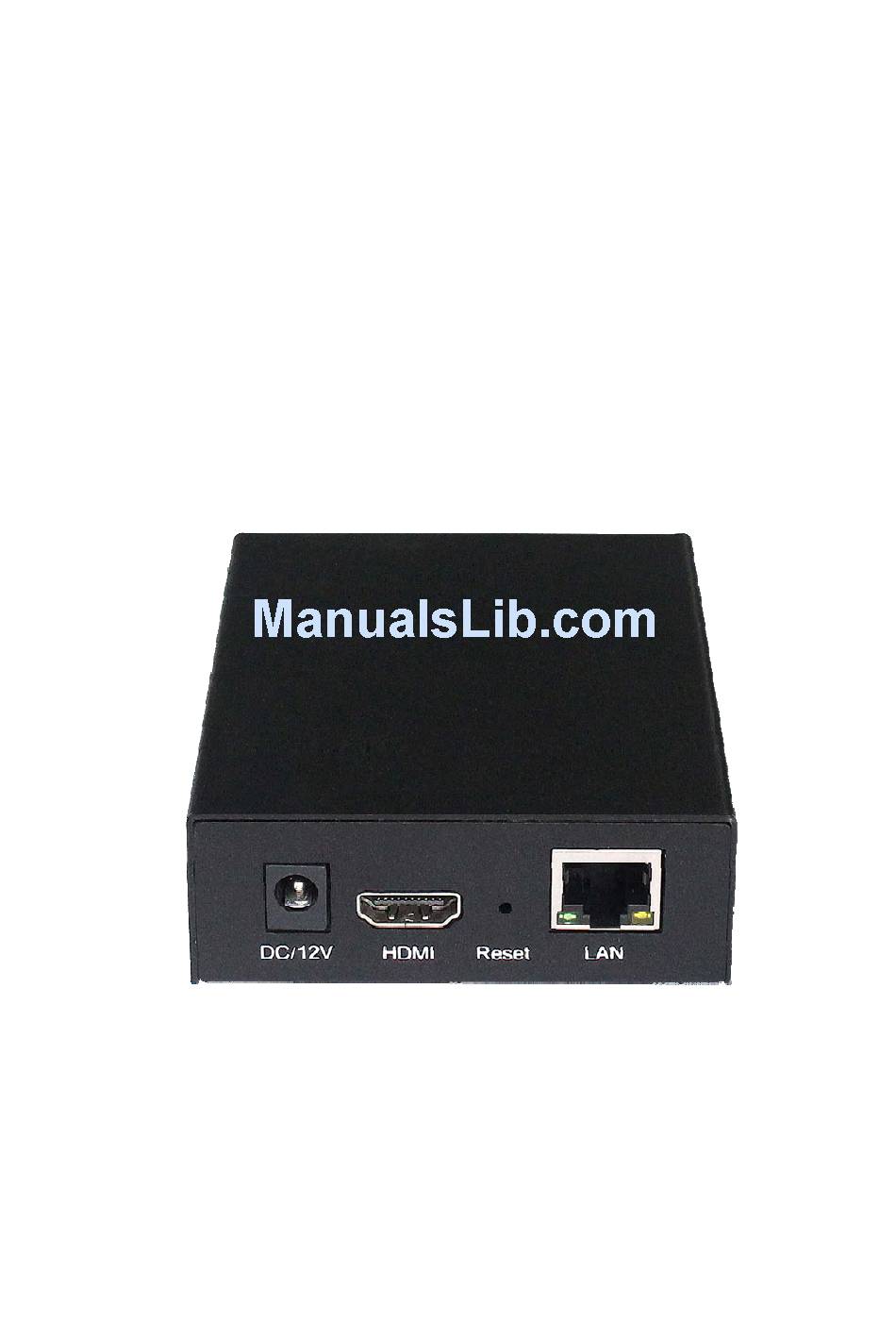

3. HARDWARE DESCRIPTION ① Power input port ② HDMI input ③ Reset button ④ LAN output ⑤ Indicator of power input ⑥ Indicator of LAN output ⑦ Indicator of HDMI input Note: . Reset to the factory default setting: press “Reset” for 10 seconds till all three indicators go out. -
Page 5: Environment Configuration
5. Environment Configuration 5.1 Software 5.1.1 Change the IP Address of PC Assign the PC (or laptop) IP address on the computer: “Control Panel”→ “Network Connections”→ “Local Area Connections Status”→ “Properties”→ “Internet Protocol (TCP/IP)”→Type the IP address with 192.168.1.XX (0-255) and Subnet mask with 255.255.255.0. -
Page 6: Check The Stream Address
5.1.3 Check the stream address As below, the stream address is in the red frame. 6. Encode Setting 6.1 Encode Setting Click Encode setting→Main stream→Setting the parameters→Click Apply ... -
Page 7: Audio Setting
6.2 Audio setting Click encode→Audio→Setting the parameters→Click apply 6.3 Advanced Click Encoder→Advanced→Setting all the parameter→Click apply. ... -
Page 8: Osd Setting
7. OSD Setting 7.1 Streaming OSD Setting Click OSD→Network→Setting all the Parameter→Click apply, as below picture show 7.2 LOGO uploading Click logo upload→provide the logo picture as the requirements→Click Apply ... -
Page 9: System Setting
8. System 8.1 Network Click system→Network→Setting all the parameter→Click apply. 8.2 Change password System→Change password→Set your password→Apply ... -
Page 10: Reset
8.3 Reset System→Reset→Reset 8.4 Reboot System→Reboot→Reboot (please refresh the web after 1 minute) ... -
Page 11: Application
9. Application 9.1 User Application Example 9.1.1 Web Video Preview Status→Main stream→Preview Belowing picture is the preview effect: ... -
Page 12: Vlc Play
9.1.2 VLC Play Connect HDMI source to the HD encoder, open VLC media player (Download website： http://www.videolan.org/） ，Click “Media”, then click“Open Network Stream”. Enter Stream URL which showed from the page of Main stream. Click “play”, You can successfully play the video stream encoded from this device. ... -
Page 13: Multi Local User Application Multicast Way
9.2 Multi Local User Application Multicast Way If many local users need watch the video of same HD encoder at the same time, we suggest using multicast. Enable the multicast IP, then re-power the HD encoder. ... -
Page 14: Local Surveillance System Application Nvr Conncetion
There is a multicast URL in the Status page, copy it into the VLC Player. This address can be visited by many visitors at the same time 9.3 Local Surveillance System Application NVR Connection 1. Confirm if NVR support H.264 decoder. Since using ONVIF, you need enable the "RTSP"... -
Page 15: Remote Multi User Application Rtmp Connection
Note: If you've finished above setting and still can't open the video , we suggest you dow nload the standard testing tool to test the ONVIF function of HD Encoder ( Down load ad dress http://url.cn/2ESQRcn) 9.4 Remote Multi User Application RTMP Connection If many users from different location need watch the source of the same HD Encoder, we suggest you use RTMP. - Page 16 Note: If you have finished above setting and still can't open the video, please check as below: 1. Check the collected data of HD Encoder, if it shows 0, then the HD Encoder connectio n is failed; you need check if the hardware connection is correct. 2.
-
Page 17: Warranty
MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;...
