- Page 1 LIF-200 RS232/RS485 to TCP/IP Converter Module USER MANUAL...
- Page 2 Neither RBH Access Technologies Inc. nor its dealers, distributors, or affiliates shall be liable to any person or entity with respect to any liability, loss, or damage caused or alleged to have been caused directly or indirectly by any RBH access control system.
-
Page 3: Table Of Contents
APPENDIX A: PRODUCT SPECIFICATIONS ................... 23 APPENDIX B: GLOSSARY ........................24 APPENDIX C: FINDING THE MAC ADDRESS AND IP ADDRESS FOR YOUR ETHERNET ADAPTER ..............................28 APPENDIX D: SET LIF-200 TO FACTORY DEFAULT ..............29 LIF-200 ............... 29 TO FACTORY DEFAULT WITH PUSH BUTTON... -
Page 4: Getting To Know Your Lif-200

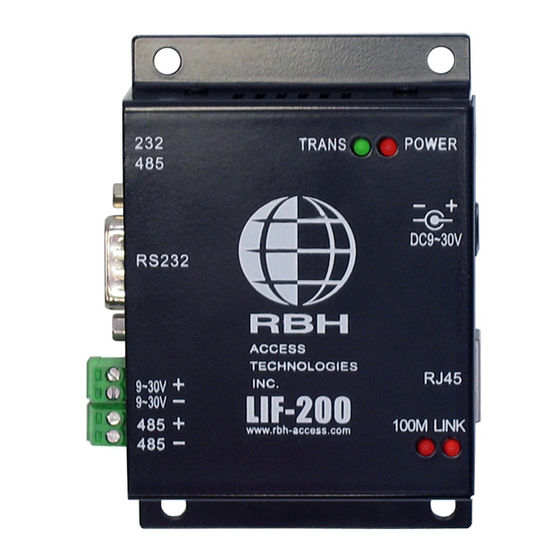

Internet. By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, RBH‟s LIF-200 provides not only a robust and high performance system for connecting your device to a Network, but also ease installation and Internet access. The LIF-200 Web Configurator is a breeze to operate and totally independent of the operating system platform you use. -
Page 5: Applications For Lif-200
1.3. Applications for LIF-200 Figure 1 LIF-200 applications LIF200 User Manual... -
Page 6: Hardware Installation & Initial Setup
2 . H a r d w a r e I n s t a l l a t i o n & I n i t i a l S e t u p 2.1. Hardware Installation 2.1.1. Power Power is connected through either the power input terminals beside the RS485 port or through the center positive modulat plug on the same side as the RJ45 jack. -
Page 7: Led Status
Windows 98/2000/XP and later operating systems. Note: To connect a computer directly to the LIF-200 Ethernet port use a crossover Ethernet cable, if both the computer and the LIF-200 are connected to a hub/switch use a straight-through Ethernet cable. -
Page 8: Lif-200 Basic Configuration Setup
C o n f i g u r a t i o n S e t u p This section will show the basic configuration of the LIF-200. Use the „One Page Quick Setup‟ to connect your device through Intranet or Internet. - Page 9 IP Mode IP Address: default 192.168.168.125 Subnet mask: default 255.255.255.0 Gateway: default 192.168.168.254 Primary DNS: default 168.95.1.1 Serial Port Mode Serial Type: RS232 Baud Rate: 9600 If no suitable Baud Rate appears in the drop-down menu chose “Others” and enter your own value. Operation Mode Connection Mode: TCP Server...
-
Page 10: One Page Quick Setup With Dhcp Client
DHCP Server setting. Note 1: To use a CABLE service, you also need to change the MAC address of the LIF-200 to the MAC address of register at the ISP. Please refer to Chapter 4 Device Admin/Mac Address Change. -
Page 11: One Page Quick Setup With Pppoe
3.3. One Page Quick Setup with PPPoE PPPoE IP Mode User Name: no default, maximum length 47 characters. Password: no default, maximum length 35 characters. Service Name (optional): no default, maximum length 47 characters. Close Connection when Idle Time Over (second): default , range 0 to 4294967295. -
Page 12: Change Password
If you want to keep the connection always on between LIF-200 and your ISP, then set the value of item „Close Connection When Idle Time Over‟ to 0, otherwise, when the on line idle time exceeds the setting value, the LIF-200 will terminate this PPPoE connection. -
Page 13: Lif-200 Advanced Configuration Setup
If your device is configured as passive (to accept commands from a remote, and data reception by the peer needs to be guaranteed) then you can set the LIF-200 as TCP Server. Be sure that the value „Listen Port Number‟ is set to the same value that your remote control application is using. - Page 14 Any Character Start Up means that the LIF-200 will attempt to establish a TCP connection as soon as it is powered up. Any Character means that the LIF-200 will attempt to establish a TCP connection as soon as it starts receiving data from serial port.
- Page 15 If your device is configured as passive (to accept commands from a remote and data reception by the peer needn‟t be guaranteed) then you can set the LIF-200 as UDP Server. Be sure the value „Listen Port Number‟ is set to the same value that your remote control application is using.
-
Page 16: Serial Type
If your device is configured as active (to report real-time status to a remote and data reception by the peer needn‟t be guaranteed) then you can set LIF-200 as UDP Client. Be sure the value „Remote Connection Port Number‟ is set to the same value that your remote control application is using and set the correct value of „Remote Host IP Address‟. - Page 17 , range 0 to 65535. Different devices have different capabilities for handling data received from a serial port. For this reason you can tune this setting to slow down the speed of LIF-200 to fit the speed of your device. LIF200 User Manual...
-
Page 18: Lif-200 Management Setup
Device Management IP Address: default 192.168.200.200 In case the LIF-200‟s IP address is forgotten, you can use this management IP to connect to LIF-200 in order to figure out what the current IP address is. If you set the LIF-200‟s IP Configuration as DHCP or PPPoE, which will assign dynamic IP address to LIF-200, you also can use this management IP address to find out what the current working IP address in Intranet is. - Page 19 MAC address to a registered one when users change their access equipment. (Detail sees Appendix D) Reset System to Factory Default: Click “Apply”, if you want to return all the LIF-200‟s current settings to its factory default. Note: do not restore the factory defaults unless it is absolutely necessary. Reboot System: Click “Apply”, if you want to clear a connection, reboot, and re-initialize the unit without affecting any of...
-
Page 20: Device Status
5.2. Device Status This screen shows the LIF-200‟s current status. All of the information provided is read-only. Product Name the product model name of this LIF-200. Firmware Version: the installed version of the firmware. System up Time: the time of system from start up to current. -
Page 21: Backup And Restore
5.3. Backup and Restore This function allows you to save LIF-200‟s configuration as a backup, or retrieve a configuration file you previously saved to turn the settings back. Backup: Click “Backup” button save the current configuration as a backup file in your hard disk. -
Page 22: Upgrade Firmware
Note: don’t power off the router during the firmware upgrading, otherwise the incompletion of firmware upgrading will cause serious damage to the integrity of the LIF-200’s firmware that will lead to the LIF-200 failing to boot again. LIF200 User Manual... -
Page 23: Ping
5.5. Ping This function allows you to test the connection between the LIF-200 and the LAN or between the LIF- 200 and the Internet. Source IP Address: the current LIF-200‟s IP address (Read Only). Destination IP Address: the IP Address of destination device you want to ping. -
Page 24: Troubleshooting
LIF-200 and your computer. Can not ping any computer on the LAN. Verify that the IP address and subnet mask of the LIF-200 and computer are in the same IP address range. Check the Serial cable connection between LIF-200 and your device. -
Page 25: Appendix A: Product Specifications
IP-Search program, Firmware Upgrade by web Power and Environment Power requirements DC 9V, 300 mA max DC 12V, 230 mA max DC 24V, 160 mA max Operating temp. 0 ~ 55º Dimensions LIF-200 - 67X93X22 mm Regulatory approval FCC, CE LIF200 User Manual... -
Page 26: Appendix B: Glossary
A p p e n d i x G l o s s a r y 10BaseT - An Ethernet standard that uses twisted wire pairs. 100BaseTX - IEEE physical layer specification for 100 Mbps over two pairs of Category 5 UTP or STP wire. - Page 27 Download - To receive a file transmitted over a network. In a communications session, download means receive, and upload means transmit. Dynamic IP Address - An IP address that is automatically assigned to a client station in a TCP/IP network, typically by a DHCP server. Network devices that serve multiple users, such as servers and printers, are usually assigned static IP addresses.
- Page 28 Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a time. Hardware - Hardware is the physical aspect of computers, telecommunications, and other information technology devices. The term arose as a way to distinguish the “box” and the electronic circuitry and components of a computer from the program you put in it to make it do things.
- Page 29 RJ-45 - A connector similar to a telephone connector that holds up to eight wires, used for connecting Ethernet devices. Server - Any computer whose function in a network is to provide user access to files, printing, communications, and other services. SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet.
-
Page 30: Appendix C: Finding The Mac Address And Ip Address For Your Ethernet Adapter
This section describes how to find the MAC address for your computer‟s Ethernet adapter so you can use the MAC address change feature of the LIF-200. You can also find the IP address of your computer‟s Ethernet adapter. This IP address is used for the LIF-200‟s configuration. Follow the steps in this appendix to find the adapter‟s MAC or IP address in Windows 98, Me, 2000, or XP. -
Page 31: Appendix D: Set Lif-200 To Factory Default
Set LIF-200 to factory default with push button 1. Power off LIF-200. 2. Click & hold the Reset Button. 3. Power on LIF-200. 4. Release the Reset Button after about 3 seconds. 5. The LIF-200 is now reset to the factory default settings. LIF200 User Manual... -
Page 32: Set Lif-200 To Factory Default Using Rs232 Communications
1) Connect LIF-200 to computer via RS-232 cable and set RS232/485 switch to the RS232 position. You must use a crossover cable. The second pin of the LIF-200 connects to the third pin of the computer and the third pin of the LIF-200 connects to the second pin of the computer. - Page 33 c) Configure your port settings as follows: i) Set: Bits per second = 115200 ii) Set: Data bits = 8 iii) Set: Parity = None iv) Set: Stop bits = 1 v) Set: Flow control = None LIF200 User Manual...
- Page 34 Click „OK‟ to confirm port settings. 3) With HyperTerminal™ set as the working window repower the LIF-200 and click “Ctrl+R” within three seconds of the LIF-200 being powered on. 4) Use IP Locator to confirm that the factory default settings have been reset.
