Summary of Contents for EnduroSat S-BAND / UHF TRANSCEIVER
- Page 1 USER MANUAL Communication Module...
-
Page 2: Table Of Contents
S-BAND / UHF TRANSCEIVER – USER MANUAL Change log ........................3 Acronyms list ........................4 System Overview ....................... 5 Highlighted Features ......................6 Transceiver S-Band ......................... 6 Transceiver UHF ........................6 System Description ......................7 Electrical Characteristic ..................... 9 Transceiver S-Band ......................... 9 Transceiver UHF ........................ -
Page 3: Change Log
S-BAND / UHF TRANSCEIVER USER MANUAL This user manual is specially designed to detail the EnduroSat S-Band / UHF Communication module functions and features. Please read this manual before unpacking and using the module to ensure safe and proper use. -
Page 4: Acronyms List
S-BAND / UHF TRANSCEIVER – USER MANUAL ACRONYMS LIST Bit Error Rate Berkeley Packet Filter ECSS European Cooperation Space Standardization Electromagnetic interference European Space Agency Electrostatic Discharge GEVS General Environmental Verification Standard. GFSK Gaussian Frequency Shift Keying Ground Inter-Integrated Circuit... -
Page 5: System Overview

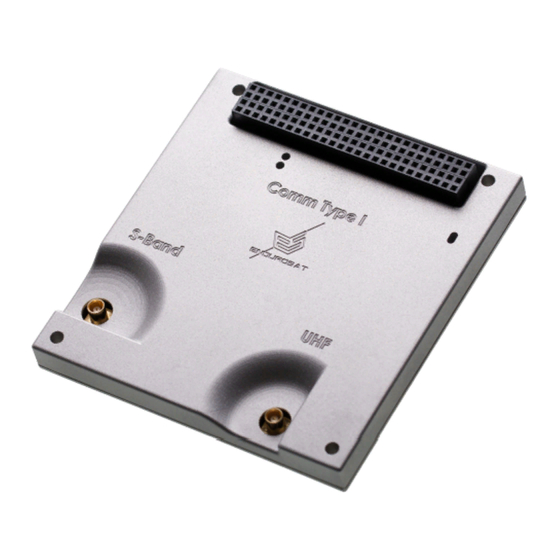

S-BAND / UHF TRANSCEIVER – USER MANUAL SYSTEM OVERVIEW This S-Band / UHF communication module features dual frequency communication via totally independent half-duplex transceivers on a single PCB. Both bands are in the amateur range and can be configured in the whole allocated spectrum – 430-440 MHz and 2400-2480 MHz for the UHF and S-Band respectively. -
Page 6: Highlighted Features
S-BAND / UHF TRANSCEIVER – USER MANUAL HIGHLIGHTED FEATURES Transceiver S-Band Frequency range: 2400-2480 MHz; • Typical transmit power: 2 W (33 dBm); • Power amplifier efficiency: >40%; • Power supply: 5 V +/- 0.25 V; • Typical current consumption: up to 1.35 A;... -
Page 7: System Description
S-BAND / UHF TRANSCEIVER – USER MANUAL SYSTEM DESCRIPTION The S-band transceiver works in the frequency range 2400 – 2480 MHz with GFSK modulation. In the core of this S-band transceiver there is a high performance IC which is a zero-IF transceiver. It is responsible for the output signal forming and also down converting and demodulating of the input signal. - Page 8 S-BAND / UHF TRANSCEIVER – USER MANUAL The UHF transceiver works in the frequency range 430 – 440 MHz with GFSK modulation. In the core of this UHF transceiver there is a high performance IC which is a zero-IF transceiver. It is responsible for the output signal forming and also downconverting and demodulating of the input signal.
-
Page 9: Electrical Characteristic
S-BAND / UHF TRANSCEIVER – USER MANUAL ELECTRICAL CHARACTERISTIC Transceiver S-band Parameter Condition Unit Supply voltage 4.75 5.25 Current consumption RX 1280 @250kbps Current consumption TX 1150 @500kbps packet size: 30byte @1Mbps @2Mbps 1335 @250kbps 1235 @500kbps Current consumption TX... -
Page 10: Rf Characteristics
S-BAND / UHF TRANSCEIVER – USER MANUAL RF CHARACTERISTICS Transceiver S-Band Parameter Condition Unit Freq. Range 2400 2480 Output Power Channel Distance Number of Channels Bit Rate 4 different bit rates kbps 2048 PER < 1% @250kbps PER < 1% @500kbps High Sensitivity (0.1% BER) - Page 11 S-BAND / UHF TRANSCEIVER – USER MANUAL Figure 5 - Central frequency 2411MHz - 500kbps - 100MHz Figure 6 - - Central frequency 2411MHz - 1Mbps - 100MHz ENDUROSAT...
- Page 12 S-BAND / UHF TRANSCEIVER – USER MANUAL Figure 7 - - Central frequency 2411MHz - 2Mbps - 100MHz Figure 8 - Central frequency 2411MHz - 500kbps - 20MHz ENDUROSAT...
- Page 13 S-BAND / UHF TRANSCEIVER – USER MANUAL Figure 9 - - Central frequency 2411MHz - 1Mbps - 20MHz Figure 10 - Central frequency 2411MHz - 2Mbps - 20MHz ENDUROSAT...
-
Page 14: Transceiver Uhf
S-BAND / UHF TRANSCEIVER – USER MANUAL Transceiver UHF Parameter Condition Unit Freq. Range Output Power 12.5 Channel Distance Number of Channels fixed 9600 Serial Port Baud Rate 2 different baud rates 2000 12000 Baud Rate In The Air PER<1% @2000bps... - Page 15 S-BAND / UHF TRANSCEIVER – USER MANUAL Figure 12 - - UHF Transmitter 2000 baud rate - 2 MHz Figure 13 - - UHF Transmitter 12000 baud rate - 2 MHz ENDUROSAT...
-
Page 16: Connector Pinout
S-BAND / UHF TRANSCEIVER – USER MANUAL CONNECTOR PINOUT Connectors Location Figure 14 - - Connectors Location MCX 1 - S-Band Antenna Connector MCX 2 - UHF Antenna Connector ENDUROSAT... -
Page 17: H1 - Stack Connector
S-BAND / UHF TRANSCEIVER – USER MANUAL H1 - Stack Connector Mnemonic Description H1-19 RXD0 UART RX data – S-band (debug purposes) H1-20 TXD0 UART TX data – S-band (debug purposes) H1-33 RXD1 UART RX data – UHF H1-35 TXD1 UART TX data –... - Page 18 S-BAND / UHF TRANSCEIVER – USER MANUAL Figure 15 - Headers pinout ENDUROSAT...
-
Page 19: Mechanical Drawing
S-BAND / UHF TRANSCEIVER – USER MANUAL MECHANICAL DRAWING The following pictures show the external dimensions of the S-band / UHF communication module. STEP files can be provided upon request. All dimensions are in mm. Figure 16 - Communication module - top view... -
Page 20: 10 Envinronmental And Mechanical Testing
S-BAND / UHF TRANSCEIVER – USER MANUAL 10 ENVINRONMENTAL AND MECHANICAL TESTING A full campaign of tests at qualification level was performed on the qualification engineering model. Qualification tests level and duration follow the ESA standard ECSS-E-ST-10-03C and GEVS: GSFC- STD-7000A. -
Page 21: Warnings
S-BAND / UHF TRANSCEIVER – USER MANUAL WARNINGS This product uses semiconductors that can be damaged by electrostatic discharge (ESD). Observe precautions for Handling Sensitive Electronic device. Do not ship or store near strong electrostatic, electromagnetic, magnetic radioactive fields. Communication module.
