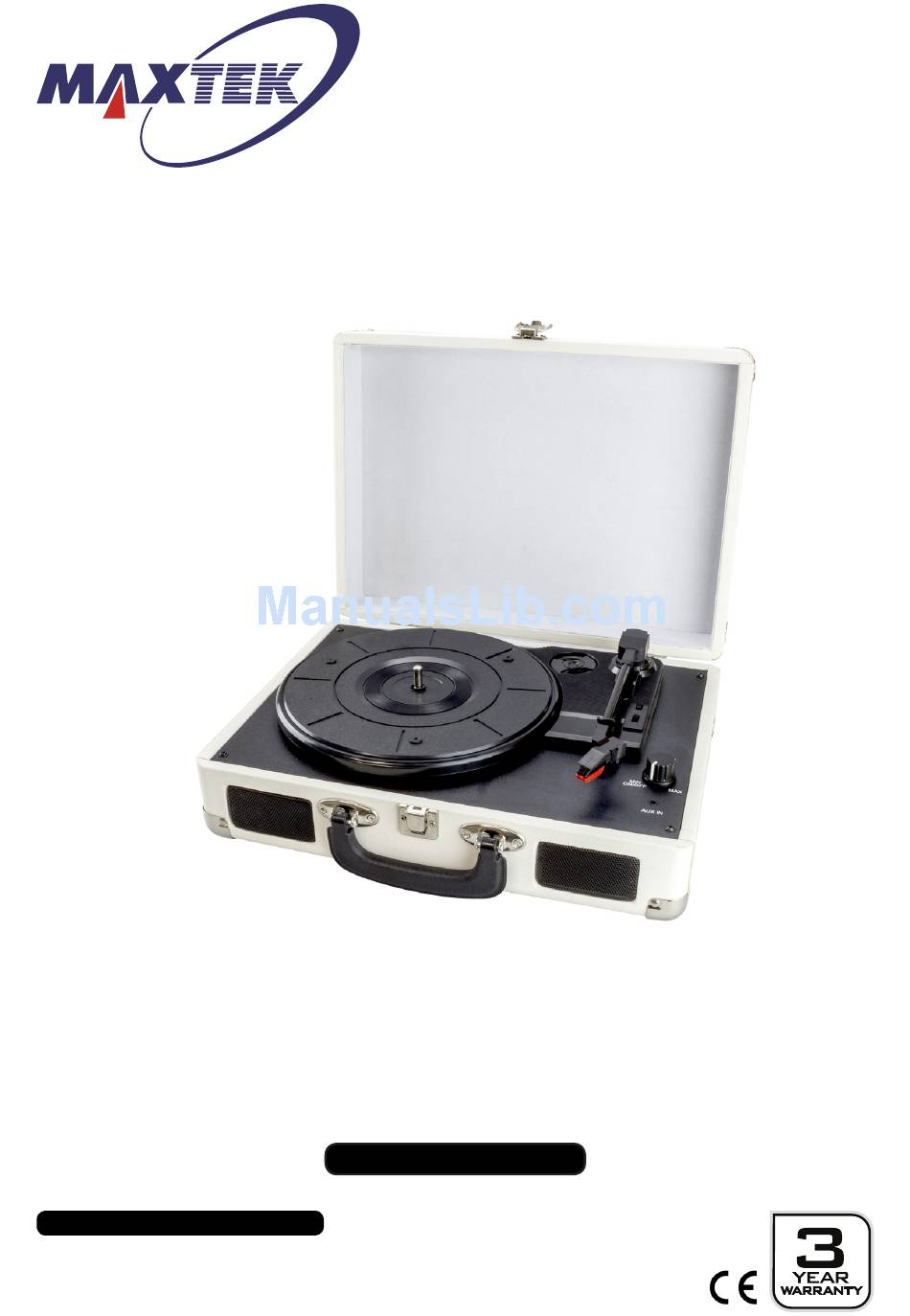

- Page 1 Vintage Suitcase Turntable MODEL NUMBER: 72413 USER GUIDE After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
-
Page 2: Table Of Contents
Contents Welcome Section General Information & Safety Instructions Contents & Features Layout Setting Up Playing a Record • Setting the Speed • Placing a Record • Starting the Record • Using the Auto Off 7-8. Maintenance • Replacing the Stylus •... -
Page 3: Welcome Section
Welcome Section Congratulations! You have made an excellent choice with the purchase of this quality MAXTEK product. ® By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Quesh Ltd. -
Page 4: General Information & Safety Instructions
General information & Safety Instructions Please read the following safety information before use. C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN • To avoid risk of electric shock do not attempt to open this appliance. •... -
Page 5: Contents & Features
Contents & Features Contents 1 x Record player case 1 x Stylus cartridge 1 x 5V/1A USB mains adaptor 1 x USB cable 1 x Phono to 3.5mm Audio cable 1 x AUX cable 1 x Audacity Software CD Features •... -
Page 6: Layout
Layout Inside 45 RPM Adaptor Spindle Tone Arm Turntable Auto Stop RPM Switch On/Off/Volume AUX IN Tone Arm Speakers Catch Back USB ‘B’ L/R Phono Power input Line Out After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk... -
Page 7: Setting Up
Setting Up Plug the 5V/1A USB mains adaptor in to a suitable power outlet. Connect the USB cable from the mains adaptor to the record player. Unfasten the front catches and raise the lid of the case. Remove the cable twist that secures the tone arm in place so it is ready for use. Remove the cartridge cover and keep it safe. -
Page 8: Playing A Record
Playing a Record Setting the speed On the record label itself there will be a direction to what speed the record should be played at. This will be either: • 33 RPM • 45 RPM • 78 RPM Move the RPM switch to the appropriate speed setting. Placing the Record Always handle records by the edge and/or label. -
Page 9: Maintenance
Maintenance Replacing the Stylus After 75-100 hours of use with the needle supplied it is advised you replace the stylus to keep good sound quality and minimise and possible damage to the record. To do this you will need to slide the styles down and away from the cartridge on the tone arm. -
Page 10: Replacing The Cartridge
Maintenance Replacing the Cartridge If you want to upgrade or replace your cartridge you can by removing the existing one. You will need a small flat head screwdriver in order to do this. Remove the stylus as previously describe on page 7 before attempting to remove the cartridge in order to protect the stylus. -
Page 11: Aux In
AUX IN It is possible to play a device through the record case’s speakers by connecting a 3.5mm audio cable to ‘AUX IN’ port. Make sure the connected device is set at maximum output volume. Use the volume dial on the record player case to adjust the final output volume level. Recording from a Record Method 1 It is possible to make a recording of a record on your PC or laptop. -
Page 12: Method 2
Method 2 It is possible to make a recording of a record on your PC or laptop. You will need to connect the ‘USB B’ end of the lead to the back of the record player case, and the standard USB end into a USB port on a PC or Laptop. -
Page 13: Alternative Audio Output
Alternative Audio Output It is possible to connect the record player to an external speaker system like an amp stack or a Line In/Audio In port on a device. Connect a phono cable (not supplied) to the appropriate colour ports on both the record player and external device. -
Page 14: Record
Record Groove Guard Lead In Groove Groove Scratch (LP only) Locked Groove/ Dead Wax Label Centre Hole General Record Care • Always handle the record at the edge and/or label to keep the groove free from finger grease and debris. •... -
Page 15: Faq
Crackling Sound This can be caused by dirt on the record or the stylus and static. • Clean the record with a carbon fibre record brush following the grooves to remove general dust and debris. • Clean the stylus with a carbon fibre stylus brush starting from the back and brush forward to remove general dust and debris. -
Page 16: Specifications
Specifications Vintage Suitcase Turntable Weight: 2.5Kg Approx. Dimensions: 350mm x 255mm x 115mm Audio Type: Stereo/Mono Speakers: 2 x 3W Maximum Speaker Output: Approx. 90dB AUX IN Port: 3.5mm Line Out Port: Phono (L/R) Stylus Size: 0.45mm Tone Arm Downforce: Approx. - Page 17 INTENTIONALLY LEFT BLANK...
- Page 18 Warranty Certificate Warranty This product is warranted to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
- Page 19 Warranty Card Vintage Suitcase Turntable Model Number: 72413 Please keep your purchase receipt together with your warranty card Name: Address: Date of purchase: Location of purchase: Fault Description: We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this warranty card and keep it for your reference.
