Summary of Contents for ACKERMANN 16-2017PAL / NTSC
-

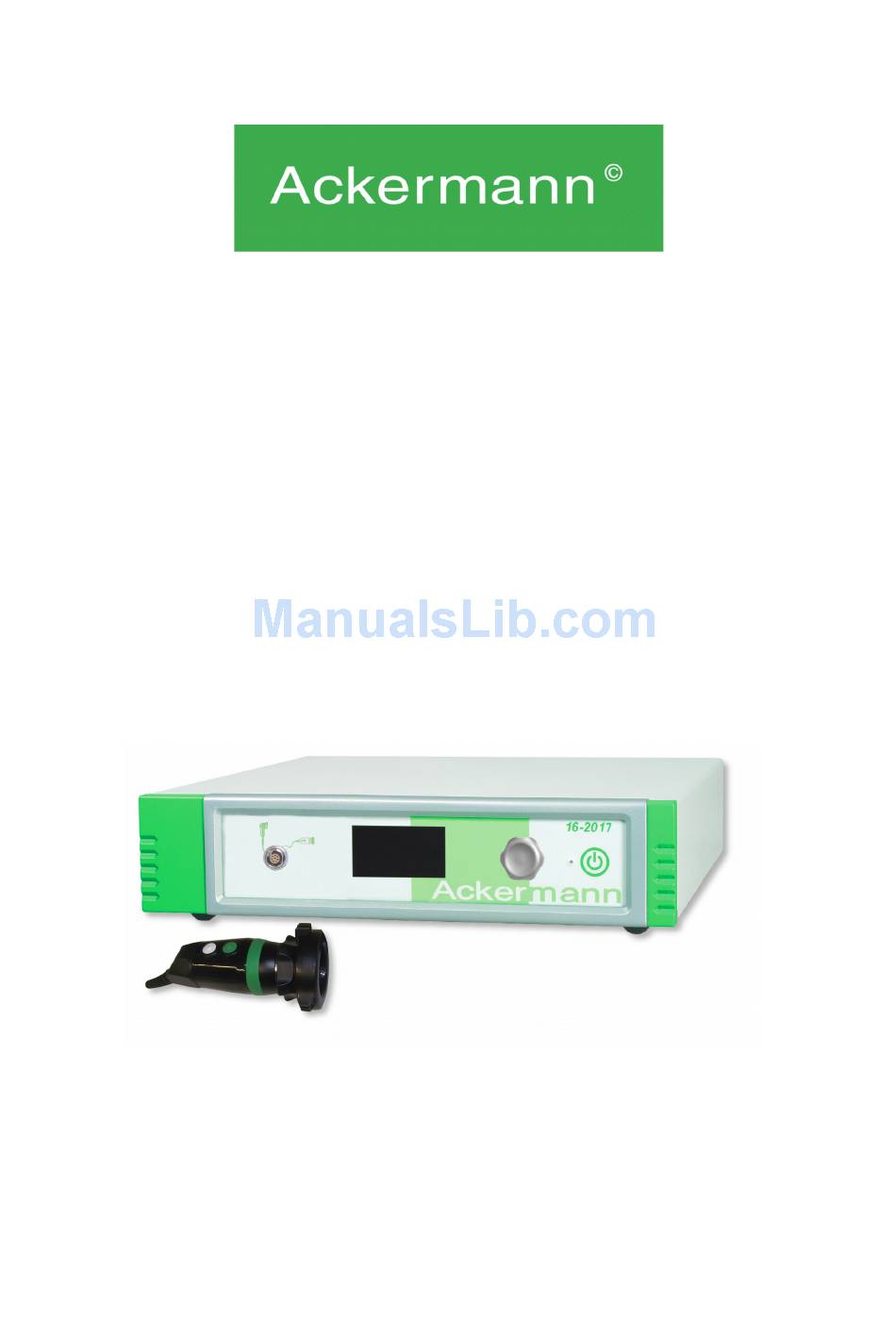

Page 1: User Manual
USER MANUAL 16-2017PAL / NTSC CCD MONO CAMERA... -
Page 2: User Manual 16-2017Pal / Ntsc Rev
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 These operating instructions contain information that is subject to copyright. All rights are reserved. This manual should not be photo-copied, duplicated on microfilm or otherwise copied or distributed, completely or in part, without the approval of the manufacturer. The manufacturer will appreciate any errors or anything unclear in this operating manual being pointed out to us by users of our products. -
Page 3: Table Of Contents
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 CONTENTS PAGE 1. FOREWORD 2. PRESENTATION OF THE CAMERA 3. SAFETY INSTRUCTIONS 4. NOTICE REQUIRED BY LAW 5. INSTALLATION OF THE CAMERA 6. CONNECTING THE ENDOSCOPE 7. OPERATION IN AUTOMATIC MODE 8. OPERATION IN MANUAL MODE 9. -
Page 4: Foreword
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 1. FOREWORD Thank you for the trust you have shown in us by acquiring this device. To derive maximum benefit from it whilst also taking all the requisite precautions, you must read this manual. -
Page 5: Notice Required By Law
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 • Do not splash water onto the device or leave it in a location that is too humid; • Only use the accessories provided with the device or offered on an optional basis by the manufacturer;... -
Page 6: Installation Of The Camera
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 4.3 MATERIO-VIGILANCE Like any medical system, this device is subject to the provisions pertaining to a materio vigilance; any serious disfunction must therefore be promptly notified to the competent authorities and the manufacturer with the greatest possible precision. -
Page 7: Connecting The Endoscope
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 It is prohibited to carry out a surgical operation with the USB2 output; a video output must be connected to the monitor. Only the EMPIA2820 driver should be installed for the video camera’s USB2 output. (The driver is available with the CD delivered.) -
Page 8: Operation In Manual Mode
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 You should carry out the following steps: • Once the video camera is connected to the endoscope, the ambient light is reduced to a minimum, and the light source is active, film a white surface. - Page 9 USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 • Semi-Rigid • Flexible • User’s choice 8.2 WHITE BALANCING There are two ways of initiating the white balance. 1. From the control channel unit, by pressing the wheel when the AWB white balance icon is selected.
-
Page 10: Description Of The Front And Back Panel
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 2. Video BRIGHTNESS This parameter changes the overall brightness of the image. WINDOWS Shutter analysis window: The surface of the image by which the camera analyzes the amount of light received, in order to adapt the speed of the shutter and get the right exposure time. This function allows to obtain a good exposure. - Page 11 USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 9.1 MAINS CONNECTOR/ FUSES The video camera is powered via the mains connector fitted to the back panel [C2], which must be connected to the mains using the cord provided with the camera. This connector features a fuses compartment with a cover [F1] as well as the master switch for powering up the device [S9].
-
Page 12: Procedure For Disinfecting The Sensor
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 9.3 PERIPHERAL OUTPUT A peripheral output [C6] enables print-outs, screen shots, etc. via a 3.5 mm stereo jack cable, using the control wheel on the sensor. A "p" will be displayed on the screen when this function is activated from the head of the video camera. -
Page 13: After-Sales Service
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 11. AFTER-SALES SERVICE No special maintenance on the video camera is required. Reminder: Misuse is not covered by the guarantee. If a fault persists and it proves necessary to return the video camera to the after-sales service department, take care to send it in its original packaging. -
Page 14: Technical Characteristics
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 12.4 IF THE IMAGE IS EXTREMELY BRIGHT OR DARK • Check that the Brightness parameter is not set to the maximum or minimum setting. • Check that the Window used is neither too large nor too small (in manual mode). -
Page 15: Electromagnetic Compatibility
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 Specifications of the coupler • Sensor: 1 CCD 1/4” • Front plug for the aluminium C Mount • Airtight video camera head made from ABS • Dimensions: L: 80mm; Ø: 30 mm • Weight: 210g •... - Page 16 USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 14.2 MANUFACTURER'S DECLARATION AND GUIDE – ELECTROMAGNETIC IMMUNITY The “CCD mono video camera” reference equipment is intended for use in the electromagnetic environment specified below. The user will have to make sure that it is used in this environment.
- Page 17 USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 14.3 MANUFACTURER'S DECLARATION AND GUIDE – ELECTROMAGNETIC IMMUNITY The equipment reference “CCD mono video camera” is designed to be used in the electromagnetic environment specified below. The user should make sure that it is used in this environment.
- Page 18 USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 14.4 RECOMMENDED SEPARATION DISTANCES BETWEEN MOBILE AND PORTABLE RF COMMUNICATION EQUIPMENT AND THE “CCD MONO VIDEO CAMERA” REFERENCE EQUIPMENT The equipment reference “CCD mono video camera” is designed to be used in an electromagnetic environment in which the radiated RF The “CCD mono video camera”...
-
Page 19: Symbols
USER MANUAL 16-2017PAL / NTSC Rev. 01/2017 15. SYMBOLS PAGE 19 OF 19...
