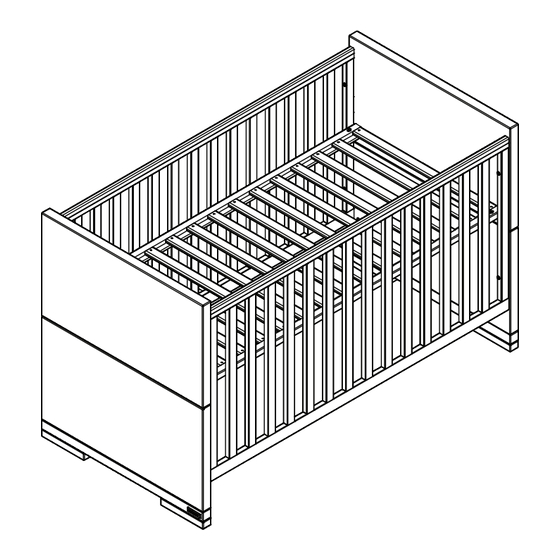

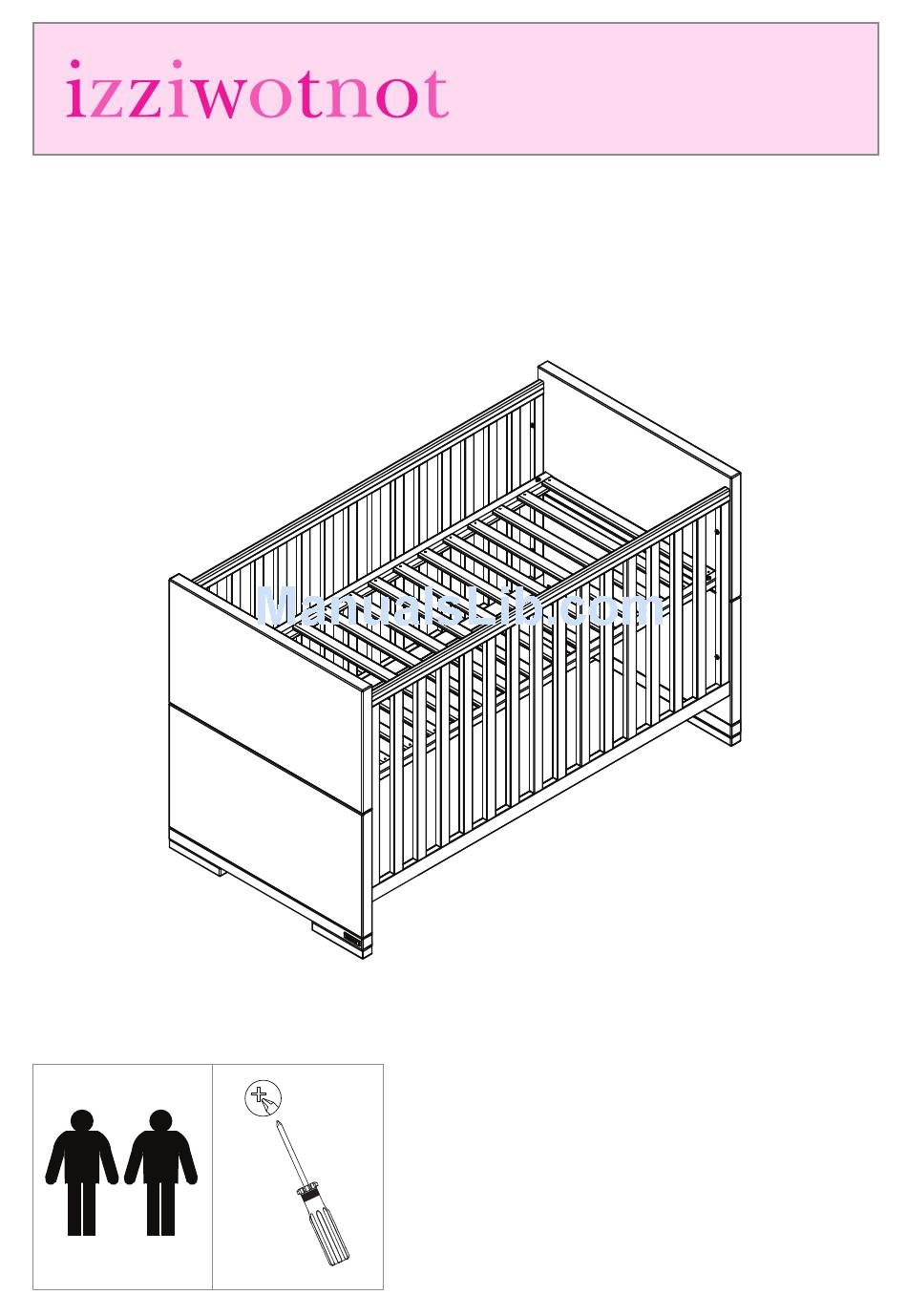

- Page 1 08 June 2010 (LAN01) FIXING INSTRUCTIONS Skyline / Cot bed IMPORTANT! RETAIN FOR FUTURE REFERENCE READ CAREFULLY...
-
Page 2: Important Notes
The recommended mattress size for this cot bed is 140 x 70 cm. The Skyline cot bed is designed to be used from birth to approximately 4 years. The base can be fixed in 3 positions. The lowest position being the safest (refer to safety notes). - Page 3 Parts checklist Item Name End (Top) End (Bottom) Side Rail Bed Base Bed aprons...
- Page 4 Assembly 1. Assembling the bed ends. (Take care not to scratch the product - Lay panels on carpeted surface). The base can be fixed in 3 positions, the lowest base position is the safest and is the only one you should use once your baby can sit unaided. These instructions show the base being fixed in the highest position.
- Page 5 Assembly 3. Attaching the base. 4. Securing the base with bolts. D X 4 NB : Fully tighten the 8 side rail bolts from step 2 after the base has been secured. Please keep all parts, fixings and that are not used in a safe place. You will need them to convert the cot into a cot bed.
- Page 6 Assembly 5. Changing cot into bed. 6. Detaching the cot ends. You will need to dismantle the cot in order to convert into toddler bed. Separate panel 1a from 1b. Then using the allen key provided, remove the 3 bolts from the underside of the cot end and detach panel 1b.
- Page 7 Assembly 7. Re-assemble bed ends, using bolts and dowels removed in step 6. 65mm 50mm 65mm 50mm 65mm 8. Attaching fittings to bed ends and aprons. G X 4 A X 8...
- Page 8 Assembly 9. Push in barrel nut Remove grub screw B x4 10. Attach aprons to bed ends.
- Page 9 Assembly 10. Attach aprons to bed ends. 11. Fix capping bolts and place bed base onto strips. H x4 Finished assembly...
-
Page 10: Care And Safety
Excessive chewing may damage the wood and cause splintering. If any part is damaged, stop using the cot bed until the correct replacement part has been obtained from Izziwotnot. Do not allow children to climb on the furniture. The safety of your child is your responsibility. -
Page 11: Customer Service
Daytime Telephone Number Email Product Purchased Purchased Date Price Where Purchased If you would like to receive further information regarding new products, promotions and special offers from IZZIWOTNOT please tick the box provided: Post Email www.izziwotnot.com|sales@izziwotnot.com GUARANTEE All our products are made using the highest quality materials and are manufactured to British Standards, some of the highest quality standards in the world.
