Summary of Contents for Ove Decors TUVA

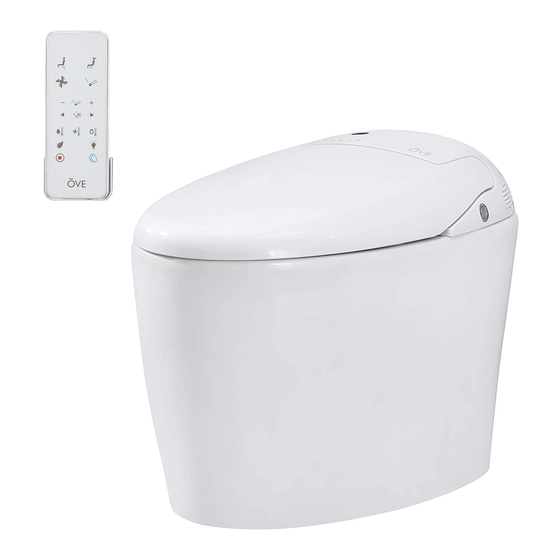

- Page 1 OVE INTELLIGENT TOILET Model TUVA INSTRUCTION MANUAL Thank you for choosing OVE INTELLIGENT TOILET. Please read and understand this entire manual before attempting to assemble, operate or install this product. p. 1...
-
Page 2: Table Of Contents
CONTENT SAFETY NOTICE ..................... p.3 WARNINGS ...................... p.4 PART LIST ......................p.5 INSTALLATION INSTRUCTIONS ..............p.6-8 FIRST TIME USE ....................p.9 CONTROLS DESCRIPTION ..............p.10-11 FEATURES ....................p.12 INTELLIGENT FEATURES ................p.13 CLEANING THE FILTER ................p.14 LONG TERM STORAGE ................p.15 BATTERY MAINTENANCE ................ -
Page 3: Safety Notice
SAFETY NOTICE ATTENTION! BEFORE INSTALLING THE PRODUCT, YOU MUST READ AND UNDERSTAND CAREFULLY ALL BELOW WARNINGS. 1. It is forbidden to disassemble toilet by yourself. 2. Please do not set this product in a wet place, because it is an electronic product. If set in the bathroom, please insure that there is proper air flow. -
Page 4: Warnings
WARNINGS Do not leave the To prevent against power toilet exposed to the sun. surge damages, make May cause yellowing or sure the ground is working color fading. in the power socket. Direct sunlight affects the good functioning of the remote. -
Page 5: Part List
PART LIST Clockwise - Higher flow Anti-cloclwise - Lower flow Item Light Indicator Panel 99TOI0115OU Water Inlet Side Control Panel 99TOI0117OU Water Supply Hose 99TOI0118OU Water Filter 99TOI0138-OU Inlet Fitting & Valve 99TOI0120OU Seat 99TOI0121OU Remote Receiver Battery Enclosure 99TOI0123OU Manual Flush Button 99TOI0124OU Nozzle... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Remove the seat from the ceramic base. Simply pull the seat up gently. Be careful, there are wires that need to be disconnected before you can remove the seat completely Unplug the electrical cord and the water tube before completely pulling away the (see step #2). - Page 7 INSTALLATION INSTRUCTIONS Position the toilet on the floor drain, making sure the fixing bolts are Insert the ring gasket under the toilet. aligned with the toilet’s holes. Using a ratchet, tightly screw the nut to the fixing bolts. Reconnect the electrical cord. Make sure both ends are well aligned. Reconnect the water tube: 1) Gently, but firmly push the tube inside the hole.
- Page 8 INSTALLATION INSTRUCTIONS Connect the water inlet fitting to the water supply. Then connect the valve. Finally connect the flow regulator to the valve. Connect the flow regulator outlet to the toilet’s water inlet with the supplied flex-tube. Apply silicone around the base of the toilet. Wait for 24h for it to dry.
-
Page 9: First Time Use
FIRST TIME USE Open the water supply inlet valve. Plug the toilet in the power socket. The toilet’s blue light will start blinking. The blinking light indicates that the wash tank is filling with water, a sensor in the toilet will stop the filling process automatically after around 3 minutes when the tank is full of water. -
Page 10: Controls Description
CONTROLS DESCRIPTION SIDE CONTROL PANEL POWER/ECO: Press 1 time, it will turn the toilet ON. Press 2 times, it will activate the ECO MODE. Press 3 times, it will turn the toilet OFF. STOP: Pressing this button will stop any ongoing function. BIDET/MOVE: Pressing this button will initiate the Static Bidet Cleaning function. - Page 11 CONTROLS DESCRIPTION WATER TEMP: Pressing this button will cycle through the 4 possible temperatures settings for the Spray/Bidet cleaning water jets. 4 settings: Room temp / 34C (93F) / 37C (99F) / 40C (104F) AIR TEMP: Pressing this button will cycle through the 4 possible temperatures settings for the air drying function. 4 settings: Room temp / 35C (95F) / 45C (113F) / 55C (151F) SEAT TEMP: Pressing this button will cycle through the 4 possible temperatures settings for the seat heating.
-
Page 12: Features
FEATURES SPRAY CLEANING (1 WATER JET) This function will only work if the user is sitting on the toilet. Press the SPRAY/MOVE button for spray cleaning. Water will spray and clean the user. Press the button again and the nozzle will move back & forth to insure the cleanest result. You can use this key stoke to get the best cleaning effect. -
Page 13: Intelligent Features
INTELLIGENT FEATURES ECO MODE ECO MODE will cut down the electricity usage of your intelligent toilet during times of none-usage. The cleaning water tank will start heating the water only once the user is sitting on the toilet, whereas in normal mode, the cleaning water is kept to your preferences for your instant enjoyment. -
Page 14: Cleaning The Filter
CLEANING THE FILTER Close the inlet valve, turn clockwise. Disconnect felx-tube turning Do not take out the filter before closing the counterclockwise and take out the filter. inlet valve. Clean the filter. Install the filter back into the flex-tube. Use a tooth brush to clean the dirt on the Screw the flex-tube back onto the regulator. -
Page 15: Long Term Storage
LONG TERM STORAGE In order to prevent from any damages that may be caused from frozen toilet water, please drain away the remaining water according to the following methods. When leaving for a long time without using this toilet, please make sure to drain all the water from the toilet. -
Page 16: Specification Sheet
SPECIFICATION SHEET Item Content AC 120V / 1300W / 60HZ Electric Load Electric Cord 1.2 m insulated power cord Remote control batteries 2x 1.5V batteries 520x690x410 mm (HxDxL) Product’s size 650x760x490 mm (HxDxL) Outer carton’s size Cleaning System Spray Cleaning (1 jet) Water amount adjustment 0.4-1.0 L/min (water pressure 0.19 MPa / 27.6 psi) Water amount adjustment 0.5-1.0 L/min (water pressure 0.19 MPa / 27.6 psi) Bidet Cleaning (5 jets) -
Page 17: Maintenance & Consumer Responsibilities
MAINTENANCE & CONSUMER RESPONSIBILITIES ■ The DISTRIBUTOR does prohibits the use of harsh abrasive cleansers on any of its products. Harsh cleansers will damage the inner workings of the toilets. ■ For daily maintenance, use a wet cloth and a soft liquid cleaner. ■... -
Page 18: Installation Picture
INSTALLATION PICTURE p. 18... - Page 19 Save this manual for future reference Conservez ce manuel pour usage ultérieur Conserve este manual para futura referencia HEAD OFFICE / SIÈGE SOCIAL / OFICINA PRINCIPAL 2800 Etienne Lenoir, Laval Quebec H7R 0A3 Canada Customer service / Service à la clientèle / Service al cliente Tel.: 1-866-839-2888 Fax: 1-866-922-9990 customerservice@ovedecors.com...
