Summary of Contents for REJUVASUN 34

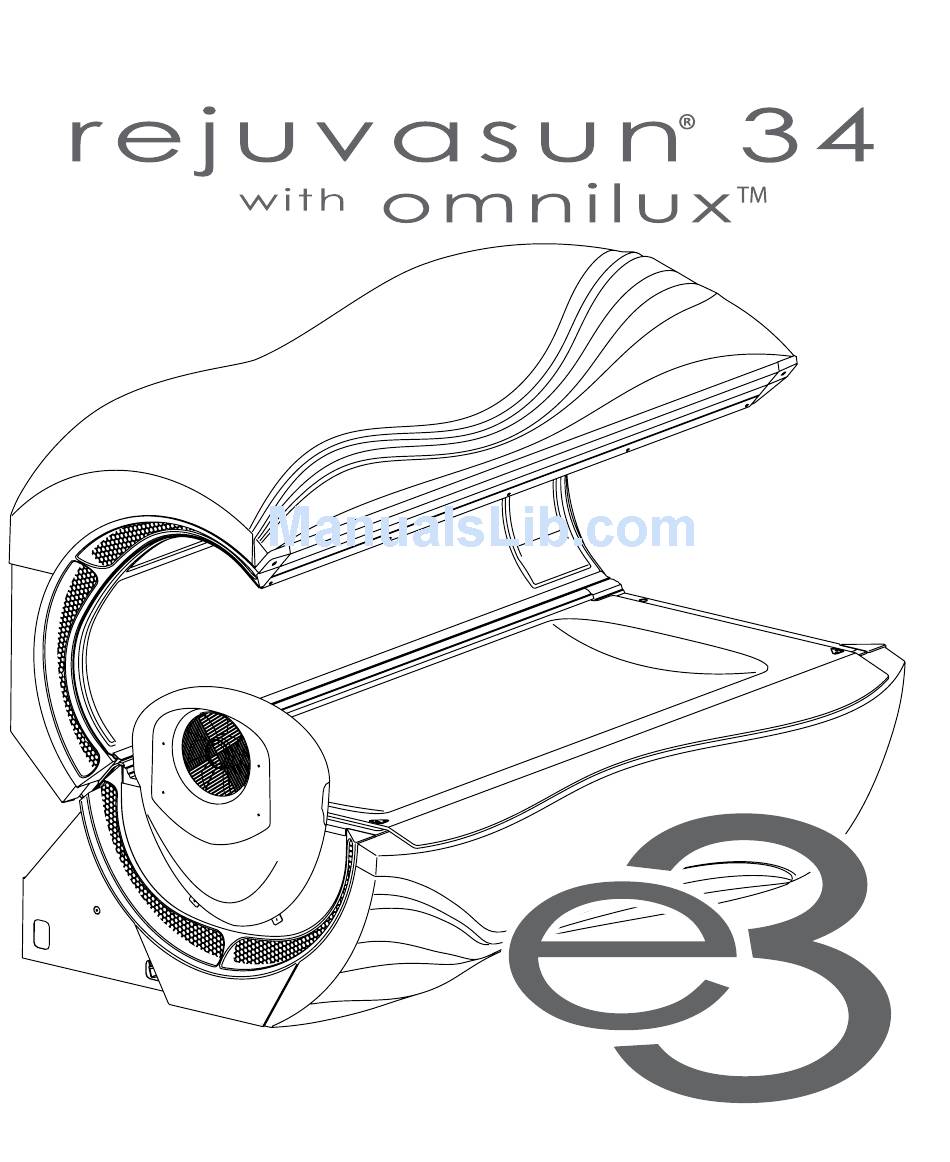

Page 1 u s e r m a n u a l 4930660-02...
Page 2: Limited Warranty
EQUITY FOR ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PUR- CHASE PRICE RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR SUBSTITUTE PRODUCTS, LOSS OF 2 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 3: Table Of Contents
Opening / Replacing Acrylics ....42 Removing/Replacing Fluorescent Lamps 42 Replacement Lamps ......42 Removing/Replacing Face Tanner Lamp . 43 Troubleshooting ........44 Updating Timer Software ......46 Parameters ..........46 Rejuvasun 34 with Omnilux Assembly and User Manual - 3...
Page 4 THIS EQUIPMENT MUST BE EARTH GROUNDED. This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224. 4 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 5 Cet équipement doit être mis à la terre. Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie 1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224. Rejuvasun 34 with Omnilux Assembly and User Manual - 5...
Page 6: Unpacking And Inspection
A poorly ventilated room may cause the unit to become hot and cause dis- comfort to the user. 6 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 7: Disassembly
Remember to save all hardware removed. It will all be used during reassembly. Shipping Pin Rejuvasun 34 with Omnilux Assembly and User Manual - 7...
Page 8 Loosen these screws and the front channel will swing down. The screws will remain in the channel. Swing the channel down farther to release the acrylic and lower the acrylic to clear the handle. 8 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 9 As the skirt is removed you will find a cable attached. This powers the Mood Mode ac- cent lighting. Disconnect this cable and set the skirt aside. Rejuvasun 34 with Omnilux Assembly and User Manual - 9...
Page 10 Do not pull on the wires. A few of the connectors have a wire tie around them. This wire tie is removable and does not need to be cut. 10 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 11 The body fan is held in place with (2) #10- 24x1/2” screws at the bottom. Remove these screws, then lift the body fan assembly straight up and off the bed. Be careful of the power cable. Rejuvasun 34 with Omnilux Assembly and User Manual - 11...
Page 12 The bench endcaps are held in place by (4) #10-24x1” screws each. The acrylic end supports are held in place by (5) #10-24x1” flat head screws each. Remove both pieces from each end and set aside. 12 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 13 The front cross member is held in place with (4) 5/16-18x1” hex socket bolts. Rejuvasun 34 with Omnilux Assembly and User Manual - 13...
Page 14 Slowly lift the lamp box out of the bench, being careful not to damage the plenum. Three #10x1/2” screws hold the floor pro- tector panel. Remove it and set aside. PLENUM 14 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 15 Remove these screws. Carefully lift the cov- er from the bed. The rear corner covers are attached with (6) #10x1/2” screws each. Simply loosen these screws and the covers will slip off. Rejuvasun 34 with Omnilux Assembly and User Manual - 15...
Page 16 The canopy endcaps are attached with (4) #10-24x1” Phillips screws each. Remove both endcaps. 16 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 17 Make sure something or someone is holding the front of the canopy so it does not fall. Remove the canopy. Rejuvasun 34 with Omnilux Assembly and User Manual - 17...
Page 18 (8) #10x1/2” sheet metal screws. Remove the screws and slip the cross member out of the cradles. REAR ANGLE PANEL REAR CROSS MEMBER 18 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 19 The back panel attaches to the pedestals with (8) #10x1/2” screws. Remove the screws and lift the panel from the pedestals. BACK PANEL SCREWS Rejuvasun 34 with Omnilux Assembly and User Manual - 19...
Page 20: Assembly
Assembly Place the pedestals in the salon room ap- proximately where the bed will be. 20 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 21 Phillips sheet metal screws on each end. The rear angle cover attaches between the rear panel and rear cross member with (16) #10x1/2” screws along the angled flanges. ANGLE COVER REAR CROSS MEMBER REAR PANEL Rejuvasun 34 with Omnilux Assembly and User Manual - 21...
Page 22 Slide the canopy frame in place in the ped- estal cradles, as shown, and fasten with (5) 3/8-20x1” hex bolts on each cradle. 22 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 23 Attach the canopy endcaps with (4) #10- 24x1” Phillips screws in each. Rejuvasun 34 with Omnilux Assembly and User Manual - 23...
Page 24 As with the access panel screws, if you re- tightened the screws for the rear corner cov- ers, loosen them now. Slip the rear corner covers into place and tighten the screws to secure them. 24 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 25 (3) #10x1/2” screws. Slide the bench lamp box into place. Be careful of the fan plenum on the underside of the lamp box. Rejuvasun 34 with Omnilux Assembly and User Manual - 25...
Page 26 Install the front cross member using (2) 5/16- 18x1” hex socket bolts in each end. 26 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 27 Install the bench endcaps with (4) #10-24x1” Phillips screws each. Install the bench acrylic supports with (5) #10-24x1” flat head screws each. Rejuvasun 34 with Omnilux Assembly and User Manual - 27...
Page 28 Install the body fan. First, slip the power cable through the hole in the left pedestal. Then engage the hanging clips and finally, secure with (2) #10-24x1/2” screws in the bottom mounting flanges. 28 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 29 Red, Green, Blue, Yellow Terminal block on skirt frame Remote White From timer box to remote board on back panel Mp3 jack Black Cord across front of lamp box to head pedestal Rejuvasun 34 with Omnilux Assembly and User Manual - 29...
Page 30 Slip the “hooks” at the bottom corners of the skirt over the pegs on the pedestals and swing the skirt up. Secure with the 4 flat head screws across the top. 30 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 31 Plug the wiring harness from the exciters to the harness in the bed. Swing the acrylic closed and lock the front edge by swinging the front channel closed and secure the 5 screws. Rejuvasun 34 with Omnilux Assembly and User Manual - 31...
Page 32: Electrical Connections
NOTE: Not shown in the diagram above are three thin wires, a red, black and blue one. Do not move these thin wires. Only move the thick- er blue wires with colored stripes. 32 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 33: Audio
“MUSIC” button on the keypad re- For more musical options, including DMX peatedly. The display will show which music control, FM tuner and voice assist, contact source is playing. an ETS representative for upgrade options. Rejuvasun 34 with Omnilux Assembly and User Manual - 33...
Page 34: Remote Connections
5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty. 34 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 35 The rest of the salon may be “daisy- chained” together and connected to the wireless equipped tanning bed, eliminating the need to wire the Manager to the tanning beds. Rejuvasun 34 with Omnilux Assembly and User Manual - 35...
Page 36 T-Max® user’s guide, directly into either of the smaller ports located on the back of the bed and either port on the back of the T-Max® 3W. 36 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 37 5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty. Rejuvasun 34 with Omnilux Assembly and User Manual - 37...
Page 38: Operation
I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING II Light (Burns easily and severely and tans minimally.) III Normal (Burns moderately and tans average.) IV Dark (Burns minimally, tans easily and above average.) 38 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 39: The Keypad
There may be a delay when turning face tan- ners back on during a session. G REJUV - Press to enter Rejuvasun control mode. Use ‘+’ and/or ‘-’ to scroll through the Rejuvasun modes, Red, Infrared and off.
Page 40: The Tanning Session
“DRTY” as a reminder to clean 6. After cool-down the timer display re- the sunbed. After the sunbed is cleaned turns to “0”. press the START/TIME button and the display will return to “0”. 40 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 41: Care And Maintenance
• Inspect the AC power cord and its con- nections. • Inspect the acrylic. Broken, cracked or badly scratched acrylics should be im- mediately replaced. Rejuvasun 34 with Omnilux Assembly and User Manual - 41...
Page 42: Opening / Replacing Acrylics
ETS ELITE Select Model F71-T12-100W BP Heraeus OH C 400 EF WARNING (facial unit) Shock hazard. Disconnect power before removing any protective covers. 42 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 43: Removing/Replacing Face Tanner Lamp
Finger oils will greatly reduce the lamp’s operational life. 3. Slide the face tanner glass into the bracket attached to the bed and lock it in place with the other bracket and two screws. Rejuvasun 34 with Omnilux Assembly and User Manual - 43...
Page 44: Troubleshooting
1. T-Max® Manager remote system has not yet been set. show a 0 after the timer but- 2. Sunbed address is not set correctly, see Remote Connec- ton is pressed tions. 44 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 45 “0” to “1” will allow the tanning bed to remember clients complain about los- how much time was left when power goes out and resume ing session time its session after power is restored. See Parameters. Rejuvasun 34 with Omnilux Assembly and User Manual - 45...
Page 46: Updating Timer Software
In the event you receive an email contain- ing an update file, the email will contain full instructions on this procedure as well as the verification process to make sure the update was successful. 46 - Rejuvasun 34 with Omnilux Assembly and User Manual...
Page 47 P 84 FM Preset 4 (example - set to 923 for radio station FM 92.3) P 85 FM Preset 5 (example - set to 923 for radio station FM 92.3) Rejuvasun 34 with Omnilux Assembly and User Manual - 47...
Page 48 Weight (approximate) ....821lbs (373kg) Main Lamps ........34 x 100W Room Size ......9’ (2.7m) x 8’ (2.4m) Face Tanner Lamps ......2 x 400W Voltage ..........230 VAC Rejuvasun Panel ....1 x Omnilux Panel Amperage ..........1P - 18A Body Cooling ......1100cfm Foot Fan ............3P - 11A...
