Ioline 300 System Quick Start Manual

CORPORA CORPORATION CORPORA CORPORA CORPORA
Contents
• Unpack the Cutter
• Cutter Connections
• Computer Connections
• Install Ioline Software
• Install an Adhesive Sheet
• Apply Cloth and Install the Tray
• Choose a Blade
C
B
A
A. Tray (removable)
B. Table (non-removable)
C. Adhesive Sheet, Mounted
D. Keypad
E. Carriage
F. Serial Port
G. Power Connector
H. Power Switch
J. Most Cuts Start Here (Origin)
K. Thumb Nuts (2)
L. Leg (2)
TION TION TION TION
K
IOLINE CORPORATION
14140 N.E. 200th Street, Woodinville, WA 98072, USA
Voice: 1.425.398.8282 • Fax: 1.425.398.8383
info@ioline.com • www.ioline.com
Part Number: PRINT:107077r5 • FILE:107070r3

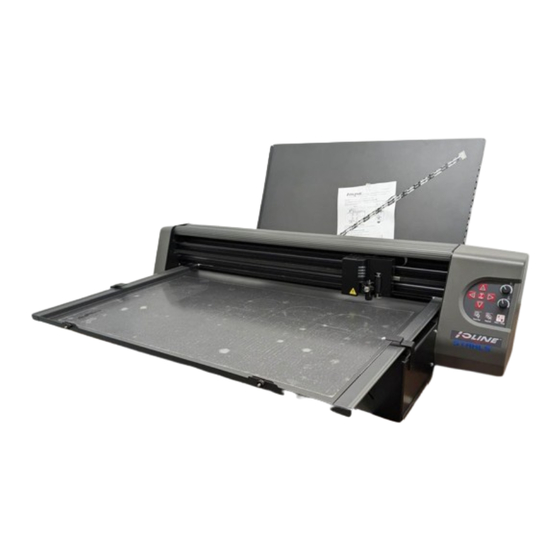

300 System
Quick Start Guide
This quick start guide has instructions for
setting up and using the Ioline 300 Sys-
tem. Please consult the 300 System User
Guide and the 301 Software User Guide
for more information about getting the
most out of your Ioline product.
H
G
E
D
J
L
F
