  • Page 1 D614 HD Capture Dual User Manual...

  • Page 2: Important Safety Instruction

    1. Do not attempt to open the case of D614 Capture Dual or modify it in any way, as this will void the warranty. Keep D614 HD Capture Dual away from water and other liquids, as this may cause the unit to malfunction.

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instruction ..............………… Table of Contents ....................2 What’s included ....................3 Product Connectors ....................4 Connection Instruction and installtion ..............5 Standalone Mode 1. Installation ....................5 2. Record / Capture to USB or TF Card ............

  • Page 4: What's Included

    What's included...

  • Page 5: Product Connectors

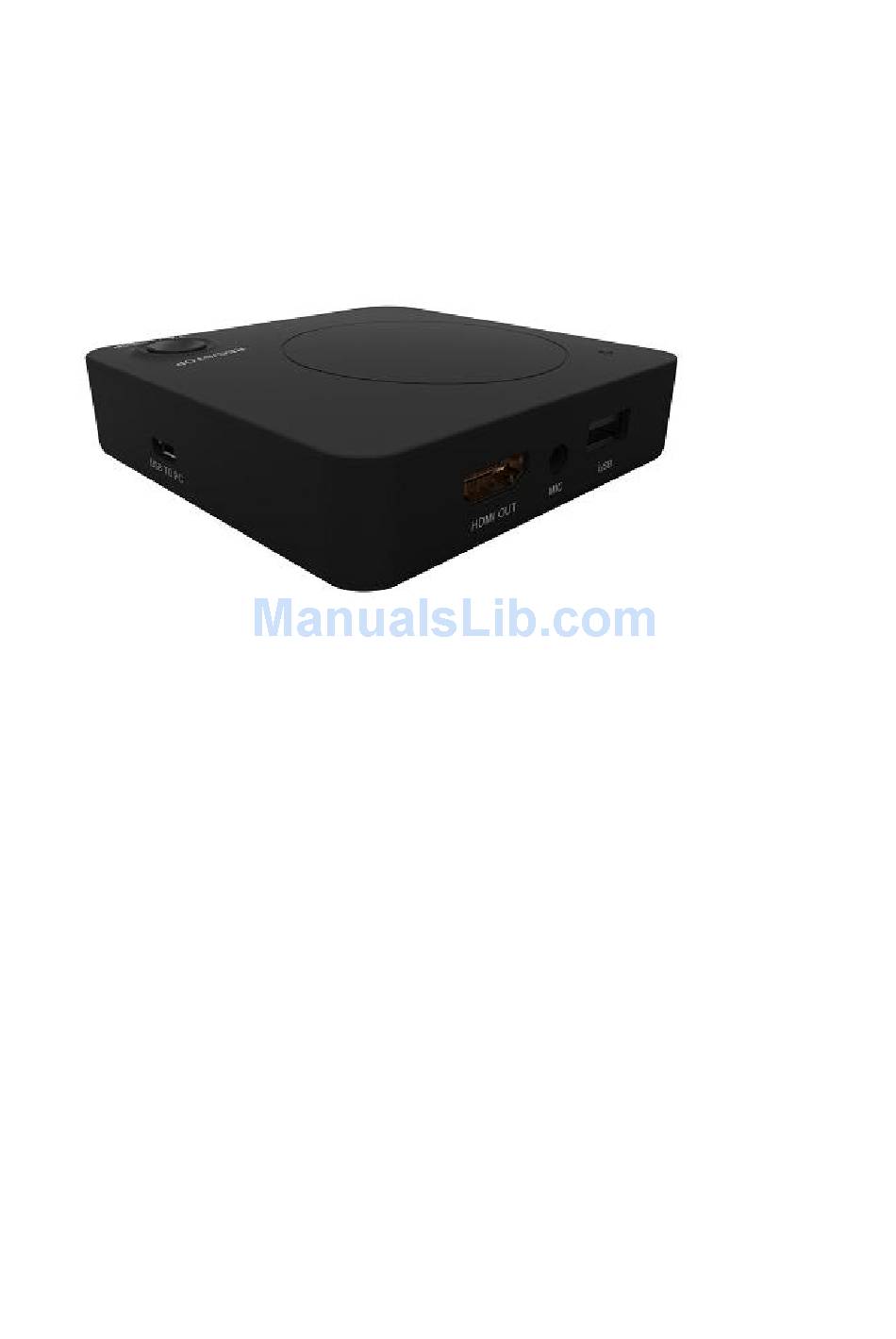

    Product Connectors...

  • Page 6: Connection Instruction And Installtion

    Connection instruction and installations (Standalone Mode) 1. Installation (1) Make sure the PS3/4 video/audio output are setup correctly before you begin. (2) Connect PS3/PS4 (output) to HD Grabber Dual (input) via HDMI cable. (3) Connect HD Grabber Dual to TV via HDMI cable. (4) Make sure gameplay is visible on TV screen.

  • Page 7: Record / Capture To Usb Or Tf Card

    When HDD or USB storage is full, D614 stops recording and LED will go off. D614 saves files in MPEG4 format. The resolution can be set at either 720p or 1080p for capture. Please note that not all games/video files are produced at 1080p.

  • Page 8: Pc Mode

    PC Mode 1. Software Installation & Connection <1> Install GXPlayer on PC Download the software GXPlayer from http://www.tevii.com/Support.asp or get it from the installation CD. Make sure you install the plugin for 3rd party streaming software (OBS, OBS studio, XSplit).

  • Page 9: Pc Software(Gxplayer) Registration & Key Features

    2. PC Software(GXPlayer) registration & Key features Please register GXPlayer online before using it or you can only record up to 10 minutes. Run GXPlayer. Click on screen upright corner to open the "About" window. Then click on the "Register" button to open the "Register" window. Fill in your Email address, Name and Code (The Code can be found on the CD cover as below) Then click on "OK"...
  • Page 10 The software CD comes with famous video editing software Power Director licensed from Cyberlink. You can find the CD key on the back of CD cover...

  • Page 11: Upload Video To Youtube

    Upload Video to YouTube  1. GXPlayer Open below folder marked in red 2. Click below mark in red to stream recorded video to YouTube...
  • Page 12 3. Input google ID & Password 4. Edit the name & description of video which you paln to stream  Upload...
  • Page 13 5. Uploading completed  OK 6. Open YouTube  My channel  You can find the video file you just uploaded...

  • Page 14: Live Streaming Via Xsplit

    Live Streaming via XSplit 1. Download & open XSplit on your PC  add  webcam, capture card, video devices GXPlayer Box 2. Outputs --> set up a new output --> (for example) Twitch 3. Enter ID, Password to Log In (please apply a new account for Twitch beforehand)
  • Page 16 4. After set up completed，Click Outputs  Twitch- tevii123 to start streaming...

  • Page 17: Live Streaming Via Obs

    Live Streaming via OBS Download & install the latest version of OBS and open it  Select “Settings” Select “Stream “ “Service” (website) Streamer Key OK...
  • Page 18 How to find your Stream Key (taking Twitch as example) Open TwitchSelect Dashboard (A)Setings (B)Show Key (C) Sources  Add video capture device  Device option, select GXPlayer Box...
  • Page 19 Audio Output Mode  Output desktop audio (DirectSound)  OK Press “Start Streaming”...

  • Page 20: Record/Capture To Pc

    Record/Capture to PC 1. After all devices are connected properly, run GXPlayer on your PC. 2. Click on to start recording; click again to stop recording. You can also click on to capture a screenshot...

  • Page 21: Schedule Recording & Set Up

    3. Click on to view the recorded video files. You can click on to play back selected recorded video. Schedule Recording & Set up...
  • Page 22 Video Resolution: Set the recording resolution. 1080p, 720p and 480p are available. Video Bitrate: 6Mbps, 8Mbps, 10Mbps, 12Mbps, 15Mbps and 18Mbps are available. Video Render: Define the video render. Video Mix Render9 and Internal YUV Render are available. Hotkey for Recording: Set the hotkey for starting and stopping recording videos. MP4 Format: You are free to select MP4 Format as below: MP4(H264, AAC), MP4(H264, AC3), MP4(H264, MP3), MPEGTS(H264, AAC) Language: Set the language to be displayed on the screen.

  • Page 23: New Firmware Upgrade Instruction

    1. Please unzip the firmware file 2. Save Jedi.img on USB Flash Drive 3. Connect USB Flash Drive to D614 with power off 4. Turn power on to start the firmware upgrade procedure. Now the blue-green light will flash slowly, please DO NOT unplug USB Flash Drive.

  • Page 24: Product Specifications

    Product Specifications Capture format mp4 (H.264) File recording format support FAT32, NTFS Input signals HDMI Output signal HDMI (pass-through) USB Port USB2.0 Bit rate Maximum 16Mbps (Default 10Mbps) Recording capacity 2GB maximum per file Maximum storage capacity 2TB for USB HDD Power supply DV 5V/2A Weight...

  • Page 25: Contact

    CONTACT • If you encounter problems about using and upgrading hardware and software, please contact our support team: sales@tevii.com Please download the software GXPlayer http://www.tevii.com/Support.asp...
