Prodipe IEM7120 User Manual

Uhf personal in-ear monitor wireless system
Hide thumbs
Table of Contents

Advertisement

Quick Links

UHF Personal Monitor
Wireless System
Prodipe IEM7120
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IEM7120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prodipe IEM7120

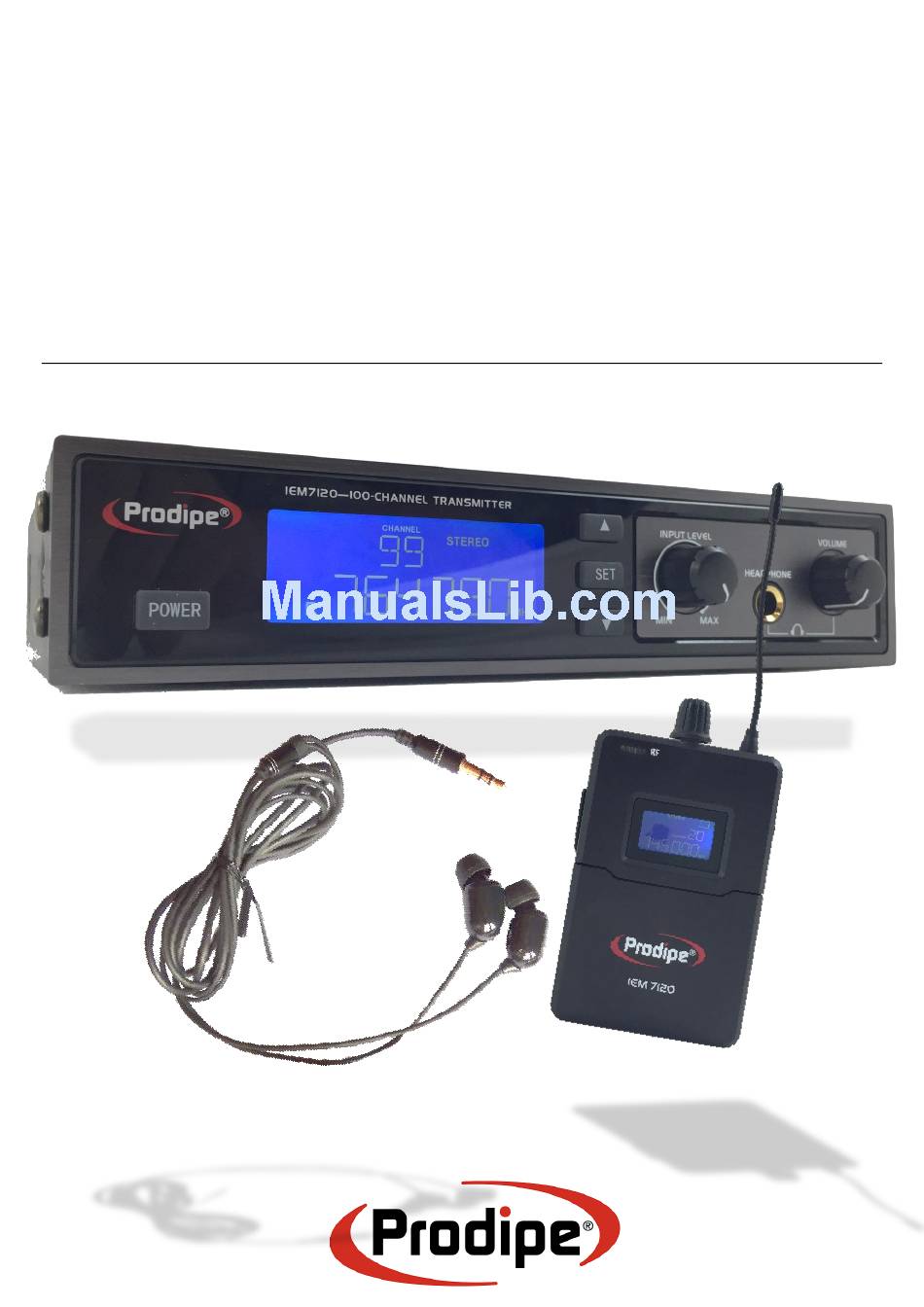

  • Page 1 UHF Personal Monitor Wireless System Prodipe IEM7120 User Manual...

  • Page 2: Safety Information

    Safety Information Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”...

  • Page 3: Table Of Contents

    We would like to thank you for buying this product. To gain maximum satisfaction from your Prodipe IEM7120 Personal Monitor Wireless System, please read the instructions in this manual carefully. It is important that you keep the manual in a safe place. Before leaving the factory, every product is meticulously checked by our extremely thorough quality control team.

  • Page 4: Features Of The Iem7120

    Features of the IEM7120 Transmitter Mains Adaptor BNC Antenna Bodypack IEM3 earphones User Manual Adaptable rack ears for 19" rackmount (1 unit) Actual product(s) may differ from illustrations/photographs used Copyright © 2015 IPE Music...

  • Page 5: Functions Of The Iem7120 Transmitter

    Functions of the IEM7120 transmitter Front Panel 1. On/off switch (POWER) 2. LCD screen with information display (channels, etc.) 3. Menu/Set button (up "▲", down "▼") 4. Input level knob (see also rear panel input attenuator pad) 5. Headphone jack (6.35mm) for earphones 6.

  • Page 6: Functions Of The Bodypack Receiver

    Functions of the bodypack receiver: 1. Fixed antenna 2. On/off switch/volume knob for the earphones 3. Output Jack (3.5mm) for Prodipe IEM3 earphones 4. Battery indicator light (flashes red when battery power low) 5. Visual indicator for UHF signal (RF) 6.

  • Page 7: Iem3 Earphones

    To attach the bodypack to your belt or item of clothing, turn the receiver round and use the belt clip at the back. For guitars or other instruments that have a strap, you can also attach the receiver to this strap. The expected life for two standard alkaline batteries is approximately five hours at a mid level volume.

  • Page 8: Programming The Transmitter

    Programming the transmitter Switching on the IEM7120 transmitter: Hold the POWER button down for 3 seconds until your transmitter comes on. Do the same to switch off. Selecting the group and channel for your system: Press the "SET" button (system setup) and the "Group" indicator will flash on the screen.

  • Page 9: Programming The Bodypack Receiver

    Locking the menu: Hold down the "SET" button (system setup) until the "Lock Select" indicator comes on. Press on the "▲" or "▼" button to select the "LOCKON" function or "LOCOFF" function. Programming the bodypack receiver Switching on the bodypack: Switch your bodypack receiver on by turning the volume knob clockwise.
  • Page 10 Locking the menu: Hold down the "SET" button (system setup) until the "Lock Select" indicator comes on. Press on the "▲" or "▼" button to select the "LOCKON" function or "LOCOFF" function. "L" and "R" balance in stereo/mono: At any given moment you can use the "▲" and "▼" buttons to find the right balance between "L"...

  • Page 11: Audio Connections

    Connect the audio source (mixing desk, front mix, etc.) to the XLR/Jack inputs on the IEM7120 transmitter. An attenuation level of -12dB has been set (at the rear of the device) to reduce the considerable input level from certain decks. Next adjust the level using the "INPUT LEVEL"...

  • Page 12: Specifications

    Cable length: about 1.2 m  Connector type: 3.5mm (stereo)  Supplied with two pairs of rubber earbuds (large size and small size) IEM7120 (transmitter and bodypack receiver):  Frequency stability: ± 0.005% PLL  UHF frequency range: 700 to 770MHz ...

  • Page 13: Precautions And Guarantee Conditions

    We recommend that you keep the volume at a reasonable level. Prodipe and its distributors decline all responsibility for any damage caused to the unit in the event that the above precautions are not followed.

  • Page 14: Declaration Of Conformity

    Declaration of conformity Actual product(s) may differ from illustrations/photographs used Copyright © 2015 IPE Music -14-...

  • Page 15: Notes

    Notes Actual product(s) may differ from illustrations/photographs used Copyright © 2015 IPE Music -15-...
  • Page 16 IPE Music 20, rue Clément ADER Z.A. Les Gloriets 85340 OLONNE SUR MER France www.prodipe.com 1622 Actual product(s) may differ from illustrations/photographs used Copyright © 2015 IPE Music -16-...
