Summary of Contents for visual engineering StreetView

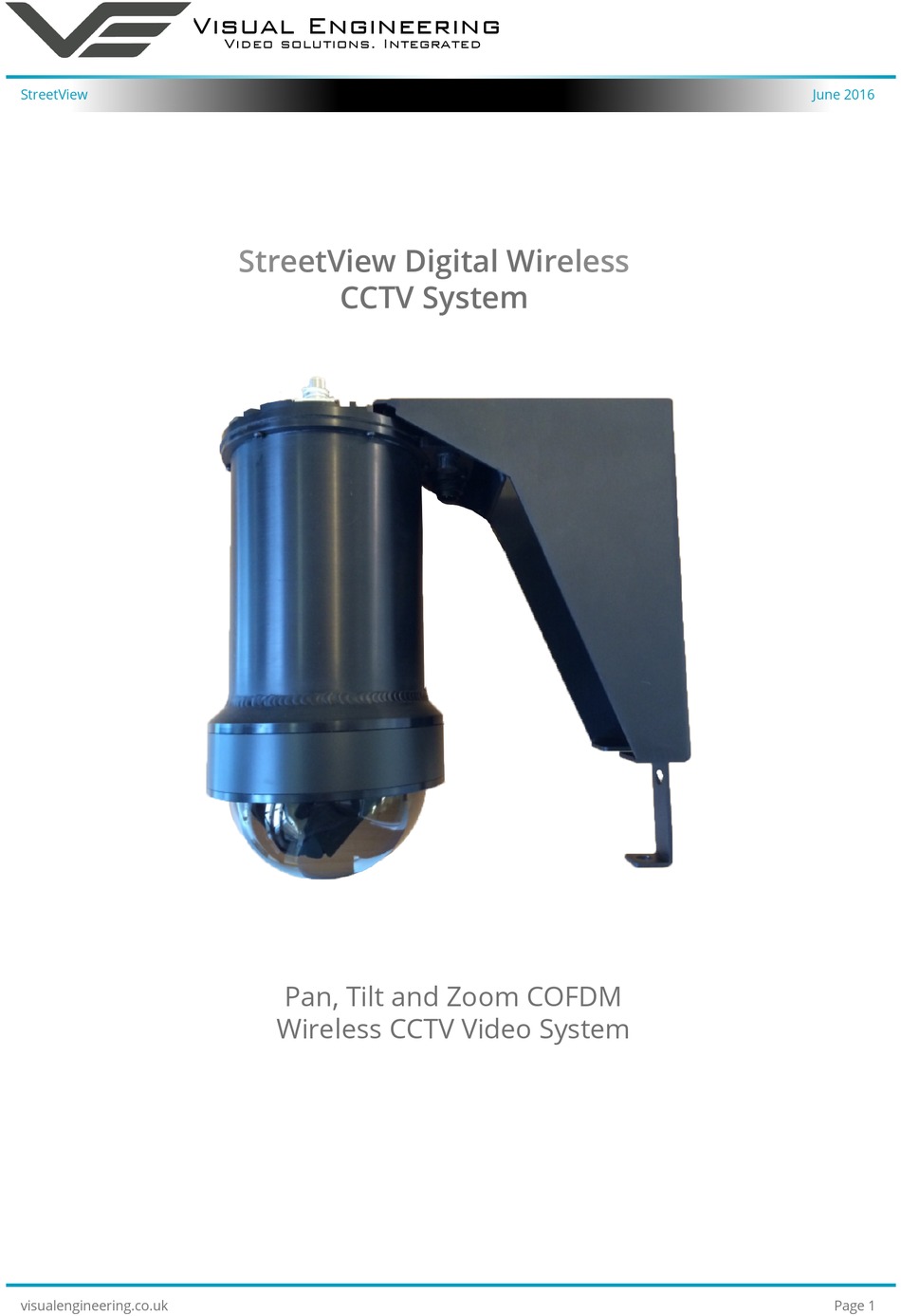

- Page 1 Visual Engineering Video solutions. Integrated StreetView June 2016 StreetView Digital Wireless CCTV System Pan, Tilt and Zoom COFDM Wireless CCTV Video System visualengineering.co.uk Page 1...
-
Page 2: Table Of Contents
Introduction to the StreetView System ........ -
Page 3: Change History
Visual Engineering Video solutions. Integrated StreetView June 2016 Change History Version Date Change Summary Author v1.0 6/6/2016 Initial Draft v1.1 10/6/2016 Software Control Additions visualengineering.co.uk Page 3... -
Page 4: About The User Manual
The VE part number for this manual is 110-xxxx Warranty and Support All Visual Engineering products are supplied as standard with a 12 month ‘Return to Base’ warranty. In the event of a suspected product failure, users should contact the Visual Engineering support team on the telephone number +44 (0) 1206 211842 or please email us at: support@visualengineering.co.uk... -
Page 5: Introduction To The Streetview System
StreetView cameras are supplied with a bracket suitable for wall or pole mounting. The camera is powered from an AC mains supply. At the receive end is a COFDM video receiver, this is a stand alone IP66 rated rugged unit which receives video via two diversity antennas, its RF connectors allow the antennas to be detached during storage. -
Page 6: The Streetview Kit
StreetView June 2016 The StreetView Kit Kit Contents The StreetView kit comes in a foam lined flight case. The following is a complete list of the kit together with their part numbers: • PTZ camera with video transmitter & telemetry 10245 •... -
Page 7: Key Components
June 2016 Key Components The key components of the StreetView kit are identified below. In addition to the principle components of the PTZ camera video transmitter and the video receiver there are three COFDM antennas, these are interchangeable between the PTZ camera and the COFDM video receiver. -
Page 8: Connecting The Antennas
Visual Engineering Video solutions. Integrated StreetView June 2016 Connecting the Antennas Both the PTZ camera and the COFDM video receiver need to have their antennas fitted to the appropriate connectors. PTZ Camera Antenna Connections The PTZ camera requires the white... -
Page 9: Ptz Camera Connections
Visual Engineering Video solutions. Integrated StreetView June 2016 PTZ Camera Connections In-line Power Connector It is necessary to connect power into the PTZ camera. These contacts have been left as bare ended wires to connect the camera directly to an AC power supply. -
Page 10: Cofdm Video Receiver Connections
Visual Engineering Video solutions. Integrated StreetView June 2016 COFDM Video Receiver Connections In addition to the antenna connections there are two connectors on the rear of the video receiver. One of these is a BNC connector for the CVBS video signal out, this should be connected to a video monitor. -
Page 11: Software Control
PC. The image here shows what the software application looks like. To connect the software to the StreetView PTZ camera first connect the Camera Control Cable, part number 110-8899, to the 8 pin binder connection on the camera. -
Page 12: Video Transmission Control Software
In the example below the pan right command has been selected. This will cause the StreetView PTZ camera to pan right. Similar commands for pan left, tilt up & down and zoom functions can also be tried out using the intuitive software user interface. -
Page 13: Telemetry Control
Visual Engineering Video solutions. Integrated StreetView June 2016 Telemetry Control It is possible to re-configure the telemetry channel at both at the PTZ camera end and at the video receiver end. With the unit powered off, follow these steps: •... - Page 14 Visual Engineering Video solutions. Integrated StreetView June 2016 Option 1.2 Baud Rate Select this to change the baud rate of the telemetry channel. 1200 2400 4800 9600 19200 38400 57600 115200 Main Menu Exit Option 1.3 Protocol Select this to change the protocol of the telemetry channel.
-
Page 15: Camera Re-Configuration
Visual Engineering Video solutions. Integrated StreetView June 2016 Camera Re-configuration It is possible to re-configure certain parameters of the PTZ camera. Warning! - Normally, most of the these settings should never need to be altered by the user. With the camera powered off, follow these steps: •... - Page 16 Visual Engineering Video solutions. Integrated StreetView June 2016 Option 1.2 Baud Rate Select this to change the baud rate of the PTZ camera. 1200 2400 4800 9600 19200 38400 57600 115200 Main Menu Exit Option 1.3 Protocol Select this to change the communications protocol of the PTZ camera.
- Page 17 Visual Engineering Video solutions. Integrated StreetView June 2016 Option 2.3 Motor Speed Select this to alter the speed of the PTZ camera’s motors. High Medium Main Menu Exit Option 2.4 Hold Torque Select this to alter the hold torque of the PTZ camera’s motors.
-
Page 18: Specifications
Visual Engineering Video solutions. Integrated StreetView June 2016 Specifications Specifications L-Band: 1 to 1.5GHz Frequency Camera Pan Continuous S-Band: 2 to 2.5GHz Demodulation COFDM, QPSK or 16QAM Camera Tilt +10 to -90º Sensitivity -115dBm to -120dBm Camera Zoom 0.09Lux or 0.008 in slow Channel Bandwidth 2.5, 6, 7, 8MHz... -
Page 19: Connector Interfaces
2. RX 1. RX 3. TX 2. RX 3. TX 3. GND 5. GND 3. GND 5. GND Visual Engineering Technologies LTD Visual Engineering Technologies LLC Kemps Farm 24928 Genesee Trail Road Stanway Suite 100 Colchester Golden CO CO3 8NB...
