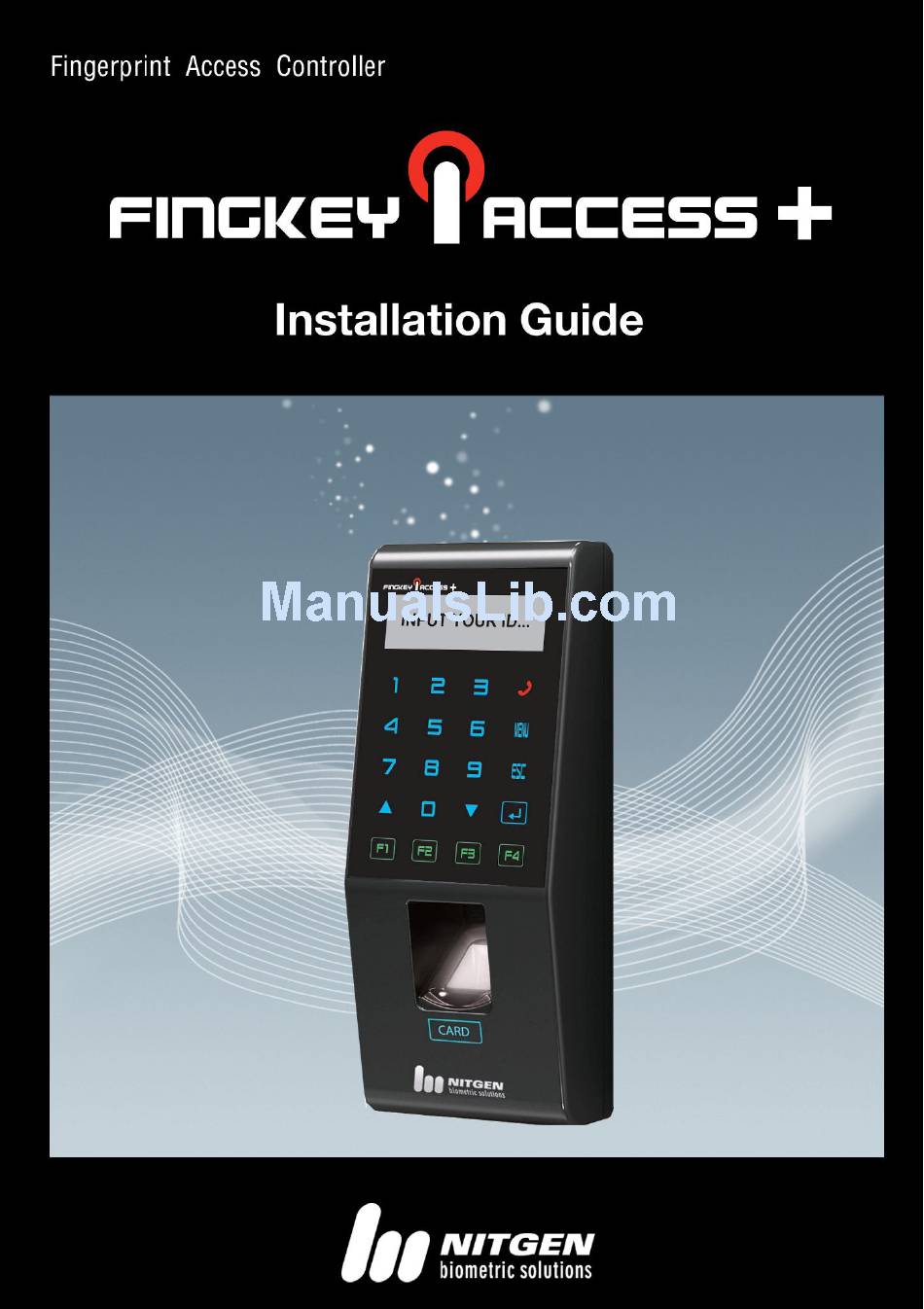

- Page 2 © Copyright 2009, NITGEN&COMPANY Co., Ltd. All rights reserved. Unauthorized reproduction of part or all of this manual’s content in any form is prohibited. Product specifications may change without prior notice to improve functionality. NITGEN&COMPANY NITGEN logo...
-
Page 3: Table Of Contents
Chapter 1 ................4 Before Installing ..............4 Product Package ............... 5 Chapter 2 ................7 Installation Environment ............7 Installation Environment ............8 Chapter 3 ................9 System Configuration ............9 Network Mode ................10 Standalone Mode ..............11 Chapter 4 ................12 Installation ................ -
Page 4: Chapter 1
Chapter 1 Before Installing Product Package... -
Page 5: Product Package
Product Package Item Shape Quantity Usage Terminal Access controller Installation Fixes the terminal. Bracket Adapter Supplies power to the terminal. Power Cord... - Page 6 Bolts Fixes the terminal. Fixes the installation bracket. Cable Door Top : 1ea Side : 2ea S/W CD AccessManager Professional Software CD...
-
Page 7: Chapter 2
Chapter 2 Installation Environment... -
Page 8: Installation Environment
Installation Environment Select the installation location considering the following, and get consent from the user if needed. ① This product should be installed indoors. If installed outdoors, the product must be protected from direct sunlight, snow, and rain. ② Cables must not be exposed and it is recommended that they be buried. -
Page 9: Chapter 3
Chapter 3 System Configuration Network Mode Standalone Mode... -
Page 10: Network Mode
Network Mode Terminals are connected by network. It can be remote control. Server PC Client PC Network (TCP/IP) Terminal Door opening S/W Lock Figure3.1 Network Configuration... -
Page 11: Standalone Mode
Standalone Mode One terminals is used independently. All settings such as user registration, deletion, and access control are performed in the terminal alone. Lock Door opening S/W Figure3.2 Terminal Configuration... -
Page 12: Chapter 4
Chapter 4 Installation Installation of Fixing Bracket Terminal Connection External Cable Connection Terminal Fixing... -
Page 13: Installation Of Fixing Bracket
※ Install the product in the following order: ① Install the fixing bracket. ② Install other devices (such as lock and door switch). ③ Connect the external cable. ④ Fix the terminal. Installation of Fixing Bracket ① Select a suitable installation location, and fix the fixing bracket with the four bolts provided with the product. -
Page 14: Installation Of Other Parts
Installation of other parts ☞ The following devices can be installed, refer to the table below for instructions. ① Locking device ② Door-opening S/W ■ Lock Types and Specifications Type Specifications Remarks Deadbolt Input: DC12V, Voltage output, Less than 1A Fail Safe/Secure Type Electronic Magnetic Input: DC12V,... -
Page 15: External Cable Connection
External Cable Connection ※ Install the following cables to the terminal. Group Color Green controller White Black Gray (Not use) EXIT White Sensor Door Blue Lock Brown Green Yellow Lock Orange Gray Phone0 Yellow Phone Phone1 Orange Black W_IN1 Gray W_IN0 Brown Wiegand... - Page 16 ■ Power & Door Control Cable Connection Electric Door-opening Deadbolt Strike Magnetic Lock ☞ Caution ① Connect the cable to the correct ports. ② If connecting the cable to an automatic door, use the contact point output and open the [JP2] port on the main board. In the factory setting, the [JP2] port is connected by the jumper.
- Page 17 Automatic Door Function Normal Normal Door Door Open Close Monitoring Open Open GND(Gray) Button Door Open Open EXIT(White) Button Button Door/Lock Door COMMON (Blue/Brown) Monitoring NO(Green) CONTACT_B Contact COM(Yellow) COMMON Contact Contact NC(Orange) CONTACT_A Contact ※ Normal Close(N.C.) = Contact B / Normal Open(N.O.) = Contact A JP2 is jumper for supplying power(12V) to the door lock.
- Page 20 4.3.2 Network Cable Connection - When connecting the network cable, connect to Modular Jack(RJ45). Cabling Housing Cable PIN No. Function RJ45, 8PIN...
-
Page 21: Terminal Fixing
Terminal Fixing ① After the cables are connected, tidy the rest of the cables at the rear of the terminal and place the terminal on the fixing bracket as shown in Figure 4.2. Figure4.2 Placing the Terminal on the Fixing Bracket ②... -
Page 22: Chapter 5
Chapter 5 After Installation After Installation... -
Page 23: After Installation
After Installation After finishing installation, check that it was done properly and plug in the power. Check if the lock and other devices are properly functioning as described below. For more information, see “FingkeyAccess Terminal Manual” and “AccessManager Professional User Manual.”... - Page 24 When operating the terminal in network mode, install Access Manager Professional and conduct the following test. ① Install the AccessManager Professional in the server PC. Register the administrator and set initial configurations. (For more information, see AccessManager Professional User Manual) ②...
