Summary of Contents for COPPER TRACES SEEK

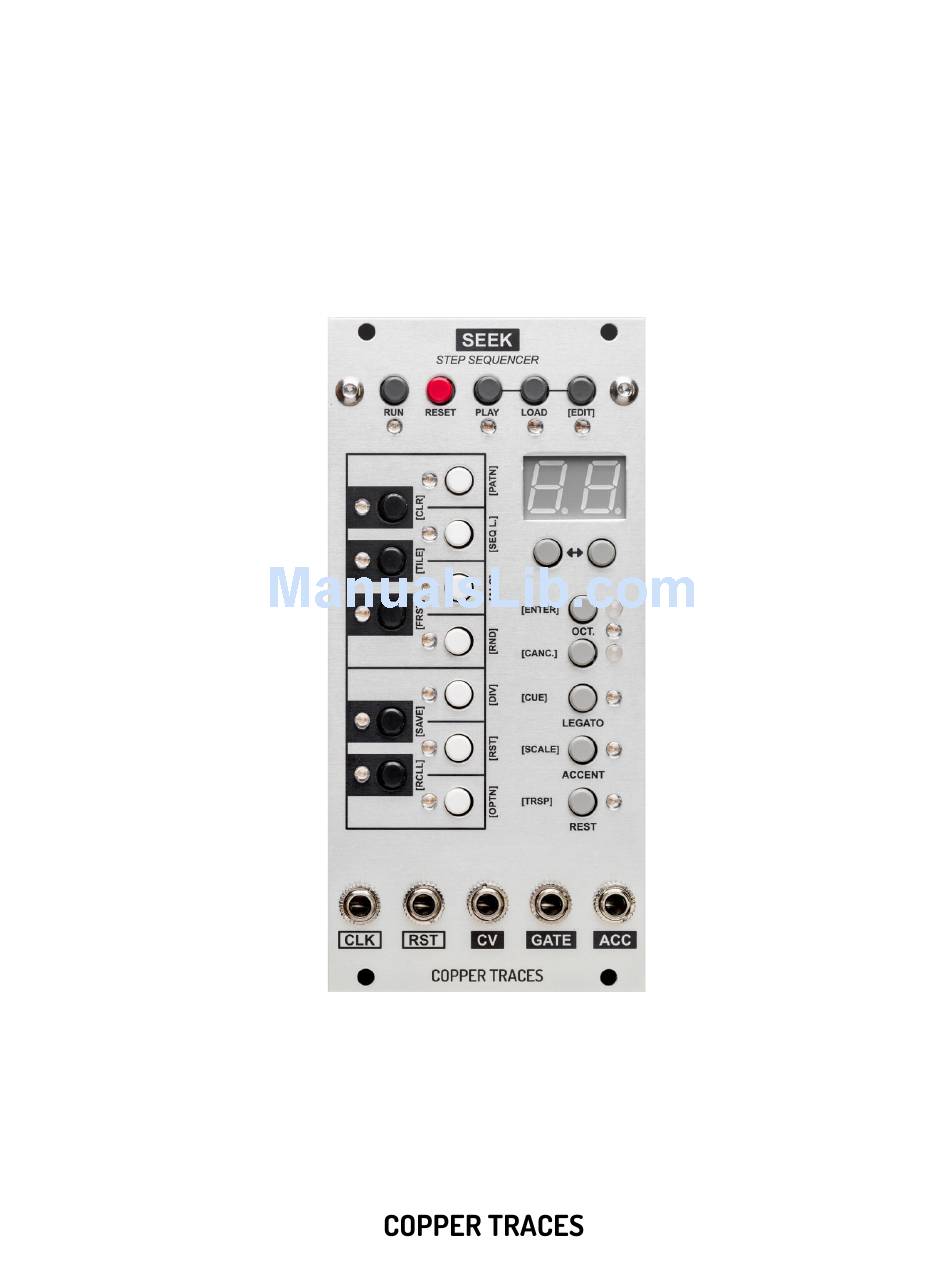

- Page 1 SEEK 64 Step CV / Gate STEP SEQUENCER MANUAL v01 for firmware version 1.02_04 www.coppertracesmusic.com...
- Page 2 UNIVERSAL FUNCTIONS The mode buttons always perform the same function regardless of other settings. Toggles the sequence between run and stop states RESET Sets the next step to be played to step one and resets the internal clock divider so the next clock pulse will always start with the beginning of step one PLAY Sets the mode to play...
- Page 3 PLAY MODE In play mode the display always indicates the current output. When running, the clock determines when a new step is displayed and the output is updated. When stopped, changes to the current step and output can be made manually. Changes can be made to the steps dynamically while running the sequence in play mode.
- Page 4 EDIT MODE In edit mode the keyboard and step property buttons can be used to select the corresponding function written in square brackets. Hold < or > then press [ENTER] Jump - Add or subtract eight from the value currently shown on the display each time enter is pressed Default {<...
- Page 5 [DIV] {< or > to select setting} {ENTER to apply} {CANC. to escape without change} Clock Divider - Divides the incoming clock by any power of two up to 64 01-64 [RST] {< or > to select setting} {ENTER to apply} {CANC. to escape without change} Reset Mode - Selects the destination for the reset input Reset - Sets the next step to be played to step one Run while High - Runs the sequence while high and stops it while low...
- Page 6 [FRST] {< or > to select action} {ENTER to apply} {CANC. to escape without action} First Step - Sets the new first note of the sequence by shifting all steps of the sequence (up to the sequence length) such that the selected step is now step one 01-64 [SAVE] {<...
- Page 7 [TRSP] {< or > to select setting} {ENTER to apply} {CANC. to escape without change} Transpose - Selects the number of octaves the sequence is shifted up or down -1 to 2 and {KEYBOARD NOTE to select setting and apply} Selects the number of semitones the sequence is shifted referenced from C C: add 0 semitones, C#: add 1 semitone ...
