MedLux Wall GPI Installation Manual

Non-mri led graphic panel illuminator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Non-MRI

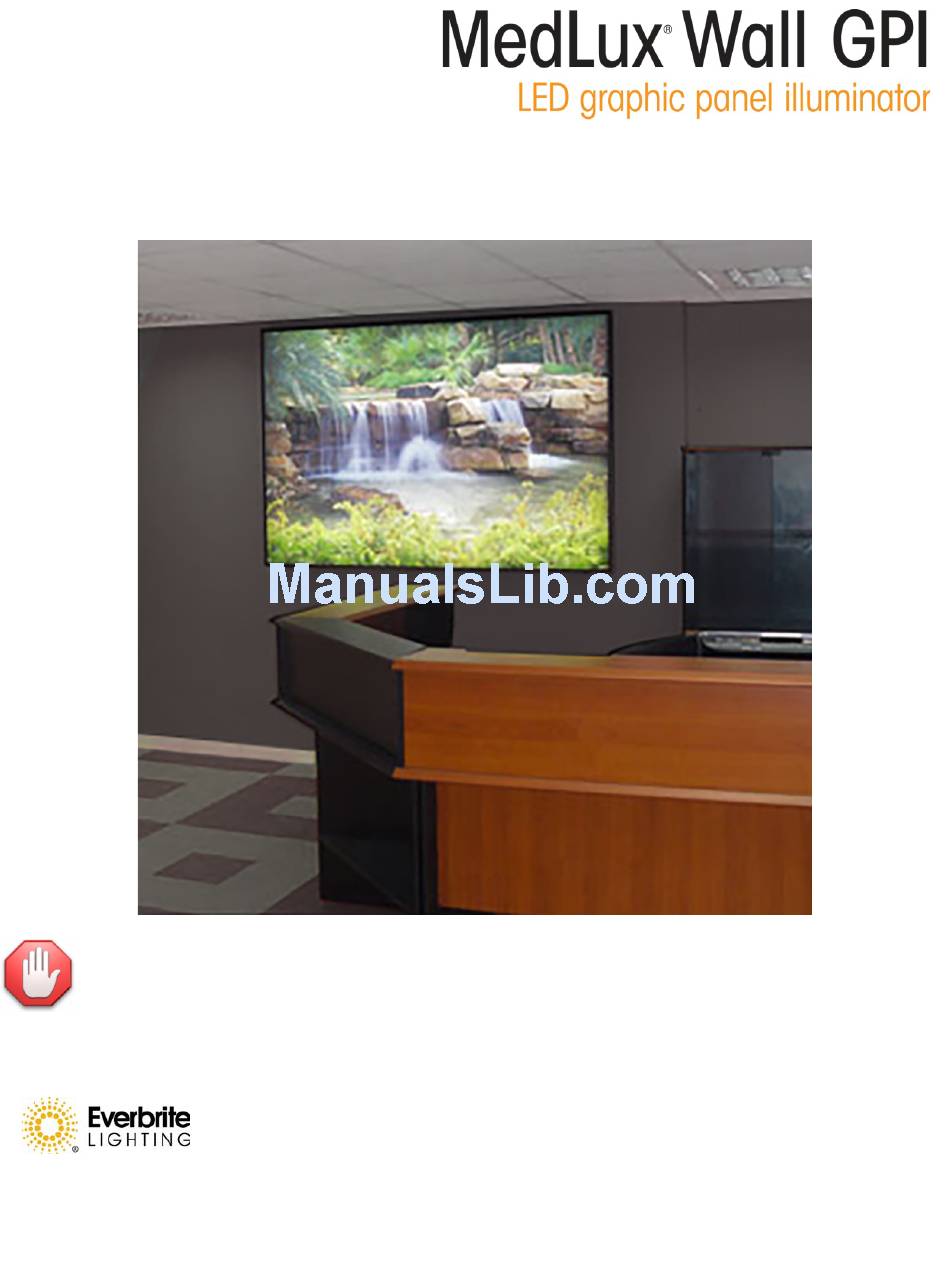

INSTALLATION MANUAL
TO AVOID DOING IRREPARABLE DAMAGE TO DRIVE CIRCUITRY
NEVER APPLY AC POWER DIRECTLY TO LED LIGHTBOXES!
th
4949 S. 110
Street
Greenfield, WI 53228
Phone: 800.610.6053
Fax:
414.529.7191
08May2017 Rev. 1
www.everbritelighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wall GPI and is the answer not in the manual?

Questions and answers

Summary of Contents for MedLux Wall GPI

  • Page 1 Non-MRI INSTALLATION MANUAL TO AVOID DOING IRREPARABLE DAMAGE TO DRIVE CIRCUITRY NEVER APPLY AC POWER DIRECTLY TO LED LIGHTBOXES! 4949 S. 110 Street Greenfield, WI 53228 Phone: 800.610.6053 Fax: 414.529.7191 08May2017 Rev. 1 www.everbritelighting.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1.0 Safety ................3 2.0 Approvals .

  • Page 3: Safety

    MedLux® GPI system per these instructions will void your warranty. There are no serviceable components in the MedLux® GPI system. Attempting to repair or alter the MedLux® GPI system in any way will also void your warranty. Always install the MedLux® GPI according to all local, state, and national codes.

  • Page 4: System Components - Supplied

    3.2 SYSTEM COMPONENTS - SUPPLIED The following components are included in the MedLux® GPI system purchased: • Class 2 rated LED Power Supply(ies) • MedLux® GPI Light Box • “Z” Bar Mounting Bracket(s) • Power Feed Cable(s) • Optional Seismic Event Retention Bracket •...

  • Page 5: Pre-Installation

    • The installation surfaces for the Power Supply(ies) are flat, clean and free of any debris or obstacles. 4.3 VERIFICATION BEFORE INSTALLATION 1. Each MedLux® Power Supply is intended to power only the MedLux® GPI System Component(s) as indicated in these instructions.

  • Page 6: Installation

    5.0 INSTALLATION 5.1 THE GPI POWER SUPPLY Figure 1: GPIw Power Supply (Non-MRI version) The power supply converts incoming electrical power down to 48 volts DC. Mount the GPI Power Supply(ies) according to the approved system layout documentation. The power supply assembly is intended for INDOOR USE ONLY.

  • Page 7: Graphic Panel Installation

    5.2 GRAPHIC PANEL INSTALLATION Figure 2: Wall GPI Light Box In some cases, the graphic panel(s) may be supplied and installed by the customer. See cover of this manual for an example of a typical panel installed. The instructions that follow will detail the installation process.
  • Page 8 To install or remove graphic panels from the GPI Light box(es), proceed as follows: For Installations Only these two set screws should be removed on the top & bottom “L” brackets Figure 3: Set Screws & "L" Bracket on Extrusion A GPI Box could weigh in excess of 100lbs.

  • Page 9: Mounting The Light Box

    5.2.4 Slide the graphic panel into the outer most channels of the top and bottom extrusions. See Figure 4. 5.2.5 Continue sliding the panel until it butts up to the right-side of the right extrusion of the light box. 5.2.6 Reinstall the left-side extrusion and tighten set screws.

  • Page 10: Site Clean-Up

    5.5.3 Lift evenly from both ends of the light box until it clears the “Z” bar supports attached to the wall behind the box. 5.5.4 Proceed to 5.4.1 6.0 SITE CLEAN-UP Ensure that all packaging materials, screws, tools, etc. are disposed of properly. 7.0 APPENDICES 7.1 Mounting Specification Drawing...

  • Page 11: Wiring Diagram
