THE QUALITY BRAND IN FANS
Minor design changes or otherwise may result in slight variations between the product illustrated and that which is
contained within this package
INSTALLATION AND OPERATION INSTRUCTION BOOK, REV 2.0
GLENDALE SERIES

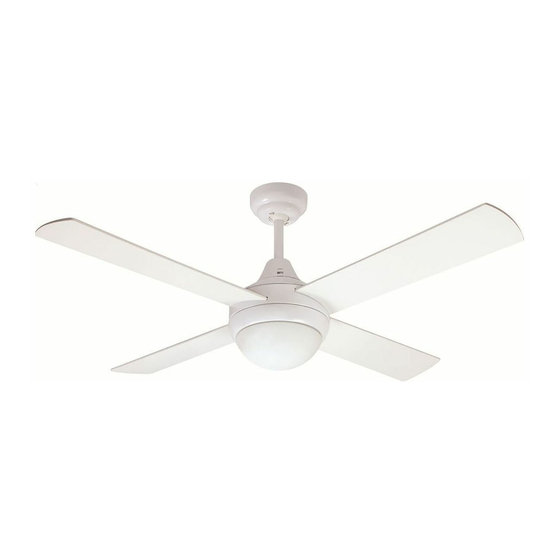

Models: FC182124WH, FC182124BC, FC182124RWH, FC182124RBC
CEILING FANS WITH LIGHT WITH OPTIONAL REMOTE CONTROL
Advertisement
Table of Contents
Summary of Contents for MERCATOR FC182124WH

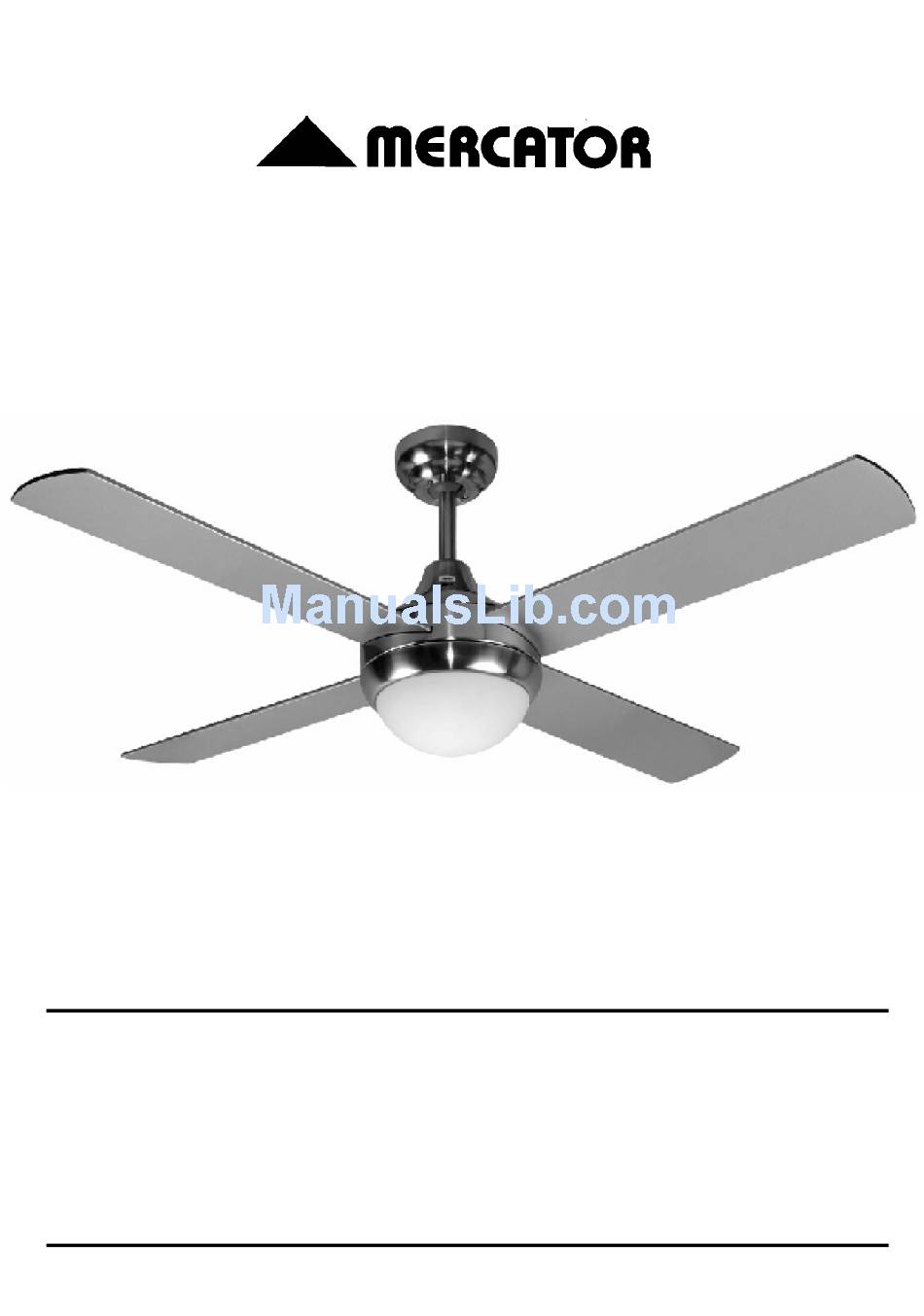

- Page 1 Minor design changes or otherwise may result in slight variations between the product illustrated and that which is contained within this package INSTALLATION AND OPERATION INSTRUCTION BOOK, REV 2.0 GLENDALE SERIES Models: FC182124WH, FC182124BC, FC182124RWH, FC182124RBC CEILING FANS WITH LIGHT WITH OPTIONAL REMOTE CONTROL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..................................1 SAFETY PRECAUTIONS ................................ 2 UNPACKING YOUR CEILING FAN ............................. 4 FAN INSTALLATION INSTRUCTIONS ..........................5 WALL CONTROLLER INSTALLATION INSTRUCTIONS ................... 7 WIRING DIAGRAMS ................................8 INFORMATION FOR LICENSED ELECTRICIAN AND FAN OWNERS ..............10 FAN OPERATION ................................. -
Page 3: Introduction
INTRODUCTION CONGRATULATIONS ON YOUR CHOICE Thank you and we are delighted you have chosen a MERCATOR ceiling fan for your home. Please read all instructions carefully before assembly and use. SAFETY NOTICES WARNING / CAUTION A WARNING / CAUTION notice denotes a hazard. It calls attention to an installation procedure, operating procedure, maintenance procedure, or the like, that if not correctly performed or adhered to, could result in damage to this appliance, personal injury or death. -
Page 4: Safety Precautions
Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Mercator Lighting assumes no liability for customer’s failure to comply with these requirements. SAFETY WARNINGS 1. - Page 5 Mercator ceiling fans. Do not use solid state wall controllers. 11. This fan is compatible with some HOME IT systems. Please contact Mercator for further details. 12. Do not remove the fan from the ceiling after installation.
-
Page 6: Unpacking Your Ceiling Fan
INSTRUCTION BOOK • Use of an unapproved wall controller voids the warranty. Therefore do not control the operation of this fan from any wall controller that is not approved by Mercator for use with this fan. • Do not use solid state controllers. -
Page 7: Fan Installation Instructions
FAN INSTALLATION INSTRUCTIONS • Make sure electricity is turned off at the main power box before commencing work. Turn off the power by removing fuse or turning off circuit breaker before installing the fan and replacing the lamps. • The lowest point on the fan blade must be at least 2.1 metres (7 feet) from the floor. •... - Page 8 FAN INSTALLATION INSTRUCTIONS 5. Only non-dimmable 12W (max) B22 Compact Fluorescent Lamp (CFL) must be used. The recommended size of CFL is 91mm x 46mm. Install two CFLs into the lamp holders. Always use a pair of gloves or keep your hands clean when installing or replacing bulbs.
-
Page 9: Wall Controller Installation Instructions
WALL CONTROLLER INSTALLATION INSTRUCTIONS • Do not mount wall controller near heat producing equipment. • The wall controller provided is designed to be connected with the ceiling fan supplied in this package only. Other uses may cause personal injury or fire hazard. •... -
Page 10: Wiring Diagrams
WIRING DIAGRAM FOR FAN CONTROLLED WITH WALL CONTROLLER • ONLY install the wall/remote controller kit that comes supplied or recommended by MERCATOR. DO NOT control operation of fan or light with wall controllers other than those approved by MERCATOR as this will void warranty. - Page 11 WIRING DIAGRAM FOR FAN CONTROLLED WITH REMOTE CONTROLLER • ONLY install the wall/remote controller kit that comes supplied or recommended by MERCATOR. DO NOT control operation of fan or light with wall controllers other than those approved by MERCATOR as this will void warranty.
-
Page 12: Information For Licensed Electrician And Fan Owners
INFORMATION FOR LICENSED ELECTRICIAN AND FAN OWNERS Please read fault finder before calling for warranty. Check that mains circuit breakers are in the ON position. 1. FAN WILL NOT START Check that isolation wall switch is in the ON position. III. -
Page 13: Fan Operation
FAN OPERATION A ceiling fan is an environmentally smart choice when it comes to cooling as well as helping to warm your room. You should see a reduction in both cooling and heating costs by regular use of your fans. SWITCHING SUMMER/WINTER SETTING Make sure fan is off and blades have stopped spinning before changing the summer/winter switch. -
Page 14: Remote Control Operation
REMOTE CONTROL OPERATION The instructions below apply only to remote controller that comes with FC182124R series ceiling fans. 1. CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the CODE SWITCH code used for both transmitter and receiver is exactly the same;... -
Page 15: Important Facts
IMPORTANT FACTS All electric motors, including fan motors make some noise and may feel hot to touch - this is not a fault. Ceiling fans tend to move during operation as they are not generally rigid-mounted. Rigid mounted ceiling fans generate excessive vibration and stress on their mountings. Movement of a couple of centimetres is quite normal and does not suggest the fan will fall down.
