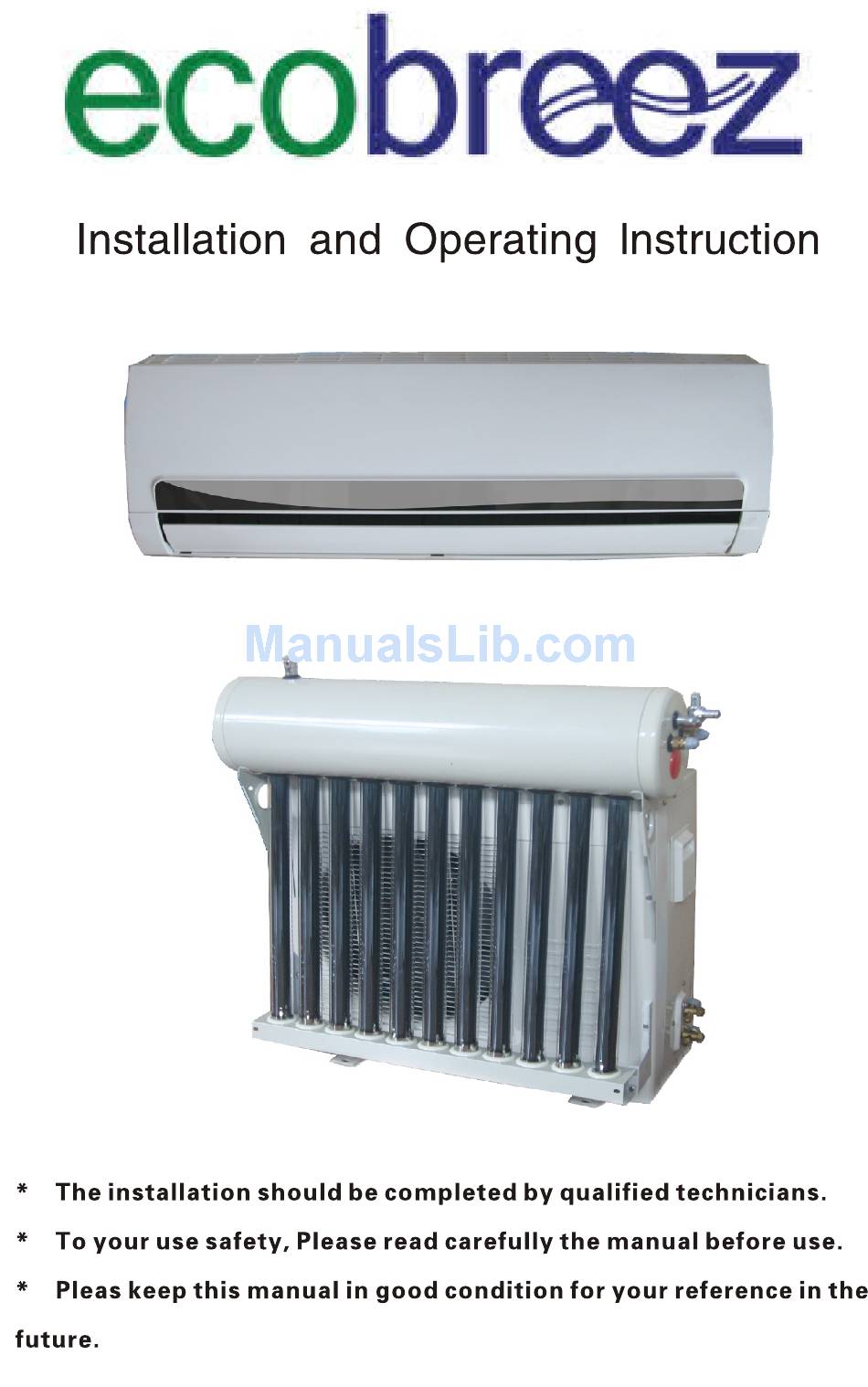

ecobreez TKE(R)26GW Installation And Operating Instruction

Rated cooling capacity 2600w
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TKE(R)26GW and is the answer not in the manual?

Questions and answers

Summary of Contents for ecobreez TKE(R)26GW

  • Page 2 We appreciate your purchasing our solar air conditioner. We will serve for you loyally, Our hybrid solar air conditioner is manufactured under the strictest quality control, and is provided with excellent performance and reliable security property. For protecting your rights and interests, for guaranteeing the eximious performance of our hybrid solar air conditioner to function normally, and for ensuring you receiving the better service, we plead you to necessarily advert to the following items.
  • Page 3 The Performance Characteristics of the Solar Air Conditioner The Perfornance Parameter III. The Application Notice The Security Specifications The Examination before Application The Optimum Operation The Operation Temperature Range The Name of Each Part of the Solar Air Conditioner Operation Manual The Maintenance VII.
  • Page 4 The product adopts both solar and electric energy. The solar energy is the supplementary. According to the fluid mechanics principle and the photo-electrical complementary effect, the solar air conditioner saves energy greatly. The compressor, which is of the international famous brand, cools and heats powerfully, operates most smoothly, and runs on low load.
  • Page 5 ZKFR-26GW ZKFR-26GW/A(R410a) Item/Mode TKE(R)26GW ZKF(R)-26GW/A Rated Cooling Capacity(W) 2600 2600 2900 2900 Rated Heating Capacity(W) 220V/50HZ/60HZ 220V/50HZ/60HZ Rated Power Input(V/HZ) Rated Cooling Power Input(W) 650~770 650~770 Rated Cooling Input Current(A) 2.95~3.50 2.95~3.50 Max Cooling Power Input(W) Max Cooling Input Current(A) 4.38...
  • Page 6 ZKFR-26GW ZKFR-26GW/A(R410a) Item/Mode ZKF(R)-32GW ZKF(R)-32GW/A 3200 3200 Rated Cooling Capacity(W) 3500 3500 Rated Heating Capacity(W) 220V/50HZ/60HZ 220V/50HZ/60HZ Rated Power Input(V/HZ) Rated Cooling Power Input(W) 780~940 780~940 Rated Cooling Input Current(A) 3.55~4.27 3.55~4.27 Max Cooling Power Input(W) 1180 1180 5.33 5.33 Max Cooling Input Current(A) 780~950 780~950...
  • Page 7 ZKFR-35GW, ZKFR-35GW/A(R410a) Item/Mode ZKF(R)-35GW ZKF(R)-35GW/A 3500 3500 Rated Cooling Capacity(W) 3800 3800 Rated Heating Capacity (W) 220V/50HZ/60HZ 220V/50HZ/60HZ Rated Power Input (V/HZ) Rated Cooling Power Input(W) 800~1025 800~1025 Rated Cooling Input Current(A) 3.64~4.66 3.64~4.66 Max Cooling Power Input(W) 1280 1280 Max Cooling Input Current(A) 5.83 5.83...
  • Page 8 ZKFR-50GW, ZKFR-50GW/A(R410a) Item/Mode ZKF(R)-50GW ZKF(R)-50GW/A 5000 5000 Rated Cooling Capacity(W) 5500 5500 Rated Heating Capacity (W) Rated Power Input (V/HZ) 220V/50HZ/60HZ 220V/50HZ/60HZ Rated Cooling Power Input(W) 1150~1300 1150~1300 Rated Cooling Input Current(A) 5.23~5.91 5.23~5.91 Max Cooling Power Input(W) 1600 1600 Max Cooling Input Current(A) Rated Heating Power Input(W) 1200~1350...
  • Page 9 ZKFR-60GW, ZKFR-60GW/A(R410a) Item/Mode ZKF(R)-60GW ZKF(R)-60GW/A Rated Cooling Capacity(W) 6000 6000 Rated Heating Capacity (W) 6600 6600 Rated Power Input (V/HZ) 220V/50HZ/60HZ 220V/50HZ/60HZ Rated Cooling Power Input(W) 1350~1560 1350~1560 Rated Cooling Input Current(A) 6.14~7.09 6.14~7.09 Max Cooling Power Input(W) 1950 1950 Max Cooling Input Current(A) 8.86 8.86...
  • Page 10 ZKFR-72GW, ZKFR-72GW/A(R410a) Item/Mode ZKF(R)-72GW ZKF(R)-72GW/A Rated Cooling Capacity(W) 7200 7200 Rated Heating Capacity (W) 7900 7900 Rated Power Input (V/HZ) 220V/50HZ/60HZ 220V/50HZ/60HZ Rated Cooling Power Input(W) 1700~1900 1700~1900 Rated Cooling Input Current(A) 7.73~8.64 7.73~8.64 Max Cooling Power Input(W) 2375 2375 Max Cooling Input Current(A) 10.8 10.8...
  • Page 11 Keep the switch of solar air conditioner out of the reach of children in order to prevent children from playing with the electricity. Please switch off the power in the thunderstorm weather; otherwise the thunder would cause damages to the machine. Please switch off the power when the machine is not in use, or when you leave the room for a long time.
  • Page 12 *Please check if the grounding wire is rightly connected or not. *Please check if the air strainer is fixed. *If the solar air conditioner is idle for a long time, please rinse the strainer before start-up. For more details, please consult the chapter Repair and Maintenance. *The inlet opening and the outlet opening of the indoor and the outdoor units should be unblocked.
  • Page 13 Notice: The graphic example is based on the standard type solar air-conditioner.Thus, it may be different in appearance of that of yours. Indoor unit Face plate Air inlet Power plug Air filter Left and right Upper and lower wind direction wind direction guiding plate...
  • Page 14 Remote Control Function Remote Control Signal Transmitter Operation Display Room Temperature Setting Button Operation Mode selection Button OFF/ON Button Fan Speed Selection Button Timer Button Airflow Direction Selection Button Remote Control Signal. Make sure it is not obstructed Maximum distance 8m. Signal received sound.
  • Page 15 A comfortable room condition will be Realized simply by pushing button Au -tomatic Operation To start operation: Push button On/Off When it displays (Automatic Operation) mode,the air conditioner runs automatic co -ntrol and an optimum room temperature is controlled and an realized. To start operation: Push On/Off button Push mode button to set Automatic...
  • Page 16 Using Manual Control for cooling,dehumi Dification of heating operation: push On/Off button. Select operation mode and push Mode button,the operation mode Slightly adjust temperature push Mode to select operation mode. Or wind direction. Is changed in sequence of (Automatic Operation) (Cooling) (Dehumidification) (Heating) (Automatic Operation).
  • Page 17 To Change wind speed,push button. The indoor fan will change its wind speed in a sequence Of(Automatic) (Week) (Middle) (High) (Automatic)each time when you push the button. To change wind direction up and down push button. The swing blade will change its wind direction a sequence of(Automatic) (1) (2) (3) (4) (5) (Automatic)each time when you push the button.
  • Page 18 Please cut off the electricity before repair and maintenance. (1) Please dismount the exhaust cap on the insulating tank. (2) Take out the level meter; observe the liquid level mark on it. (3) Please contact with the local distributor or the solar air conditioner after sale service center in time if the liquid is insufficient.
  • Page 19 Foreplate of the Indoor Unit Air Filter Screen Auto Run Button Wipe the outer surface with soft cloth and clean water. Wipe the outer surface with soft cloth and neutral ambulant. Attention: Hot water above 40 may cause deformation or discoloration to the solar air conditioner s s urface.
  • Page 20 The drainpips is without a crack or bruise. Rinse the filter screens and reinstall them. Switch on the air conditioner after the electricity is connected for above half and hour. Never place inflammables or explosive goods such as paint, shampoo. Etc near the air conditioner.
  • Page 21 If your solar air conditioner cannot work normally,please check the following items before maintenance. If the faclts cannot be solved, please contact our Special Repair Center or the distributor. Phenomenon Possible Reason Solution 1.Power failure 1.Re-connect the power supply 2. The leakage breaker tripping 2.Contact the repair center 3.
  • Page 22 1. When you start up or shut down the solar air conditioner,sometimes you will hear sizzle sound, which is the flowing sound of the cooling agent, and is not a malfunction. 2. The solar air conditioner cannot restart at once after stops, though it is switched on. Within 3 minutes, the compressor will not run for the cooling, dehumidifying and heating.
  • Page 23 Warning Solar air conditioner must be installed by the professionals. Do not install by yourself according to thisinstruction booklet. In order to install it correctly,please first read the content of InstallationP art . Thein stallation of th is so larai r co nditioner sh ouldbe in GB17790 National Standard Room Air Conditioners accordance with the stipulation of Installation Criterions...
  • Page 24 fuse according to the maximum of the electric power consumption, which comprises 1.5 to 3 times of the maximum current of the solar air conditioner and the current of other electric appliances. 4. The power cord should be provided with effective ground wire. If not, the instagller should refuse to install and clearly explain.
  • Page 25 The maximal electric current of the solar air conditioner refers to the maximal input electric current, which is printed on the brand of the indoor unit. The maximal electric current of the circuit refers to the total summation of the maximal electric current, which comprises the maximal electric current of the solar air-conditioner and the maximal electric current of other appliance.
  • Page 26 Outdoor unit should be installed on the solid foundation, because the infirm foundation will increase noise and libration. Please ensure that no barrier blocks the vent. At the seas ide, please do not install the outdoor unit at a high altitude where the sea wind is more forceful.To ensure the fan work normally, the solar air conditioner should be arranged tightly upon the wall.
  • Page 28 1) As shown in the following picture, pipelines are connected in five directions with the indoor unit. When the pipelines are connected in direction, please adopt the saw to open a preformed groove on the panel. When the pipelines are connected in direction,please adopt the saw to open a preformed grove under the panel.
  • Page 29 lower than the height of the hole in the . The aim is to ensure the condensate flowing out of the pipeline conveniently.
  • Page 30 4) Please install the pipe of the indoor unit according to the direction of the wall hole; the outflow pipe, the cable line, and the indoor unit should bundled by an adhesive tape. The outflow pipe is below the other two. 5) Lead the affixed pipes going through the wall bushing, and hang up the indoor unit on via the top hooks,the bottom long channels of the indoor unit is shown in the following picture.
  • Page 31 3) Install the insulating tank on upper part of the insulating tank supports.(As shown in the following picture) 4) Insert the vacuum tubes into the insulating tank orderly, and fix the bottom of the vacuum tube in the bracket holes.(As shown in the following picture) 5) Install the front grill lon the tank support of the outdoor unit, and then fix them with bolts.(As shown in the following picture)
  • Page 32 Solar Air Conditioner Installation 4. Tube Butt 1) Connect one end of the outflow extended pipe to the outflow pipe head of the indoor unit. (As shown in the following picture) 2) Release the nitrogen filled in the radiator of the indoor unit when the air conditioner leaves the factory.Dismount the cover cap of the thick connecting pipe and the cover cap of the thin connecting pipe of the radiator.
  • Page 33 connecting pipes, screw one end of the thick connecting pipe and one edn of the thin connecting pipe on the stop valves of the low pressure and the high pressure connecting pipes, and tighten the screws of the thick and thin connecting pipes by a spanner. (As shown in the following picture) Connecting Pipes of the Solar Insulating Tank...
  • Page 34 Solar Air Conditioner Installation 5. Empty the air in the insulating tank and indoor unit completely If air, water or other impurity, which is mixed in the air conditioner system, will lead to the working current exceedingly ligh, the capillary blocked, etc which will affect the performance of the air conditioner .
  • Page 35 Empty the connecting pipe of the indoor unit Please follow the instruction to eliminate the air in the insulation tank. (As shown in the picture) Please adopt the wrench to dismount the B1 and the B2 cut-off valve bonnets of the outdoor unit Please adopt the wrench to loosen the stud type copper sealing appurtenance half a circle upon the air pipe of B2cut-off valve.
  • Page 36 Solar Air Conditioner Installation Notice: When the pipe line is extended, discharge the air in the connecting pipe with refrigerant gas, which is form the outside of the system . And then, discharge the redundant refrigerant in degassing metnod. model Installation height of the indoor unit and the ZKF(R)-26GW ZKF(R)-32GW...

  • Page 37: Indoor Unit

    Outlet Box Make sure that the indoor- Fix Screw outdoor connecting wire is fixed by this wire clamp and the cable jacket is held down. Triple Core Wire Triple Core Wire Twin Core Wire Yellow/green Bule Red purple Orange Black Power Auxiliary Heater wiring...
  • Page 38 INDOOR AND OUTDOOR WIRING DIAGAM Blue Brown Yellow INDOOR UNIT OUTDOOR UNIT Cooling and heating model Simple Principle Circuit Diagram of the Solar Air Conditioner Cooling only model Cooling and heating model...
  • Page 39 Packing List Heat Collector Packing List Name unit remark Insulated Tank Tank Collector Tube Tube 10pcs 11pcs (ZKF(R)-60/72GW) Tank right and left support Each1 Vacumm tube bracket Air vent cap Support bowl Rbbber ring connecting pipe Plastic Tee joint Pvc drain tube Indoor unit packing list Name unit...
  • Page 40 ZKF(R)-72GW Name unit p cs remark Outdoor unit unlt Low pressure connecting TP2M 15.88*1.0*4000 p cs pipe TP2M 9.52*0.75*4000 p cs high pressure connecting pipe T8*200 p cs Platic belting p cs PVC 16*1500 Draining pipe p cs Penetration ABS 60...
