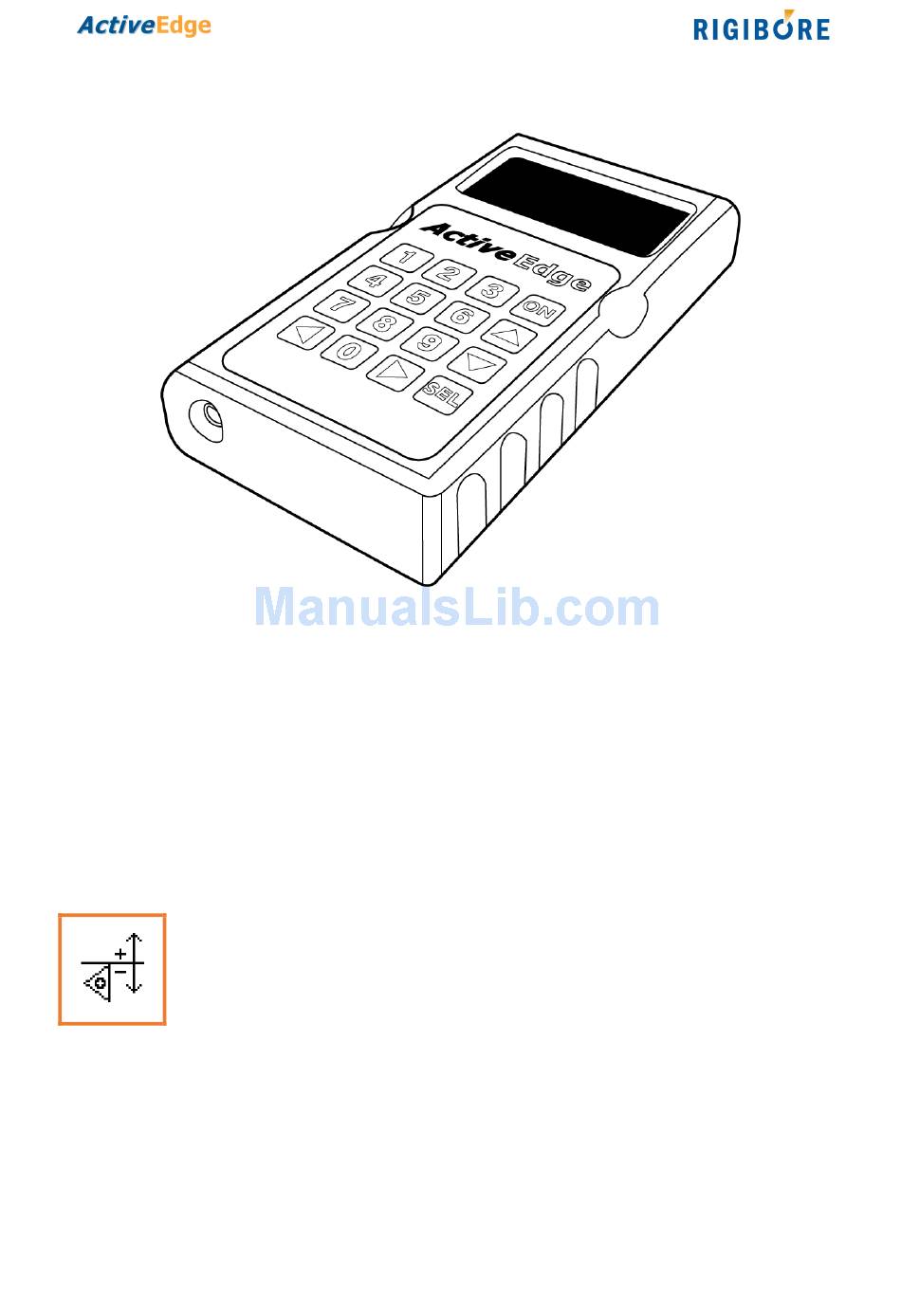

AE043 - ActiveEdge Remote Control handset - Instructions for use
The AE Remote Control is a battery operated, wireless handset that allows micron
adjustments to be made to any ActiveEdge boring tool. It also incorporates a number of
useful tool maintenance and data acquisition functions.
Switch on the Remote Control
Press and hold down the ON button until the ActiveEdge splash screen appears.
The splash screen is quickly replaced by the main menu, which contains all of the tool
control functions described below. Press the left and right arrows to navigate to the
desired function and press SEL. The up, down, left and right buttons can be used at any
time to navigate between screen items.
Adjust cutting edges
Send an instruction to adjust up to five cutting edges on one tool.
Use the keypad to enter the tool ID of the tool you wish to adjust, then press SEL to
continue to the next screen. A unique tool ID number is clearly etched onto every
ActiveEdge tool.
If the tool ID is being entered for the first time, you will be prompted to enter the
number of AE cartridges on the tool. The Remote Control records this information so
that in future the correct number of cartridges are automatically displayed on the tool
graphic.
01-05-2017
1
Advertisement
Table of Contents
Summary of Contents for RIGIBORE AE043
- Page 1 AE043 - ActiveEdge Remote Control handset - Instructions for use The AE Remote Control is a battery operated, wireless handset that allows micron adjustments to be made to any ActiveEdge boring tool. It also incorporates a number of useful tool maintenance and data acquisition functions.
- Page 2 Enter the desired micron adjustment on diameter for each cartridge. The direction of adjustment can be changed by selecting ‘+’ and pressing SEL. A plus value will increase the cutting diameter and a minus will decrease the cutting diameter. On multiple cartridge tools, use the up and down arrows to navigate between cartridge adjustment values.
- Page 3 Note: It is important to regularly update the cartridge database on the SD card. The most recent version can be downloaded from the Rigibore website using the link below. It is essential to do this if new cartridges have been purchased or after a cartridge has been repaired.
- Page 4 Get cartridge IDs Confirm that the tool memory corresponds with the serial numbers of the cartridges fitted to the tool. Enter the tool ID and press SEL twice. When a wireless connection with the tool has been established, the handset will display the serial numbers of the cartridge calibration parameters currently held in its memory.
