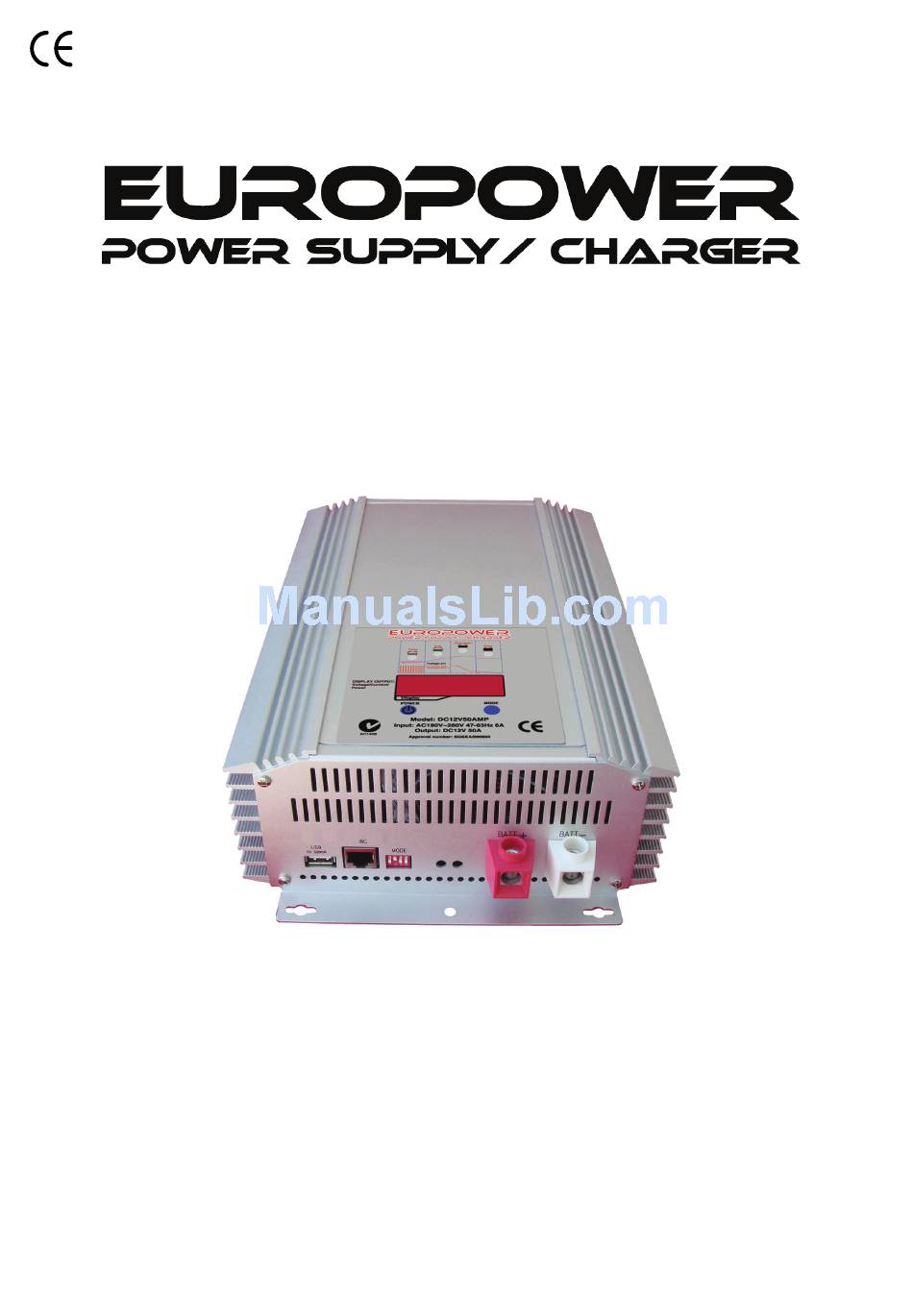

- Page 1 LVD EMC SAA Digital Battery Charger & Power Supply DC12V50AMP User Manual...
-
Page 2: Table Of Contents
Contents Important Safety Precautions………………………………………..2 Description, Features and Warranty………………………………….3 Remote Control…………………………………………….………...…4 Intelligent Temperature Control……………………………..…….…..5 Panel Operation..……………………………………….….………..….6 Operating the unit as charger…………………………….………..7-10 Operating as a power supply…………………………….….…..… 11-14... -
Page 3: Important Safety Precautions
Important Safety Precautions Hazardous conditions may result of the charger is not installed or operated correctly. Please read the following instructions to prevent personal injury or damage to the charger. Battery Related • To reduce the risk of battery explosion, follow these instructions and those marked on the battery. •... -
Page 4: Description, Features And Warranty
Description Charger: This DC12V50AMP charger is used for charging lead acid batteries (AGM or GEL batteries). The DC12V50AMP charger can charge 12V batteries and range from 100AH to 500AH. The DC12V50AMP battery charger connects to an Alternating Current (AC) power of 230V/50Hz (Preset) or 115V at a frequency of 47 ~ 63Hz. -
Page 5: Remote Control
Remote Control 4-stage battery charger can be operated from the remote control. The user is relayed information and can control the output power on or off. The LED lights show the charging stage. The digital display shows the voltage, current and power (when pressing the MODE button on the panel will shown voltage - current –... -
Page 6: Intelligent Temperature Control
Intelligent Temperature Control CAUTION: Keep the charger in a well ventilated, cool and open area. Do not block the vent holes on the sides or the discharge openings of the cooling fan. The unit cooling system is fan forced convection cooling. When the unit reaches a certain load the fan will automatically start to keep the unit cool. -
Page 7: Panel Operation
Panel Operation Description: 1． USB Socket: Output Max. with DC5V 500mA 2． Remote Control Socket: Connected with wire remote controller to control the unit from a distance and to read the working status 3． Function Selection Switches: 4． DC Output Pos(+)： Connected to the battery Positive Pole 5．... -
Page 8: Operating The Unit As Charger
Operating the unit as a charger Charging Stages • NOTE- VOLTAGE READINGS ON NO LOAD FOUR STAGE CHARGING CURVE CHART Absorption Float Bulk Pulse Voltage(V) Current(A) Four Stage Charger Descriptions: STAGE 1- PULSE CHARGE (This feature is switched off, consult page 6 for function selection switch settings to change) There are 5 minutes rated voltage pulse charging. -
Page 9: Preparing The Charger For Operation
(+) connection(s) and black (-) for negative connection(s) The specification of DC output cables for various chargers models were as followings: MODEL Specification Dimensions（MM） DC12V50AMP 8AWG 1600 PREPARING THE CHARGER FOR OPERATION Selecting AC input voltage The unit is preset to operate on AC input voltage 230V AC/50Hz for use in Australia. If you want to change the existing AC input voltage to 115V AC/60Hz, please use the switch on the Rear panel (Please see the below picture). - Page 10 Charging of an installed Battery Follow these steps when the battery is installed in a vehicle. A spark near a battery may cause battery explosion. For safety and to reduce the risk of spark near the battery: 1. Position AC and DC cords to reduce risk of damage by hood, door or moving engine parts 2.
- Page 11 Unit requires minimal maintenance and caring if the unit is used within guidelines, Ensure that unit is free of dirt and dust on the casing and only clean by using damp cloth. Digital battery charger specifications Model DC12V50AMP Voltage 200~240V AC Input...
-
Page 12: Operating As A Power Supply
To adjust the output of voltage, adjusts V on the front panel and through the ADJ hole of VR to obtain the voltage value which the user needs, the scope of DC12V50AMP output voltage can be Adjusted range is from 30%~10%, please refer “Specification form” (Page 10 or 11) in detail. -
Page 13: Front Panel
Panel Operations Front panel Rear panel 3 4 5 Top Panel 1. USB Socket: Output DC5V 500MA 2. Wired Remote socket: Through 8 core cable long distance control the machine 3. VR V．ADJ: Output voltage regulating VR 4． VR A. ADJ: Output current regulating VR 5. - Page 14 Cables To avoid polarity errors and possible damage, never use wires of only one color. Use red insulated wire(s) for positive connection(s) and black for negative connection(s) The output DC Cable selection form Wire Cable Cross Each 1A loss voltage A）Suggestion of the maximum current Gauge Section...
-
Page 15: Specifications
Do not spray cleaning liquid directly to the machine to prevent leakage of the internal damage to the machine. Specifications AC/DC Switching Power Supply DC12V50AMP Input Voltage AC230V or 115V...
