Specifications: (typical @25º C)
Audio
Bandwidth:
Crosstalk:
Dynamic Range:
THD:
Video
Bandwidth:
Crosstalk:
CHANNEL VISION
Limited Warranty
hannel Vision Technology will repair or replace any defect in material or
C
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not
supplied by Channel Vision Technology, or failures due to accident, misuse, abuse,
or alteration of the equipment. This warranty is extended only to the original
purchaser, and a purchase receipt, invoice, or other proof of original purchase date
will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-
0288 toll free. A Return Authorization number must be obtained in advance and
can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights (which
vary from state to state). If a problem with this product develops during or after the
warranty period, please contact Channel Vision Technology, your dealer or any
factory-authorized service center.
20-20kHz
-90 dB
6.0 Vp-p
0.01%
DC-20MHz
-60 dB
Specifications subject to change without notice.
500-059 rev E
Aria
By Channel Vision
Aria
By Channel Vision
A4601
A4601R

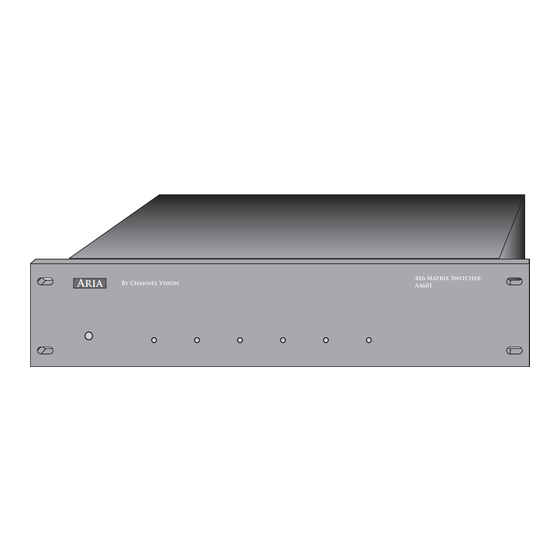

4x6 Matrix Switcher
4x6 Matrix Switcher
A4601
4x6 Matrix Switcher
A4601
By
Advertisement
Summary of Contents for Aria A4601
- Page 1 Specifications subject to change without notice. Aria 4x6 Matrix Switcher By Channel Vision A4601 CHANNEL VISION Limited Warranty hannel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from the date of original purchase.
- Page 2 Using the A0501 remote control... The A0501 is designed to allow you to control your A4601 without having to A4601/A4601R touch the buttons on the A0127. Simply point the A0501 remote control at the IR sensor located at the bottom of the A0127 and press the desired button.
- Page 3 On the A0127, the Pwr Mute button flashes as IR Connecting a standard IR repeater to the A4601... A standard information is received. IR repeating device may be connected directly to the A4601 allowing the unit to be controlled from a learning IR remote. The connection is similar to the wiring configuration shown above for the A0127, except there are only three wires as shown below.
- Page 4 Power switch Sat radio Each zone is controlled through the A0127 keypad which connects to the RJ45 jacks on the rear panel. DVD player See page 6 for connection details A4601 Re ear Panel CD player 1A/250V Channel Vision A4601...
